Get Quote

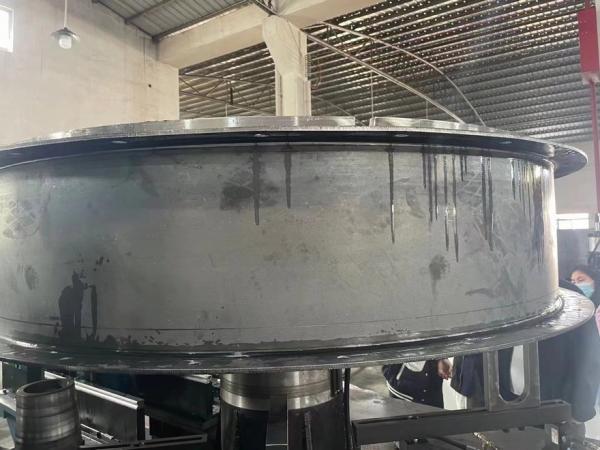

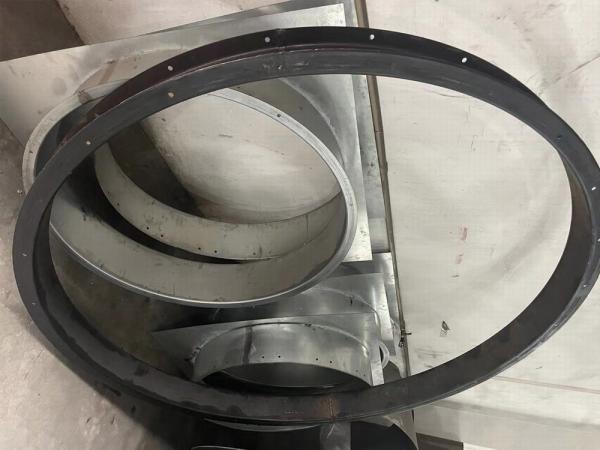

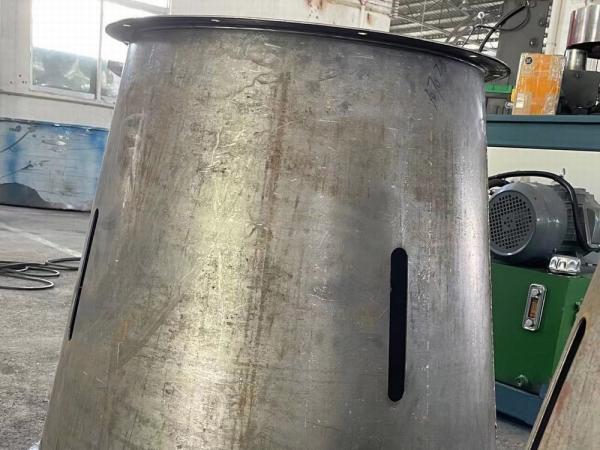

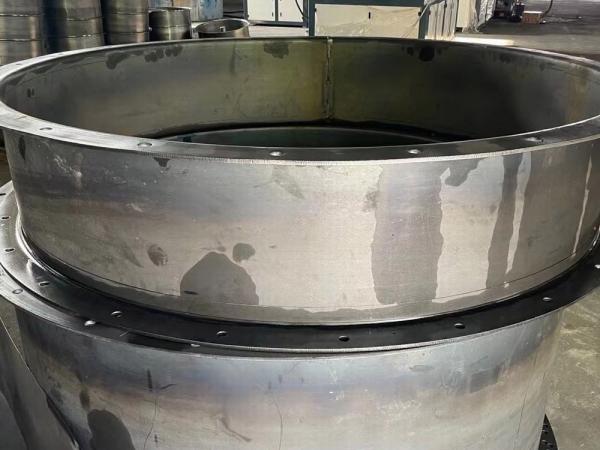

The machines is specially design for the ventilation industry especially for large diameter. they are suitable for processing of the components for ventilation, modular chimneys, flanging, beading, marking of several pieces

This series of machine has resolved the problems and limitations that exist in the traditional manufacturing method, including the intense work required for manual operation, inconsistency in products, low efficiency in production and the backwardness of the production technology.

This machine have introduced the user friendly advanced numerical program-control technology, which enables one person to control several machines at one time. It has largely reduced the cost of production and improved the efficiency and effectiveness, which is the best option for mass production.

---Motor with inverter.
---Hydraulic ejector for opening or closing expansion tool.
---Ribbing unit to give stiffness to ferrule.
---Flanging unit.
---Punching unit equipped with brushless motor for automatic positioning.

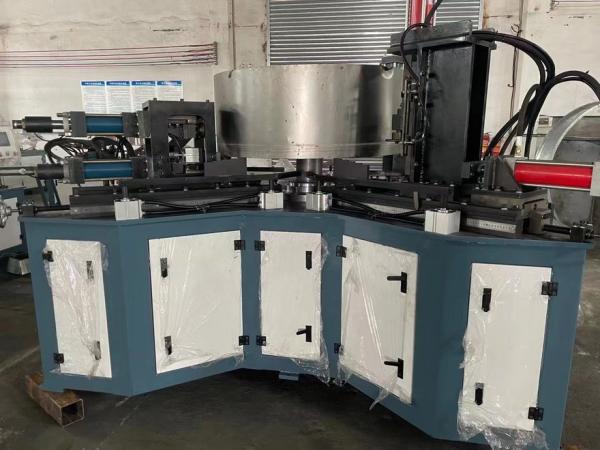

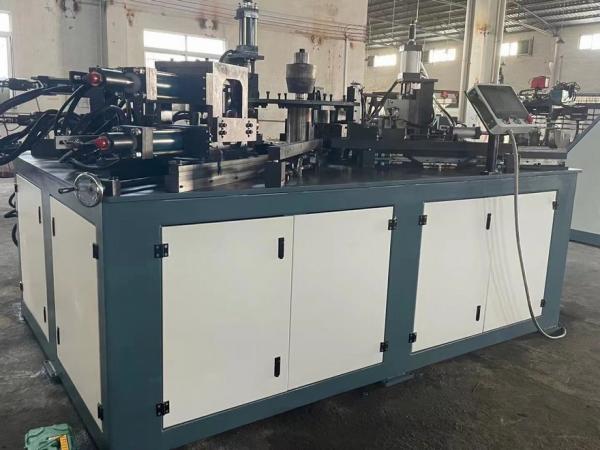

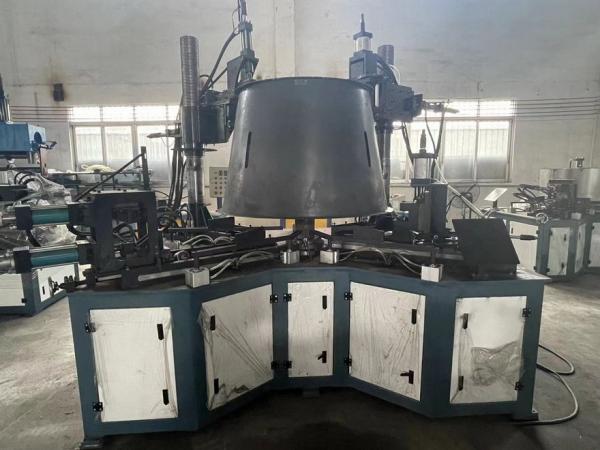

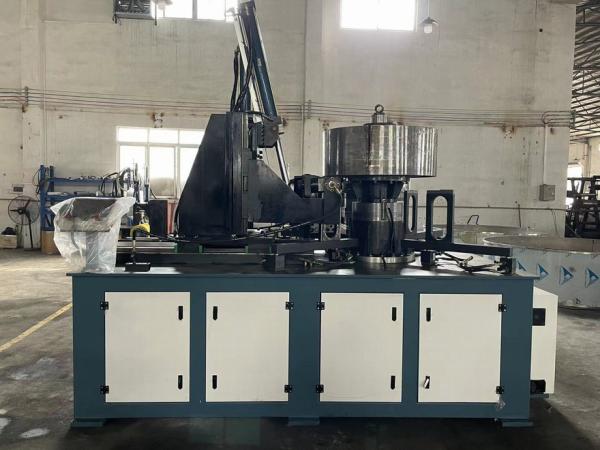

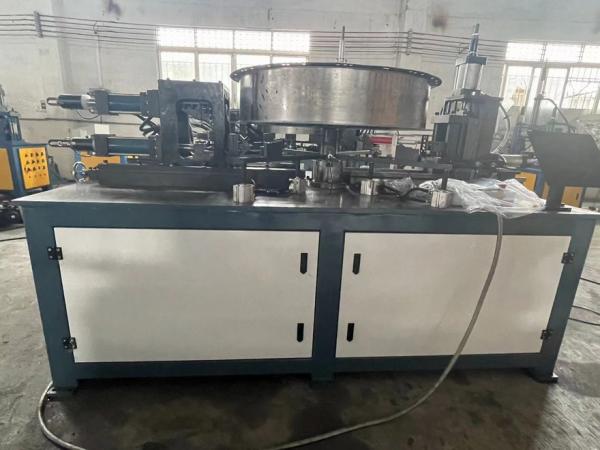

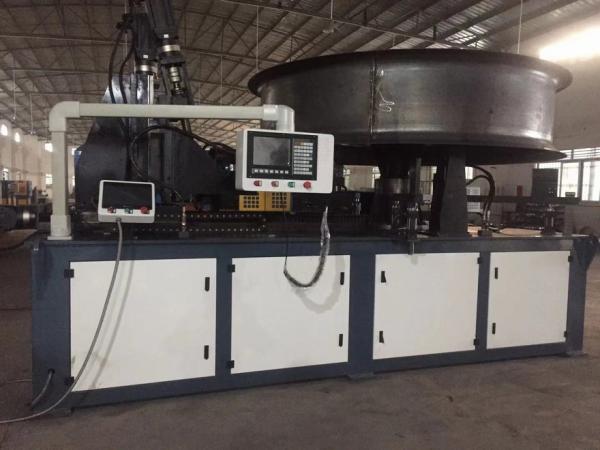

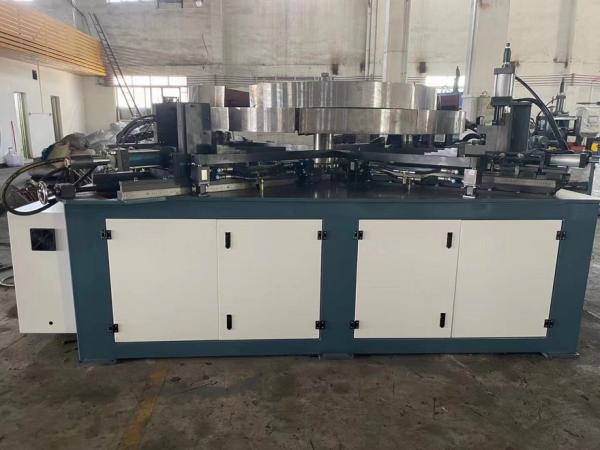

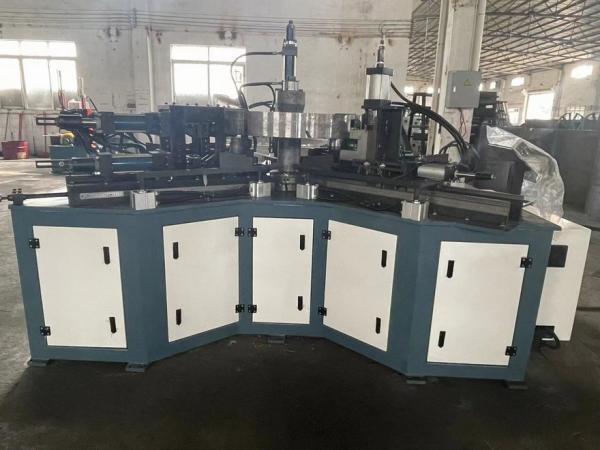

The vertical flanging machine stands out with the efficiency to execute flanging, punching and stiffening re-flanging in a simple and fast fashion on duct. The machine can do all the operations with an only one positioning of the piece. Ideal machine for axial fans.


The flanging-punching and closed re-flanging units are positioned in radial sense respect to the work piece and their positioning is easy and quick thanks to some handwheels and mechanical position indicators.


The fixture is clamped directly on the spindle through an expansion equipment which is provided with interchangeable sectors that can be easily manufactured.


  • Beading unit for stiffening flange.
  • Touch-screen for programming.
  • Safety guards, made in aluminium, fixed on three sides with sliding doors in lateral and posterior parts.
  • Safety light curtain in front side.
