CNC Fan Spinning And Flanging Machine

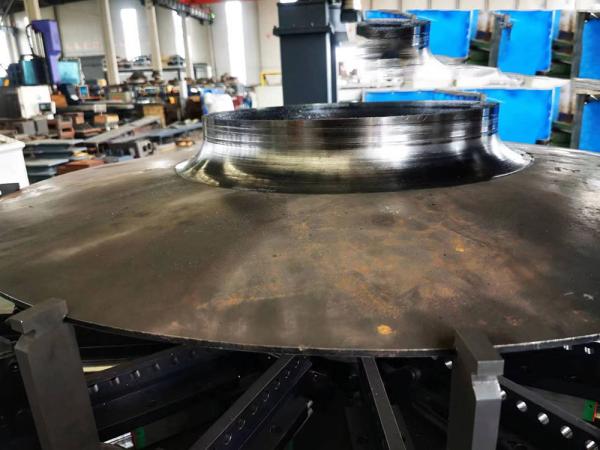

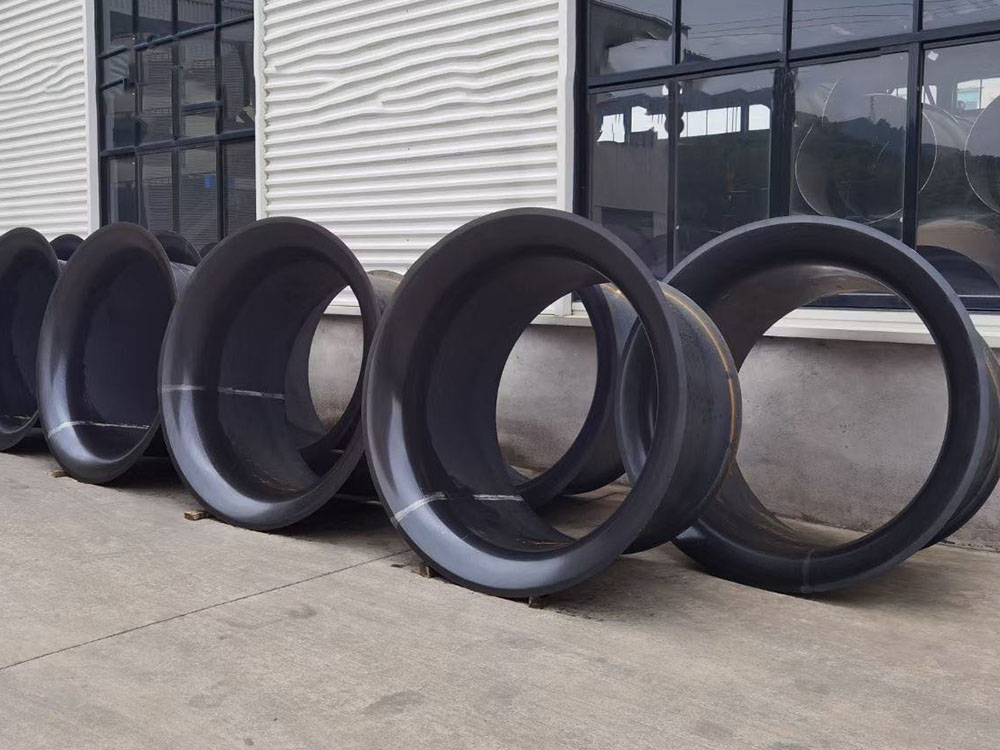

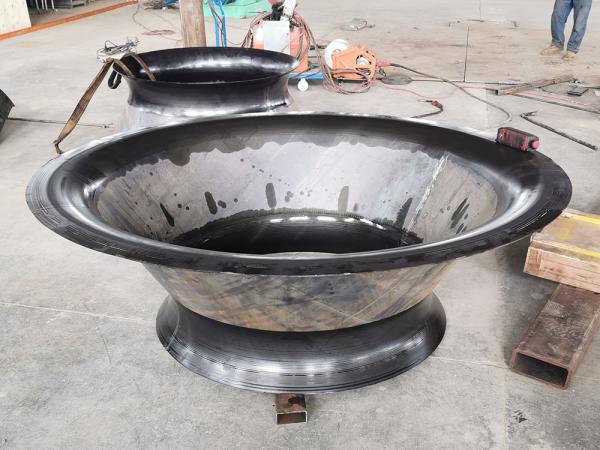

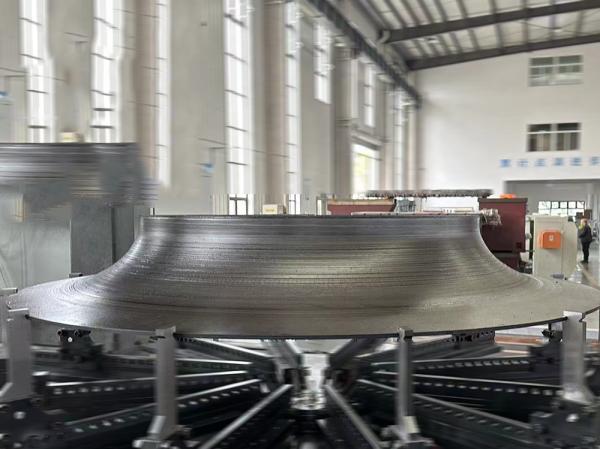

The CNC spinning flanging machine is a specialized machine designed for the flanging of air ducts in the fan industry. It is primarily used for the automated flanging, punching, and reinforcing edge pressing of various components such as industrial fan, air ducts, and pipelines. It can flip any angle of straight edges and curved edges within the range of 0 to 90 degrees. Such as nozzles, inlet cones, impeller frontplate for centrifugal fans.

---1. Siemens Control System
---2. Famous Brand Parts
---3. CNC Programming Software
---4. Flange Roller
---5. Hydraulic Station
---6. Operation Station
---7. Electrical Cabinet
---8. Operation Manual
---9. CE certified machine

The CNC fan spinning and flanging machine is equipped with the Siemens 808D CNC system for centralized control, ensuring a high level of automation, stability, and reliability. It delivers high precision and excellent consistency in manufacturing. The flanging process is executed through CNC system interpolated motion, with part program development facilitated by our latest company software, ensuring convenience and reliability.

Punching is powered by hydraulic force, and the hole spacing is achieved through servo motor positioning.

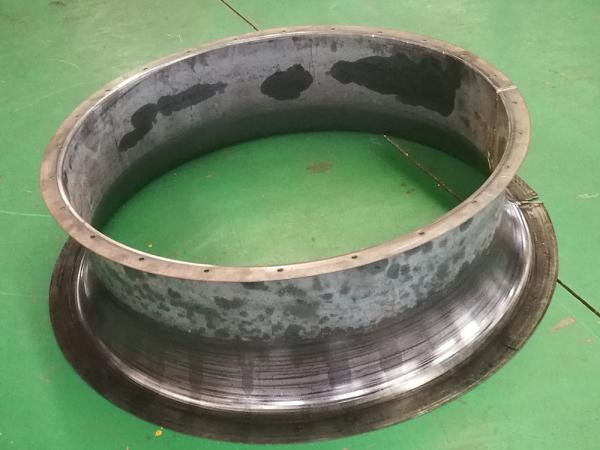

It serves as the perfect machinery for manufacturing components for axial flow fans and centrifugal fans.
