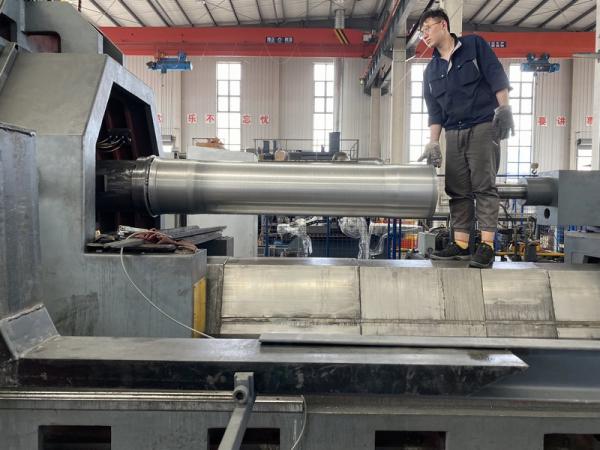

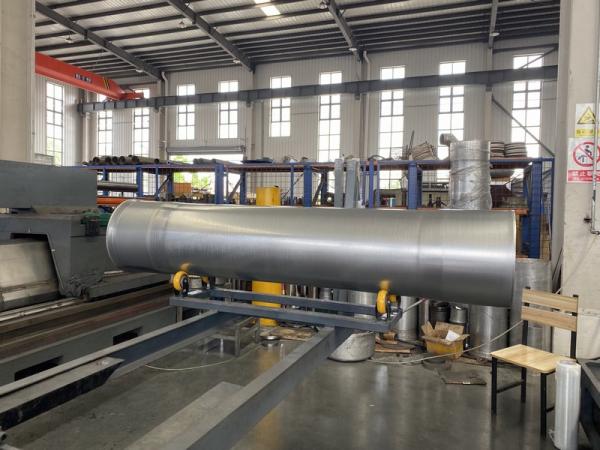

Three Rollers Spinning Machine

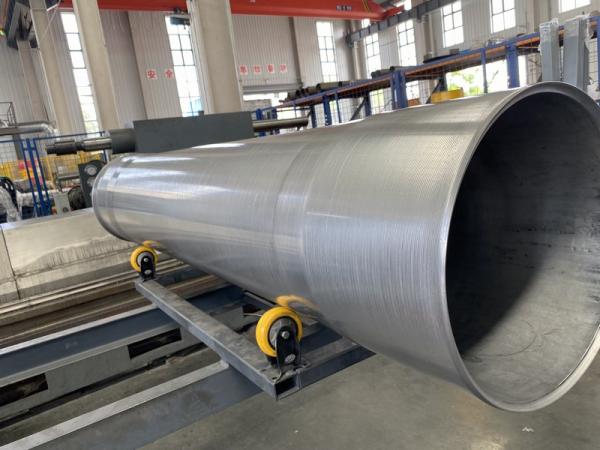

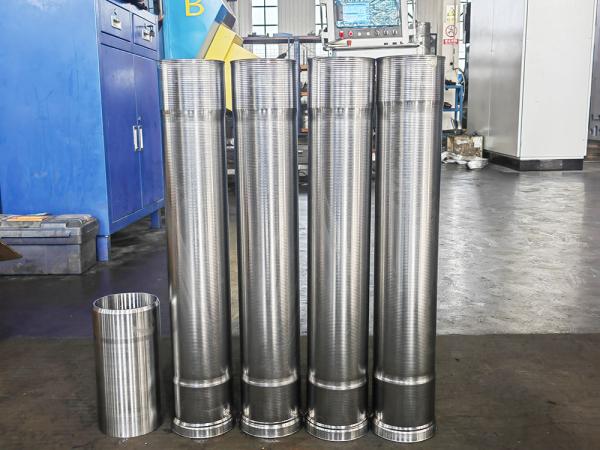

Three rollers spinning machine are mainly used for the spinning of the reducing or thickening of the tubes; Small diameter of the thick materials and could harden some surface by spinning The machine has the advantages of high rigidity and high accuracyetc.It could process the precisior cylinder parts, high pressure gas cylinderservo hydraulic cylinder partsthe housing of the motor, etc.

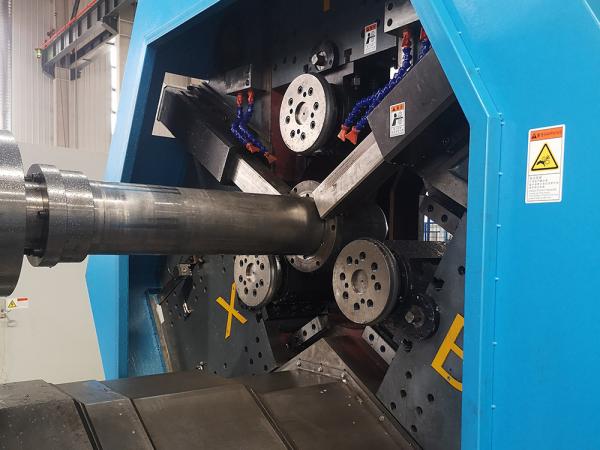

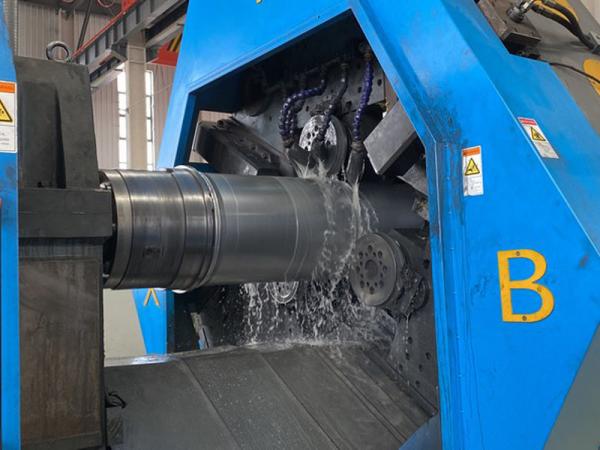

The three spinning rollers are designed for 120° each and the turret is integrated structure with rational spinning capacity.The three spinning wheels could run separately, and could process in forward flow forming, reverse flow forming, and in different steps. The spindle could stop in any position which is convenient to load and unload the molds,and supports for the special forming process. The products unload in two ways: in the center of the spinning wheels and by sliding.

---1. Siemens Control System
---2. Famous Brand Parts
---3. CNC Programming Software
---4. Hydraulic Pressure System
---5. Spinning Wheel
---6. CNC Tool Turret
---7. Siemens CNC Instruction
---8. CE certified machine

CJ also designs and builds custom metal spinning equipment for custom applications; these systems can be engineered and built to meet the requirements of specific applications. All machines are designed and built utilizing state-of-the-art CNC programming software and the control systems from Siemens and other famous brand parts.

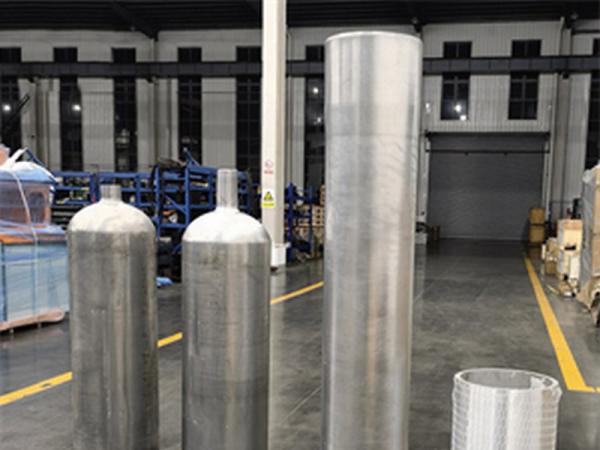

For example, an upgrade of our original technology led to the design of a production line for a gas cylinder, including hot necking spinning machine and three rollers flow forming machine. Max diameter and length could be up to 820*280mm, spinning length max up to 5000mm.
