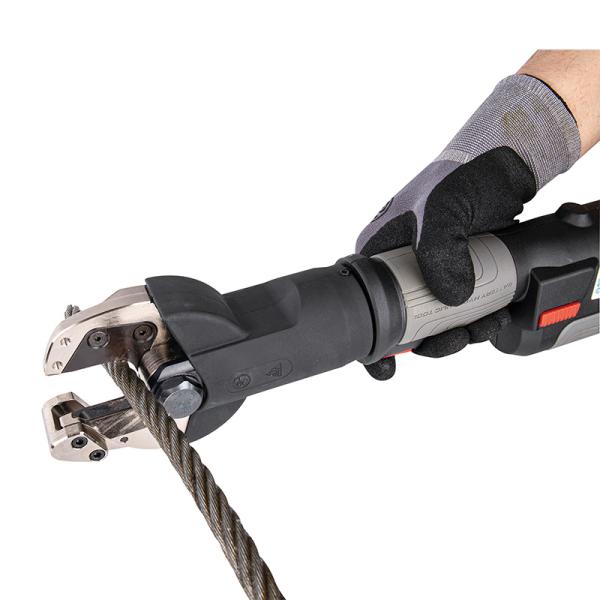

BATTERY POWERED CABLE CUTTING TOOL
PZ-26C
| Rated pressure： | 50kN |
| Stroke： | 26mm |

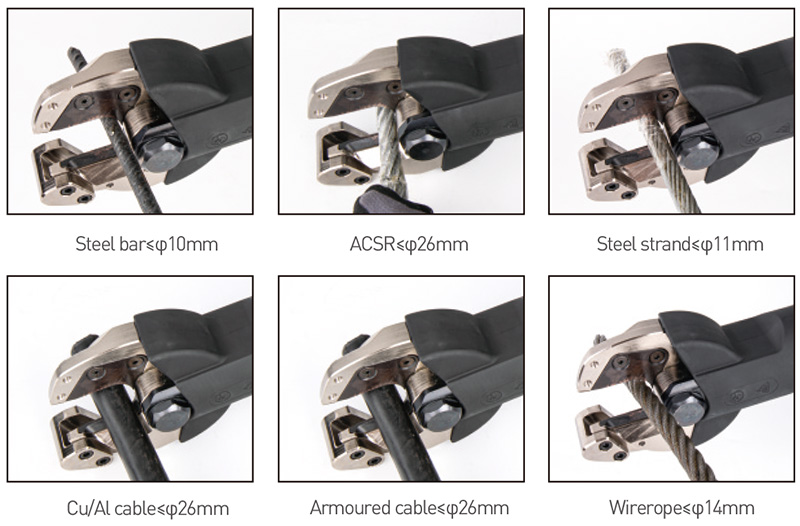

| Cutting range: | φ26mm |
| （1）ACSR≤φ26mm | |
| （2）Wirerope≤φ14mm | |
| （3）Steel strand≤φ11mm | |
| （4）Steel bar≤φ10mm | |
| （5）Cu/Al cable and Armoured cable≤φ26mm | |
| Voltage/capacity： | 18V/2.0Ah |
| Charging Time： | Approx.40mins |
| Charging Voltage： | AC100V-240V; 50-60Hz |
| Weight： | 4.5kgs(with battery) |
| Cutting Cycle Time： | Approx.9s(26mm ACSR) |
| Service Interval： | 10000cycles |
| Tool Size： | 491×118×75mm |

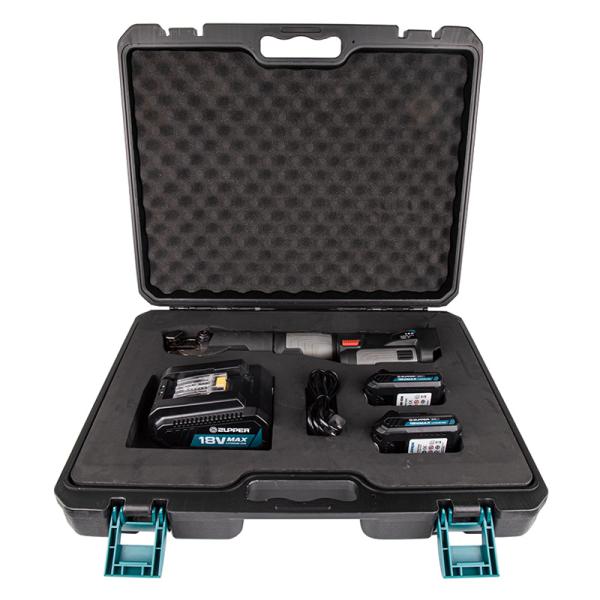

| Battery： | 2pcs |
| Charger： | 1pc |
| Sealing ring of cylinder： | 1set |
| Sealing ring of safety valve： | 1set |
● Optimal carbide blade suit for cutting variety of hard materials.
● OLED display show Working cycles, Maintenance note, Battery percentage,Fault code ect.
● Automatic retraction when operation is complete, manual retraction if need.
● Highperformance 18V Li-ion battery, more than 180cuts per charge.
● Ergonomic and portable design, suit for one hand operation.
● Cutting head rotates 180°
● The general utilization and standardization production for core parts makes quality more guaranteed
