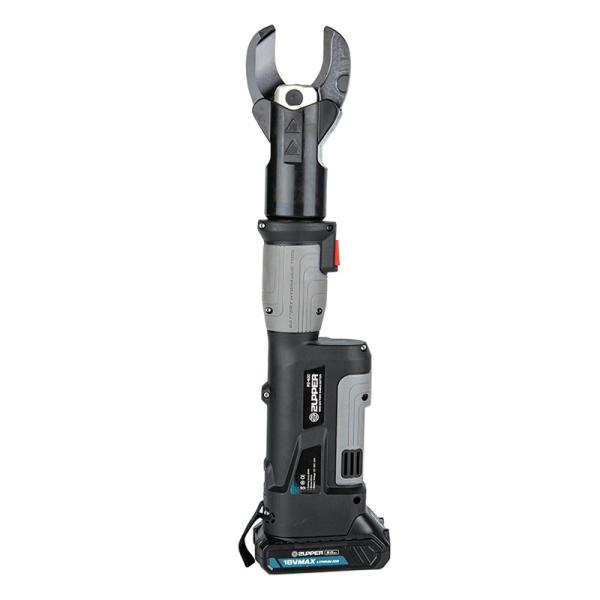

BATTERY POWERED CABLE CUTTING TOOL
PZ-40C
The ZUPPER PZ series with small size and low weight can generate high power and performance, it is the newest addition to the mini press tool with in-line grip, 4-9s cut cycle time. Our compact “mini” is just perfect for confined areas.
Effortlessly cut up to MAX. DIA. 40mm Cu/Al Cable
| Cutting force: | 30kN |
| Stroke: | 25mm |
| Cutting range: | φ40mm Cu/Al cable(Non-fine strand and extra-fine strand) |
| Voltage/capacity: | AC 18V/2.0Ah |
| Charging time: | 40 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Weight: | 3.1kgs(with battery) |
| Size: | 468x133x75mm |
| Working temperature: | -10~40℃ |

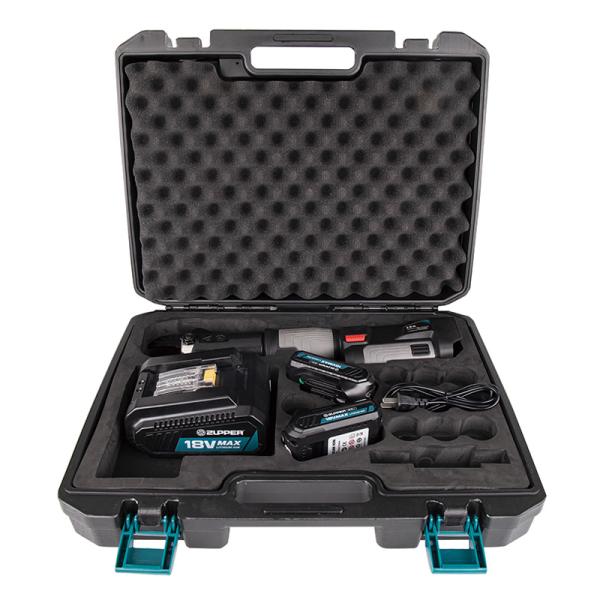

| Accessories | |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
| |
CIRCUIT BOARD DIAGNOSTICS
Alert you when the battery is low or the tool is too hot or cold
OLED DISPLAY
● Easy reading on
● Battery Percentage
● Cutting Times
● Fault Code
● Maintenance Note

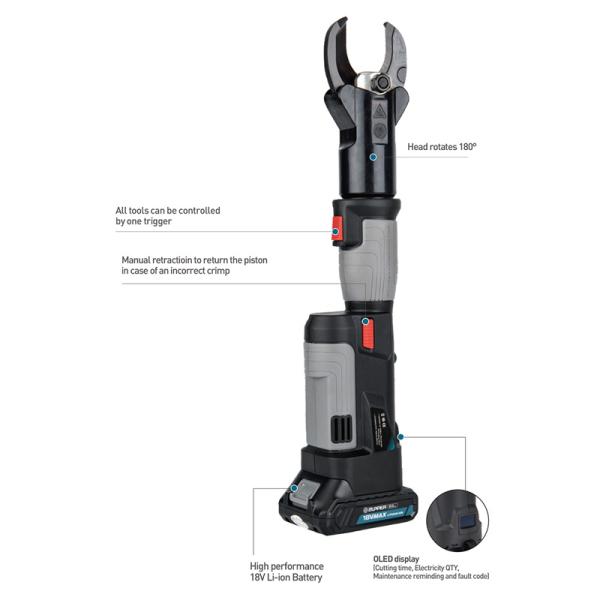

180°SWIVELLING BARREL
Easy access to connections
TWO STAGE HYDRAULIC SYSTEM
Hydraulic Ram Output provides more force for reliable connection
ERGONOMIC DESIGN
With light weight and in-line grip, easily work overhead and in tight spaces.
