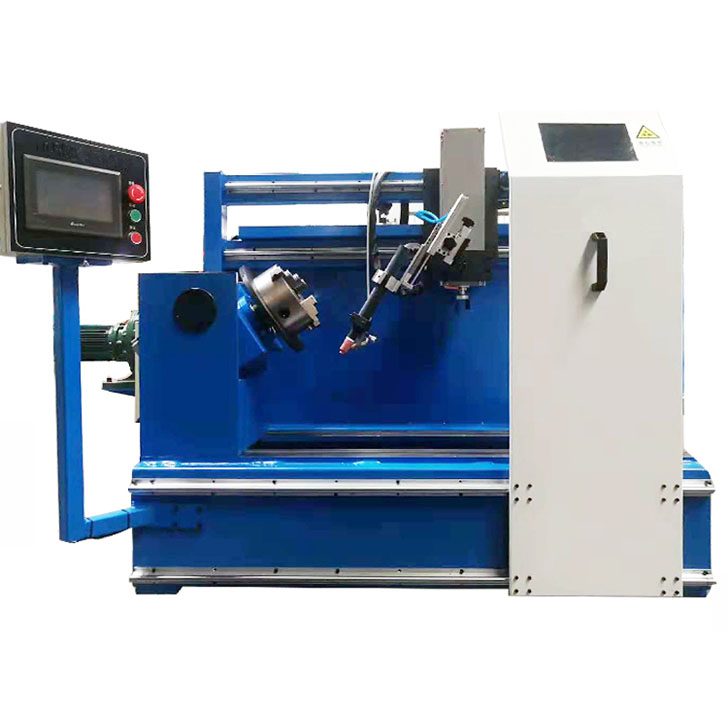

Variable Position Circumferential Welder

CJ-Series Automatic Circular Seam Welder

Variable Position Circumferential Welder
Get Quote

The CJ Series Positioner Circumferential Seam Automatic Welding Machine is primarily suitable for circular seam welding of carbon steel, stainless steel, and other metal workpieces. It can weld circular seams on workpieces such as gas storage cylinders, water heaters, fire extinguishers, drive shafts, shock absorbers, mufflers, storage tanks, pipe-to-pipe butt welding, pipe flanges, pipe elbows, and tee joints.
Main Features:

The CJ Series Positioner Circumferential Seam Automatic Welding Machine is a device designed to achieve automatic welding of circular seams. It can be equipped with an argon arc welding machine (with or without filler wire), a melting electrode gas shielded welding machine (CO2/MAG/MIG welding), a plasma welding machine, etc., to form a complete automatic circumferential seam welding system.

The product generally consists of a bed, a main drive box, a bracket, a tailstock, a welding torch moving mechanism, a welding torch lifting mechanism, a multi-dimensional gun adjuster, and an arc welding control system, among other components.


It features an advanced control system, a user-friendly human-machine interface, a high degree of automation, and stable and reliable performance.

Optional Accessories: Argon arc welding automatic wire feeding system, welding machine, fully enclosed sheet metal cover, etc.

Parameters

Model NO.

CJ-500

CJ-1000

CJ-1500

CJ-2000

CJ-2500

CJ-3000

CJ-5000

Voltage

Single 50Hz   AC220V







Welding Power

3P 50Hz   AC380V







Welding Method

TIG (Tungsten Inert Gas) Welding

MIG/MAG (Metal Inert Gas / Metal Active Gas) Welding

PAW (Plasma Arc Welding)

SAW (Submerged Arc Welding)









Number of welding torches

1set







Thickness

50mm







Diameter(mm)

10-1000mm







Length(mm)

≤500

≤1000

≤1500

≤2000

≤2500

≤3000

≤5000
