Long Pipe Chamfering Machine
CJ-50 Custom Chamfering Machine
Chamfering Capacity up to OD 50mm, with 3000mm Working Lengths Introducing the custom CJ-50, designed for long lengths and OD 50mm chamfering capabilities. These machines enable simultaneous chamfering at both ends of a tube, accommodating working lengths of up to 3000mm. When equipped with the optional BTM (Bundle Loading Magazine), our machines provide a fully automated loading, feeding, and chamfering process. This product line ensures a precise and uniform chamfer on both ends of the tube, including chamfering the inside + outside (I/O) and the face of the material, or creating a rounded chamfer. Additionally, it is suitable for external chamfering of solid bars.
Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"
Parameters
Model | CJ-50L |
Type | Pneumatic /Hydraulic Drive |
Pipe Diameter | 10-50mm |
Work Length | 200-1000/1500mm/3000mm/4000mm(custom) |
Work accuracy | ±0.1mm |
Work Speed | 3-5s/pcs |
Machine Motor | 2.2kw |
Work Pressure | MPA 6-8KG |
Weight | 1500kg |
Dimension | 500*110*150cm |
Material | Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc |
Shape Available | Round, Square, Hex, Bent Shape etc |
Workpiece Available | Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc |
Related Products
Exchange Table Fiber Laser Cutting Machine
CJ-4000 Fiber Laser Cutter
Rotatable Plate Edge Milling Machine
CJ-80R Plate Chamfering Machine
Round Tube Mirror Polishing Machine
CJ-8 Round Tube Mirror Polisher
Double End Chamfering Machine
CJ-80 Tube End Chamfering Machine
4A-2S Pipe Bending Machines

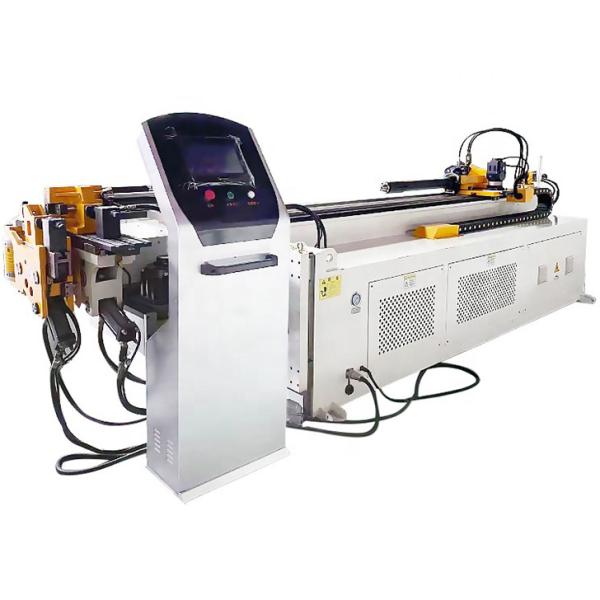

CJ-38CNC Mandrel Tube Bender
