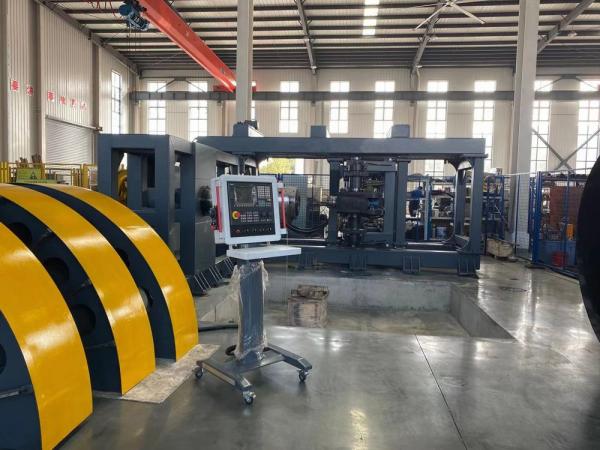

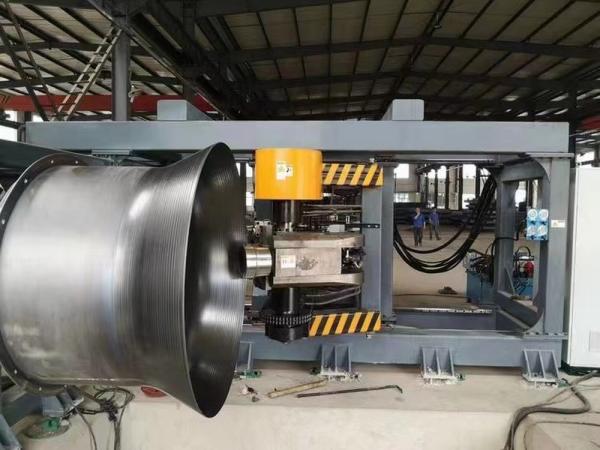

Heavy Duty Flanging Machine

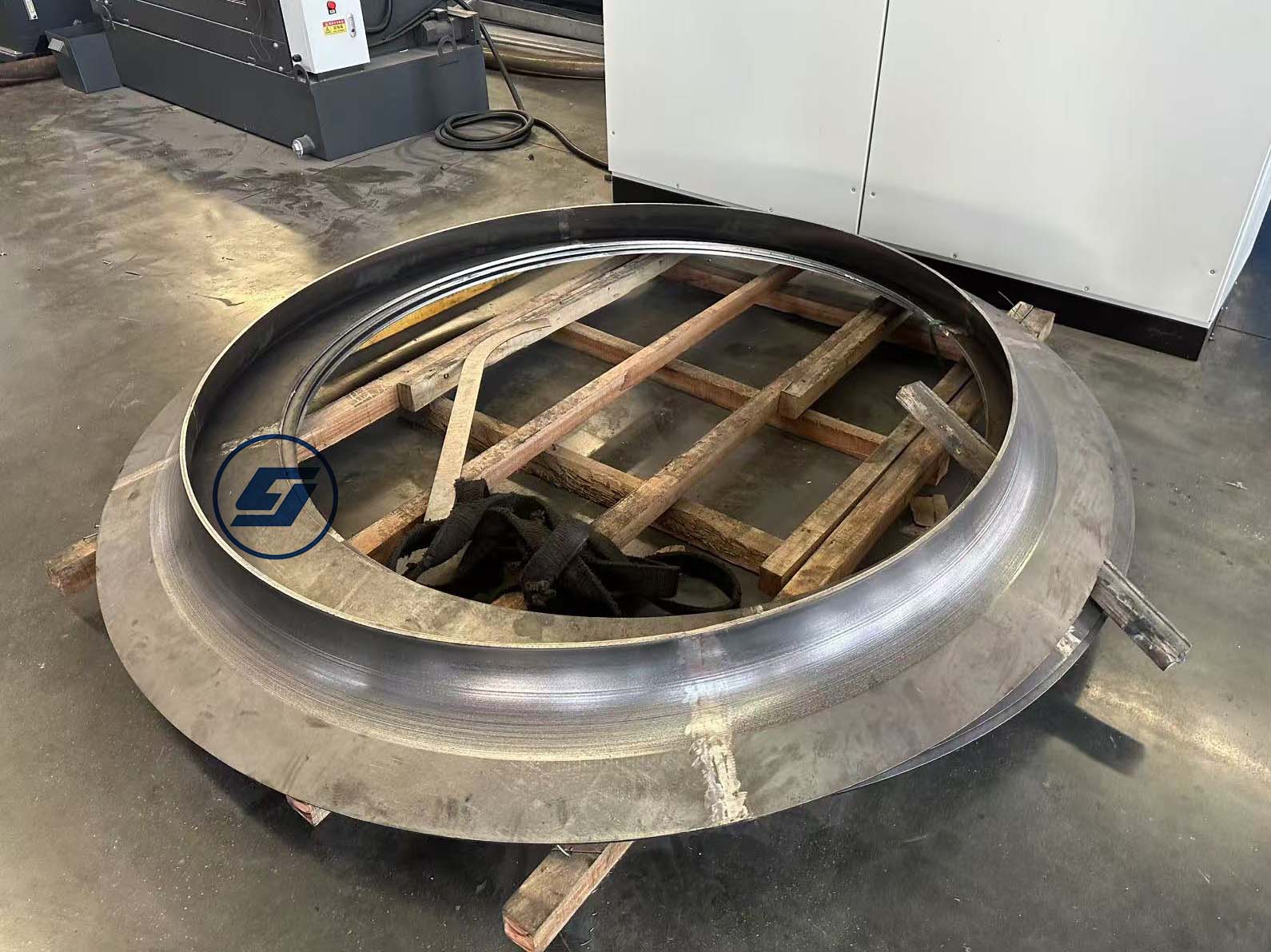

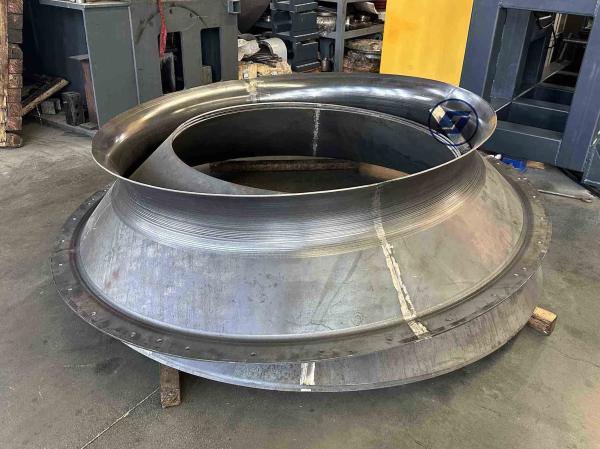

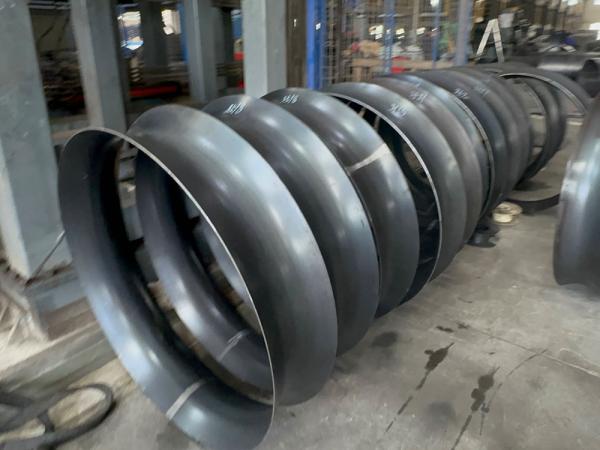

Our most advanced and versatile model can handle both ducts and plates up to 25mm thick, making it perfect for producing parts for both axial and centrifugal fans. Our machine is capable of handling various parts such as fan casing, impeller casing, inlet bell, inlet cone, shroud, bellmouth and flanges, as well as punching flange holes. Our cutting-edge technology ensures high precision and long-term reliability, making it the perfect choice for your production needs. With our versatile model, you can expect exceptional performance and results.

---1. Siemens Control System
---2. Famous Brand Parts
---3. CNC Programming Software
---4. Flange Roller
---5. Hydraulic Station
---6. Operation Station
---7. Electrical Cabinet
---8. Operation Manual
---9. CE certified machine

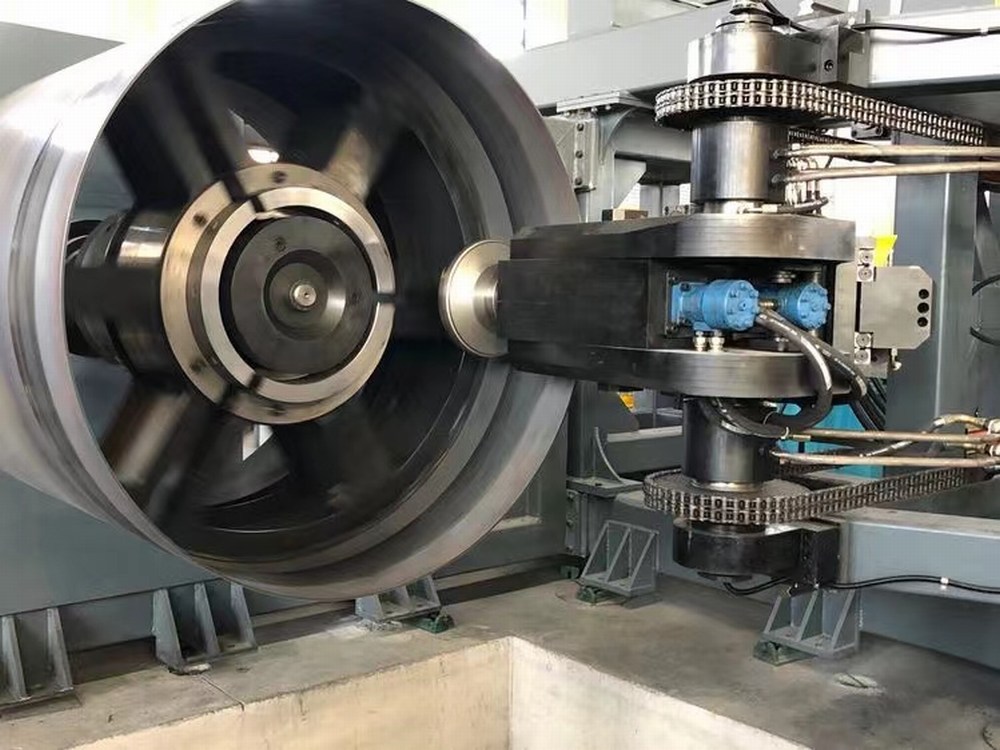

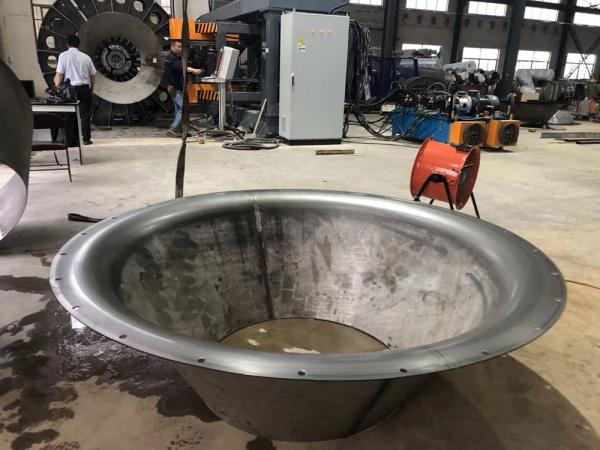

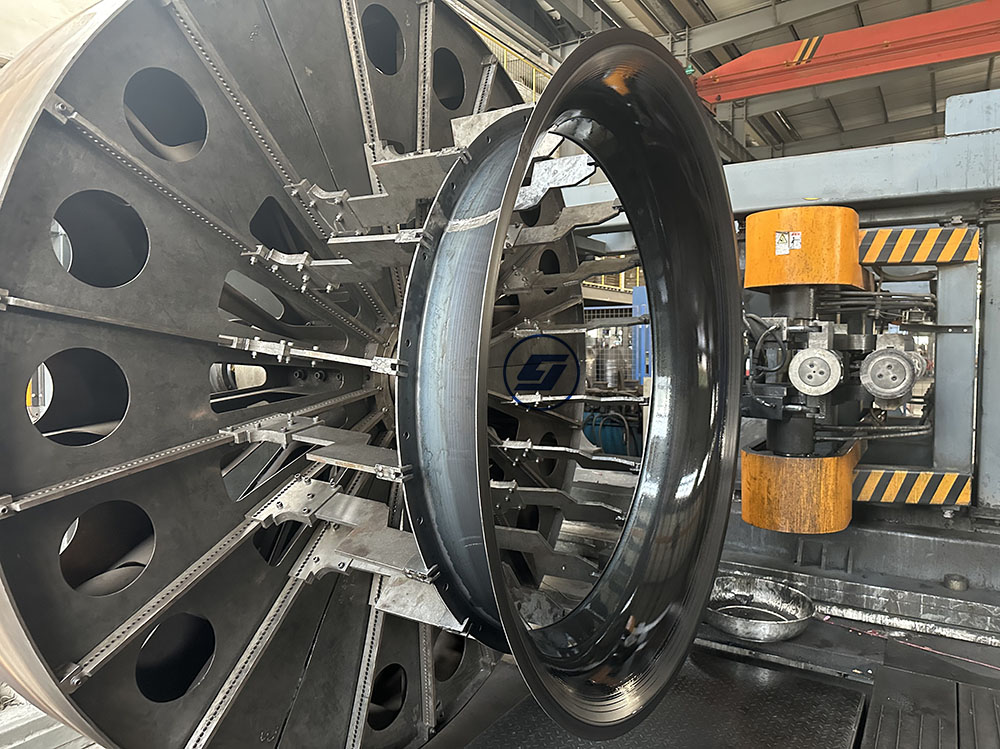

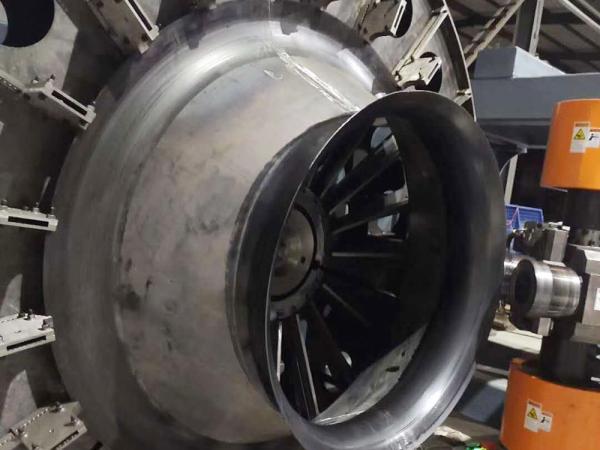

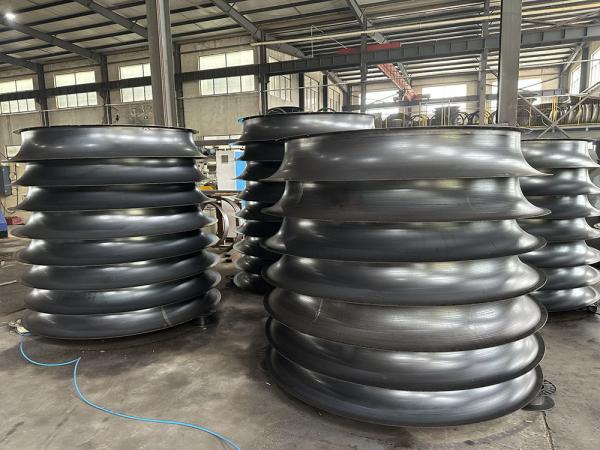

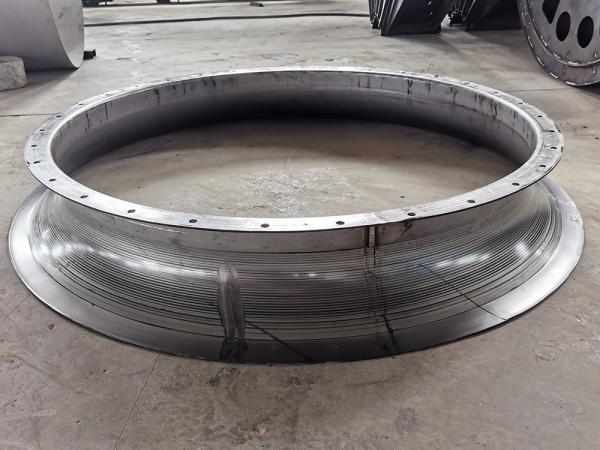

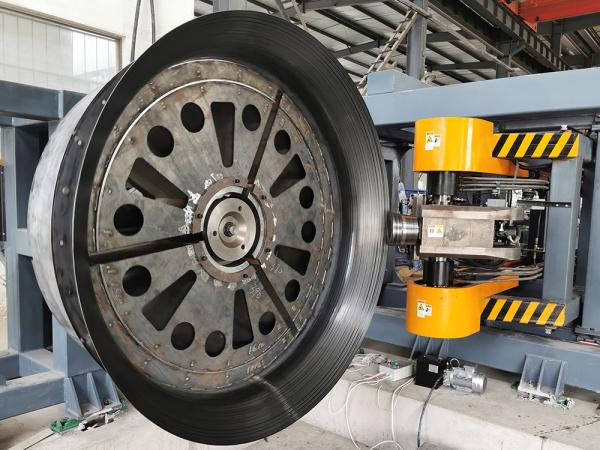

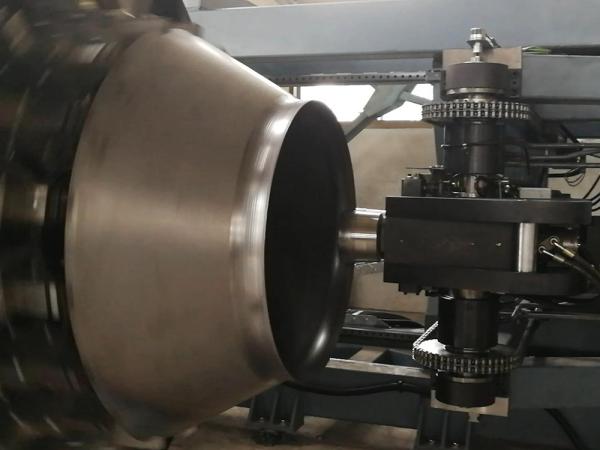

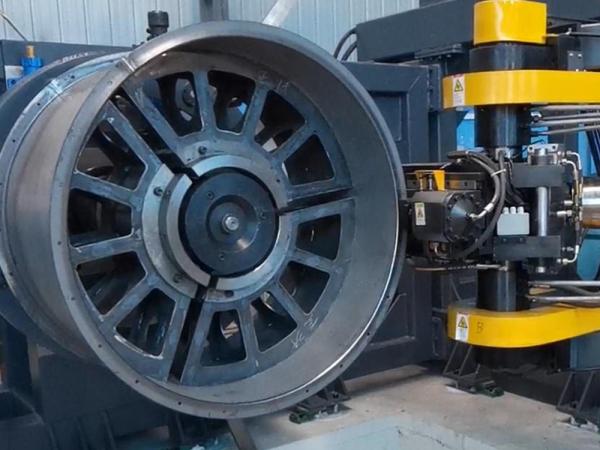

It is a special spinning forming machine with high numerical control integration functions. It adopts horizontal numerical control spinning forming. It can spin the inside and outside of the ring for numerical control forming of the air inlets and outlets, axial fan casings, inlet cones, shrouds and front plates for centrifugal fans. At the same time, it can use two spinning wheels for flanging and punching of the flange of the straight barrel by using different clamps. The flanging shaft adopts hydraulic control torealize angle and speed control, which can carry out flanging and station conversion. The flanging and punching of the fan housing with the diameter of 500mm- 5000mm can be realized by changing the internal mold of different specifications. The number of punching parameters and the shape and size of flanging can be set in the software. In addition, the expansion shaft can be installed with hydraulic expansion disc, which is used for flat flanging, cone flanging and spinning.
