CNC Corner Connector Cutting Saw for Aluminum Doors and Windows
LJJMAS-450(500)*350
1.Schneider CNC system; Cable & electric wires: YiChu; Pneumatic components: AirTAC; Saw blade: Janpan DaHe
2.Profile feeding driven by ball screw rod. Saw blade feeding driven by air-liquid damping cylinder
3.Cutting width & quantity preset by touch screen
Machine body is overall structure with good rigidity

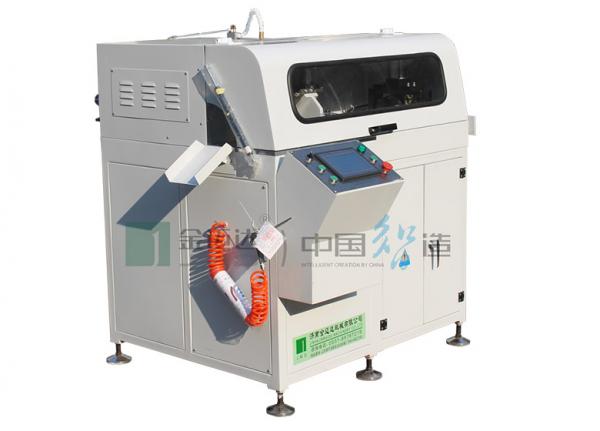

CNC Corner Connector Cutting Saw, Aluminum CNC Machine

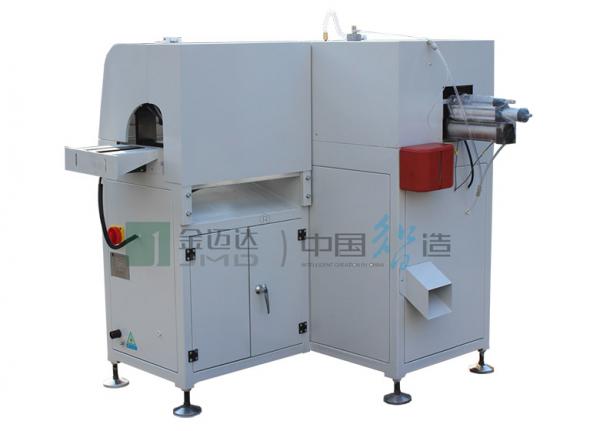

CNC Corner Connector Cutting Saw, Aluminum CNC Machine

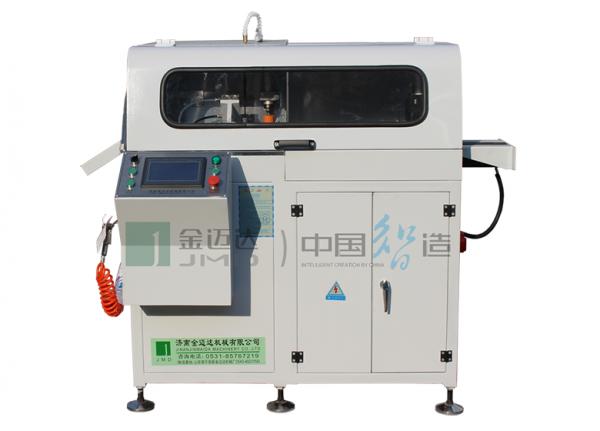

CNC Corner Connector Cutting Saw, Aluminum CNC Machine
Power supply | 380V/3Phase/50Hz |
Input power | 3.0kW |
Air pressure | 0.5~0.8Mpa |
Saw blade rotational speed | 3200r/min |
Saw blade specification | 450*4.0*3.3*30Z=100 |
Cutting length | 3~350mm |
Max cutting width/height | 120mm/200mm |
Overall dimension | 1350*1480*1380mm |
Weight | 430Kg |
