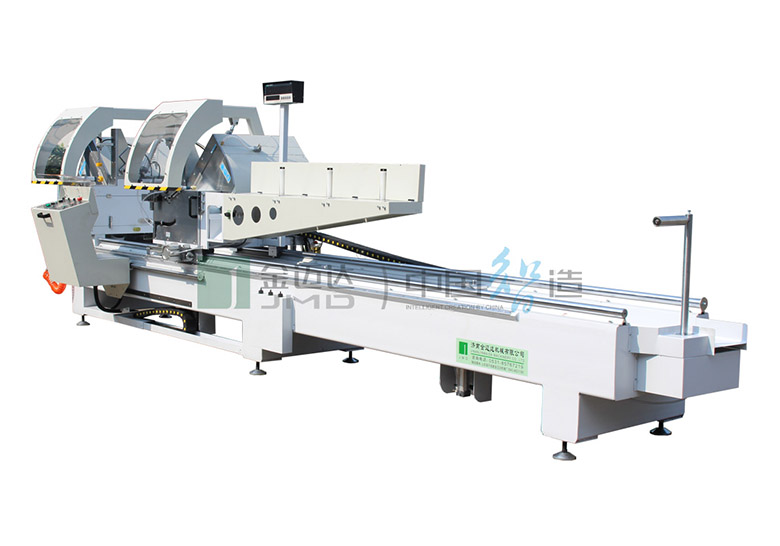

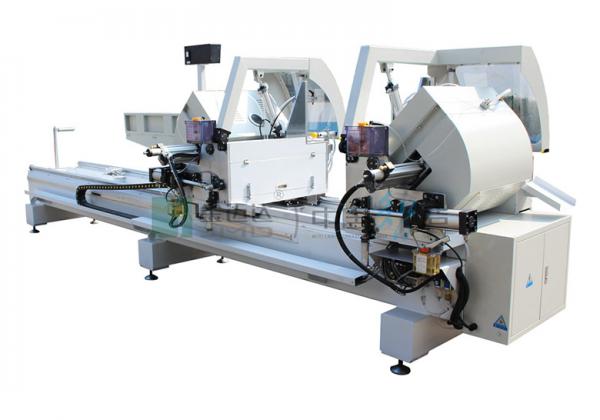

Digital Display Double-head Miter Precsion Cutting Saw for Aluminum and PVC Profile
LJJ2AX-500*4200
1. Spindle motor(for driving saw blade) made by professional manufacturer
2. Saw blade: Diamond ZhiGuang; Cable & electric wires: YiChu; Pneumatic components: AirTAC
3. Saw blade feeding driven by hydraulic damping cylinder through HIWIN linear guide rail pair
4. Pneumatic profile supporting system & pneumatic right machine head lock system
5. Cutting length digital displayed
Aluminium Double Head Mitre Saw Cutting Machine
Aluminium Double Head Mitre Saw Cutting Machine
Aluminium Double Head Mitre Saw Cutting Machine
Power supply | 380V/3Phase/50Hz |
Input power | 4.4kW |
Saw blade rotating speed | 3200r/min |
Saw blade specification | 500*4.4*3.3*30*120p |
Cutting length | 270~4200mm |
Max cutting width/height | 130mm/290mm |
Overall dimension | 5530*1750*1900mm |
Cutting angle | 90°, 45° |
Air pressure | 0.5~0.8Mpa |
Weight | 1700Kg |
