CNC Drilling Machine: Automated Precision for Complex Woodworking Projects

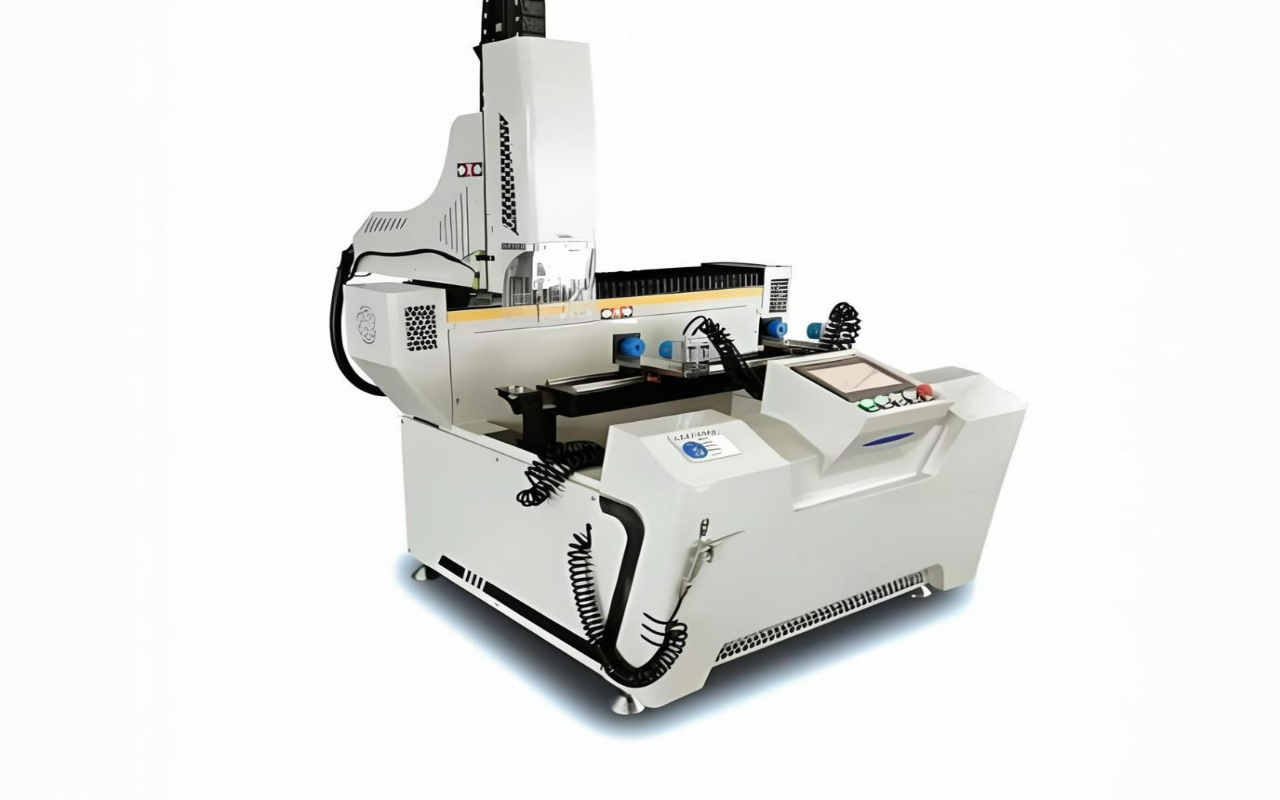

What is a CNC Drilling Machine?

A CNC drilling machine uses computer-guided spindles to drill holes with micron-level accuracy in wood, enabling mass production of intricate components like furniture joints or artistic installations.

Types of CNC Drilling Systems

1. Gantry Drilling Centers
   • Large-format machines for doors or tabletops (e.g., 3m x 1.5m beds).
2. Multi-Head CNC Drills
   • 4–12 independent spindles for simultaneous hole patterns.
3. Nesting Drill-Routers
   • Combines drilling and routing in one workflow.
4. Robotic Arm Drillers
   • 6-axis flexibility for curved surfaces (e.g., sculptural pieces).

Key Advantages

• Complex Geometry: Drills angled, staggered, or non-linear holes.
• Zero Setup Errors: Digital templates eliminate manual measurement.
• Scalability: Processes 500–5,000 holes/day.
• Integration: Syncs with CAD/CAM software for end-to-end automation.

Applications

• Kitchen Cabinetry: Holes for adjustable shelves and hinges.
• Musical Instruments: Soundhole patterns in guitars.
• Wood Art: Perforated screens for architectural installations.

Operation Steps

1. File Upload: Import DXF/G-code designs.
2. Workpiece Fixing: Secure material with T-slot clamps.
3. Tool Selection: Auto-change drill bits (2–30mm diameter).
4. Execution: Machine drills at 5,000–24,000 RPM with depth control.
5. Quality Scan: Laser sensors verify hole positions.

Technical Innovations

• Collision Avoidance Sensors: Prevent bit breakage.
• Dust-Proof Spindles: Extend bearing life in high-debris environments.
