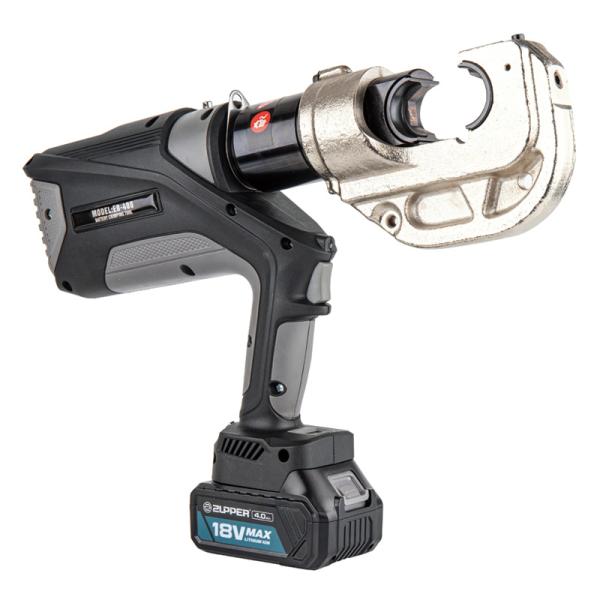

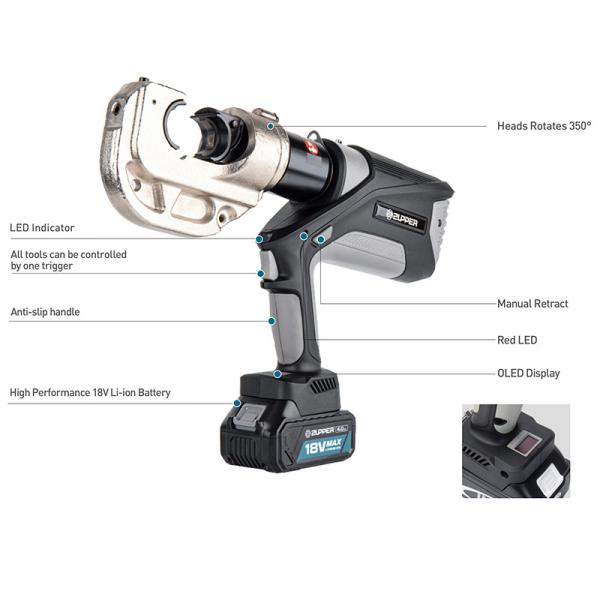

BATTERY POWERED CRIMPING TOOL
EB-400
To be standard constitutor in hydraulic tool field,ZUPPER develop the technology of brushless motor,no carbon brush,maintenance-free,motor overload protection and 30% Longer motor life,the brushless motor will do more work in the same full charge of the battery pack,30% more run-time than the brush motor.
| Rated pressure: | 120kN |
| Stroke: | 42mm |
| Oil capacity: | 160ml |
| Max crimping: | Cu 400mm²/Al 300mm² |
| Cycle time | 5~8s(CU 150 mm²) |
| Cycles/charger: | Approx.120 cycles (CU 150 mm²) |
| Voltage/capacity: | 18V/4.0Ah |
| Charging time: | Approx.80 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Weight incl. battery: | 7.3kgs |

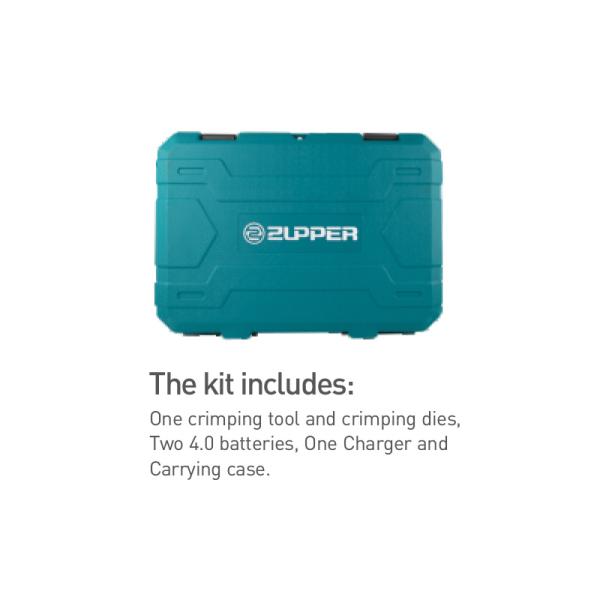

| ACCESSORIES | |

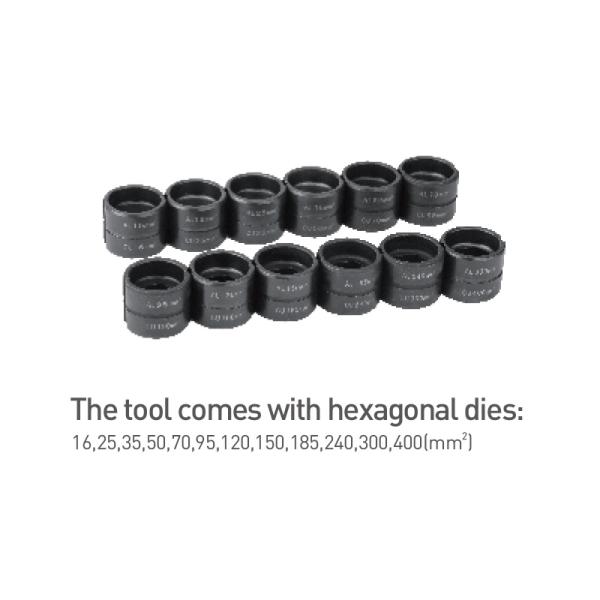

| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300,400mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
