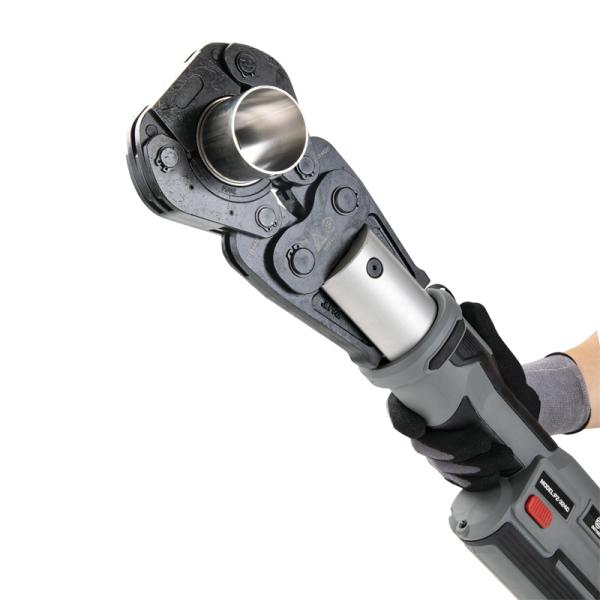

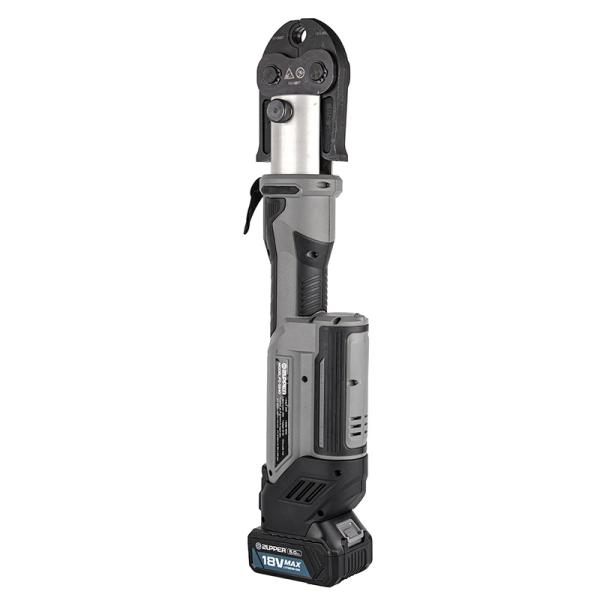

BATTERY POWERED PRESS TOOL
PZ-3240
☑ LONGER WARRANTY
2years or 40000cycles
☑ OPTIONAL EXTENDED FUNCTIONS
Brushless motor /Pressure sensor /Bluetooth
☑ 180°SWIVELLING BARREL
Easy access to connections

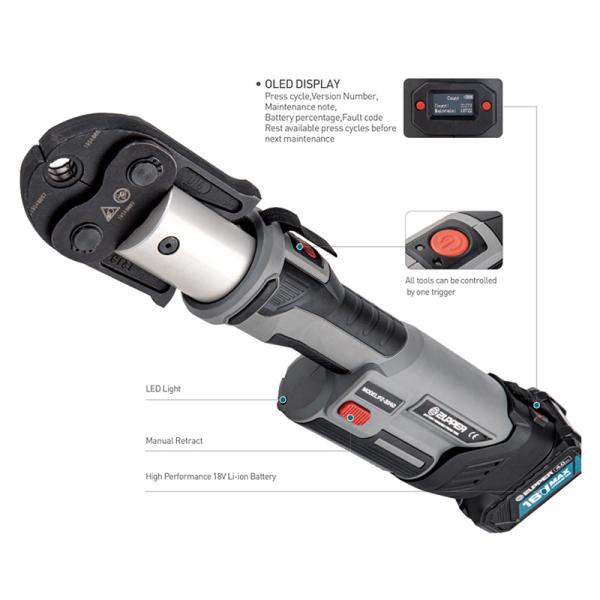

(b)OLED DISPLAY(/b)
Press cycle, Version Number, Maintenance note, Battery
percentage, Fault code, Rest available press cycles
before next maintenance
All tools can be controlled by one trigger
The tool is performed by 18V Li-ion Battery

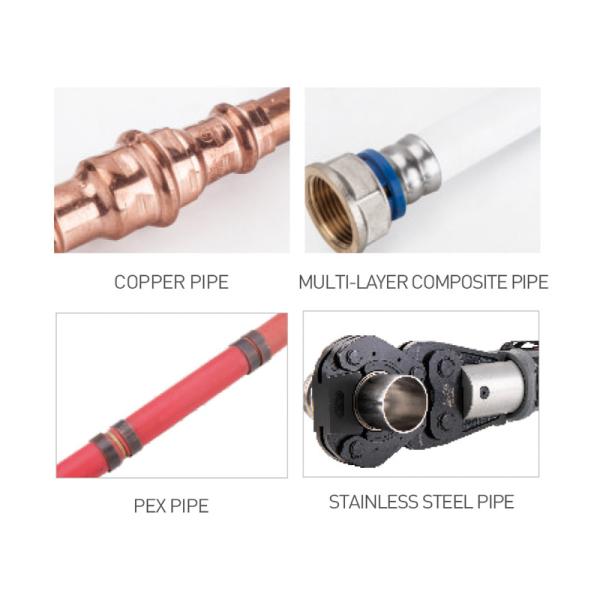

| Capacity: | 12-54mm for stainless steel pipe | Pressing cycles/charge: | 350cycles(DN 20 Stainless Steel) |
| 12-108mm(1/2"-4") for PEX,Multi-layer composite | Battery: | 18V Li-ion 4.0Ah | |
| and copper pipe | Charging time: | Approx.80mins | |
| Output: | 32kN | Charging voltage: | AC 100V-240V 50-60Hz |
| Stroke: | 40mm | Service interval: | 10000cycles |
| Pressing cycle time: | 3-6s(depends on the dia of pipe) | Weight: | 4.1kgs(tool with battery) |
| Tool Size: | 495x89x123mm | 6.2kgs(tool with battery and jaw) |
