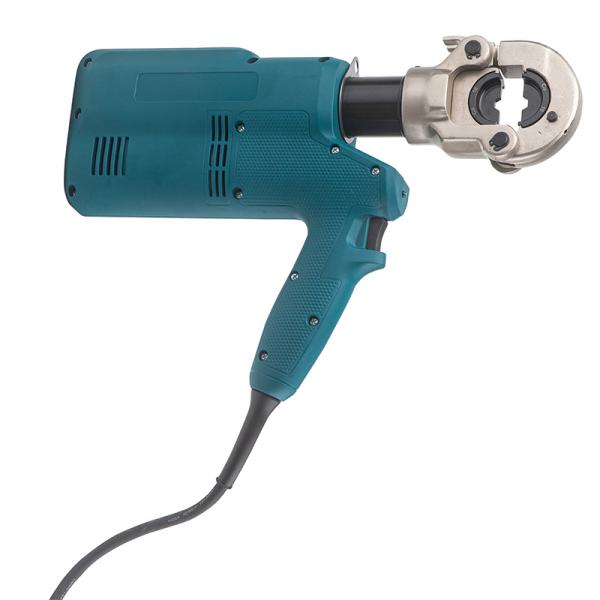

ELECTRICAL POWERED CRIMPING TOOL
HH-300
HH series are full consideration for the cost performance of users, the tool comes standard with 220V input voltage directly, 520W rated power, two stage hydraulic system, save the cost of the batteries with AC series motor, it is perfect experience at a reasonable cost.
| Output force: | 60kN |
| Stroke: | 17mm |
| Crimping Range: | Cu300mm²/Al 240mm² |
| Crimping Cycle: | 2.5-6s(depends on size of lug) |
| Voltage: | AC220V 50/60Hz(or AC110V 50/60Hz) |
| Rated Power: | 520W |
| Ambient temperature: | -10-50 |
| Weight: | |
| Product size: | 432×124×75mm |
| Accessories: | |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300mm² |
| Sealing ring of cylinder | 1pc |
| Sealing ring of safety valve | 1pc |
