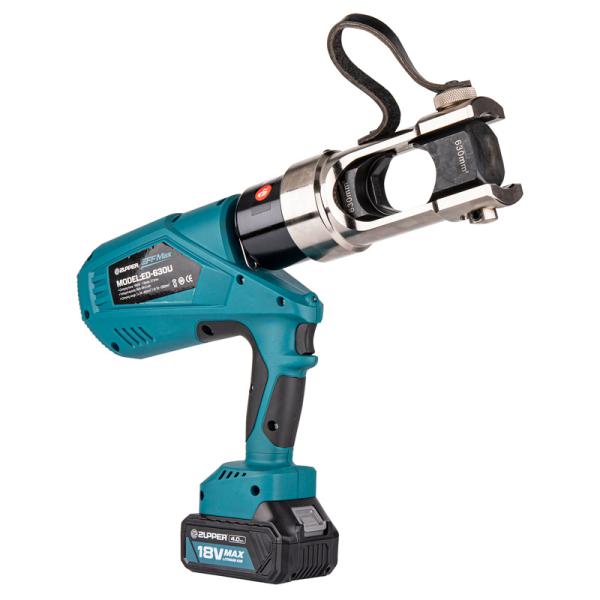

BATTERY POWERED CRIMPING TOOL
ED-630U
| Rated pressure: | 180kN |
| Stroke: | 27.5mm |
| Crimping range: | Cu 16-630mm²/Al 10-500mm² |
| Time/work: | 7-15s(depend on the dia of cable) |
| Cycles/charger: | 130cycles(Cu 150mm²) |
| Voltage/capacity: | 18V/4.0Ah |
| Charging time: | Approx.80 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Ambient temperature | -10～40℃ |
| Weight: | 8.7kgs (with battery) |
| Size of tool: | 425x343x84mm |
| ACCESSORIES | |

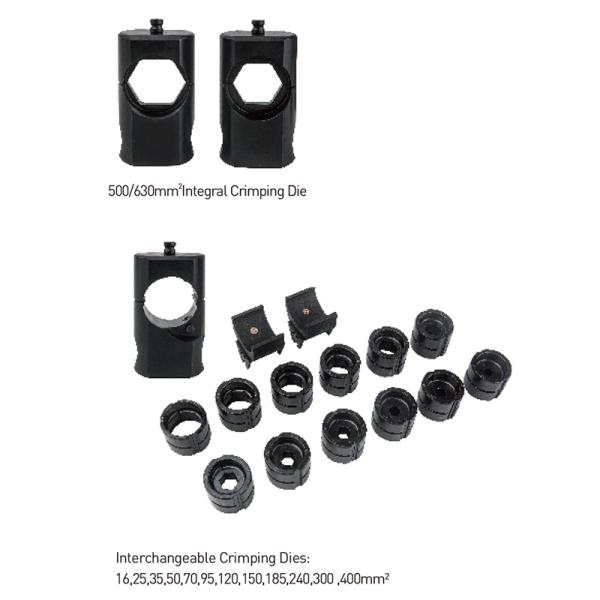

| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300,400,500,630mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
● U type latch head,with light weight,high strength
350°rotary crimping head ,working at any site
● Two stage hydraulic system with high efficiency
● OLED display shows battery percentage, working time,
maintenance reminding,errors info etc
