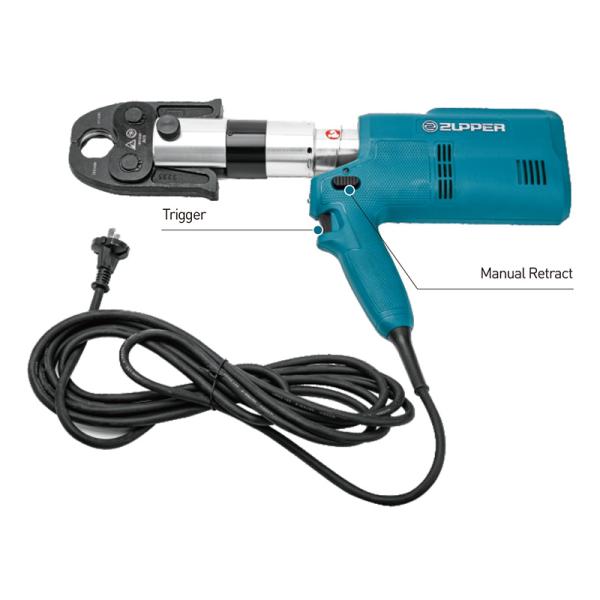

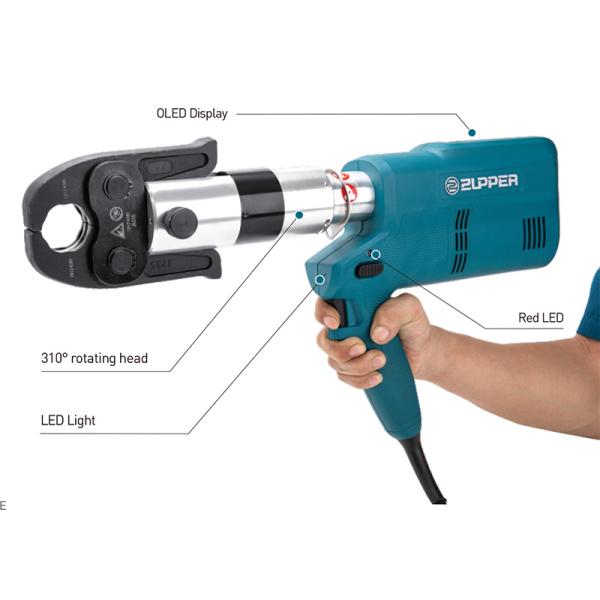

ELECTRIC POWERED PRESS TOOL
HH-1550
| Capacity: | 12-54mm for stainless steel pipe | Rated Power: | 520W |

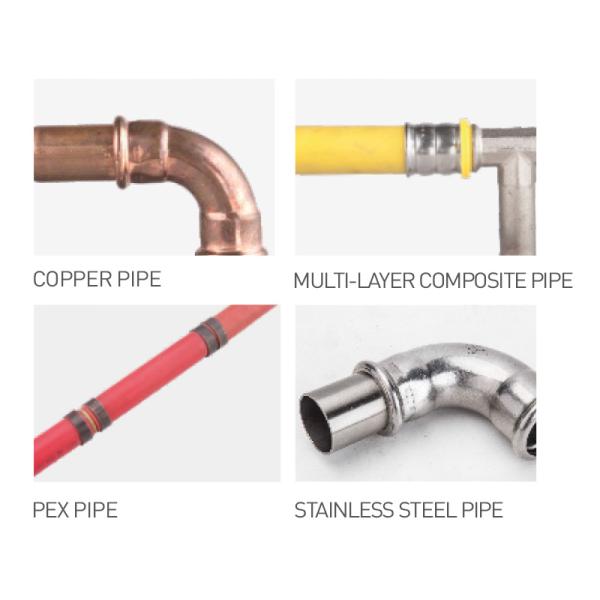

| 12-108mm(1/2"-4") for PEX,Multi-layer and copper pipe | Voltage: | AC220V 50/60HZ (or AC 110V 50/60HZ) | |
| Output: | 32kN | Service Interval: | 10000cycles |
| Stroke: | 40mm | Weight: | 4kgs(without jaw) |
| Cycle time: | 2.6-6S | Size of tool: | 422×328×82mm |
| Hydraulic oil: | Shell Tellus S2V HV15 240ml | ||
| HH-1550 Press Tool Kit | |||
| MODEL NO. | DESCRIPTION | Weight(kgs) | |
| HH-1550 | HH-1550 Press Tool Kit without jaws | 7.2 | |
| Plastic case | 3.2 | ||
● Only 3S to finish one cycle press
● Press jaw with piston, to avoid maloperation.
● Anti-slip handle and an optimized center of gravity for easier carry
● Motor drives, Micro-computer control system and double valve hydraulic system.
