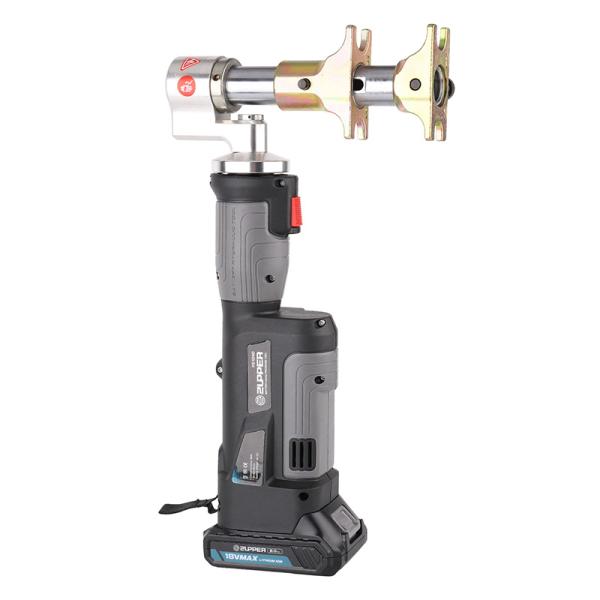

BATTERY POWERED AXIAL PRESS TOOL

PZ-1240

PZ-1240 is mini axial press tool, it is efficient and reliable way to connect PEX with fittings,
it is powered by Li-ion, actuated by motor and controlled by MCU. With two stage hydraulic system.

Output:	18kN
Connecting range:	PEX pipe:16-32mm
	Multi-Layer composite pipe16-25mm
Connecting range:	16x2.2, 20x2.8, 25x3.5, 32x4.4mm
Connecting stroke:	39mm
Service interval:	10000cycles
Voltage of battery:	DC 18V,2.0Ah
Connecting cycle time	Approx. 2.5-5S
Charging voltage:	AC 100V~240V ;50~60Hz
Charging time:	Approx.40mins
Tool size:	408x216x75mm

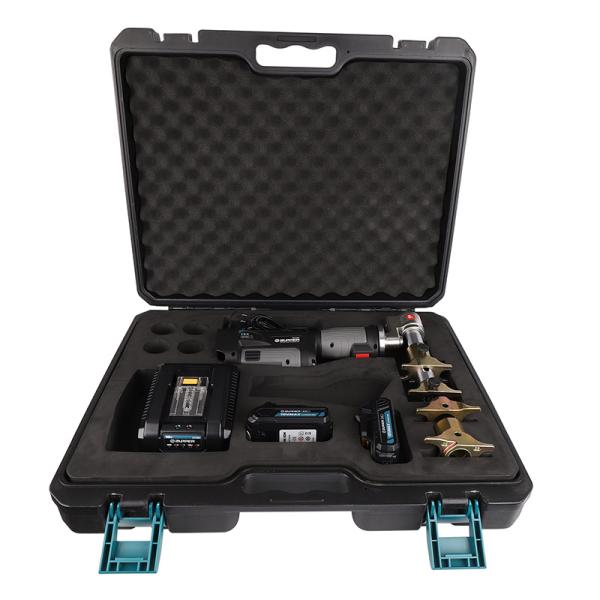

Accessories:
Battery:	2 pcs
Charger:	1 pc
Sealing ring of cylinder:	1 set
Sealing ring of safety valve:	1 set

THE RIGHTTOOL FOR YOUR NEEDS

CIRCUIT BOARD DIAGNOSTICS

Alart you when the battery is low or the tool is too hot or cold

OLED DISPLAY

● Easy reading on

● Battery Percentage

● Pressing Times

● Fault Code

● Maintenance Note

360° SWIVELLING BARREL

Easy access to connections

TWO STAGE HYDRAULIC

Hydraulic Ram Output provides more force for

reliable connection

ERGONOMIC DESIGN

With light weight and in-line grip, easily work overhead

and in tight spaces.

SERVICE INTERVAL: 10000 Cycles

Plumbing Tool, Axial Pressing Tool, Battery Powered Axial Press Tool
