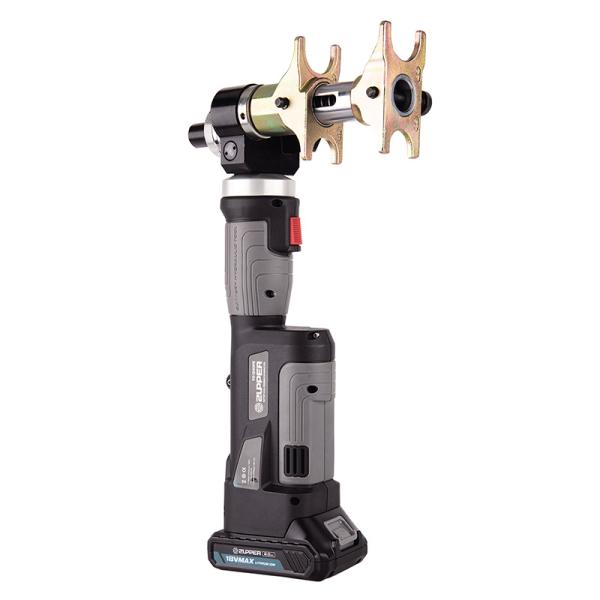

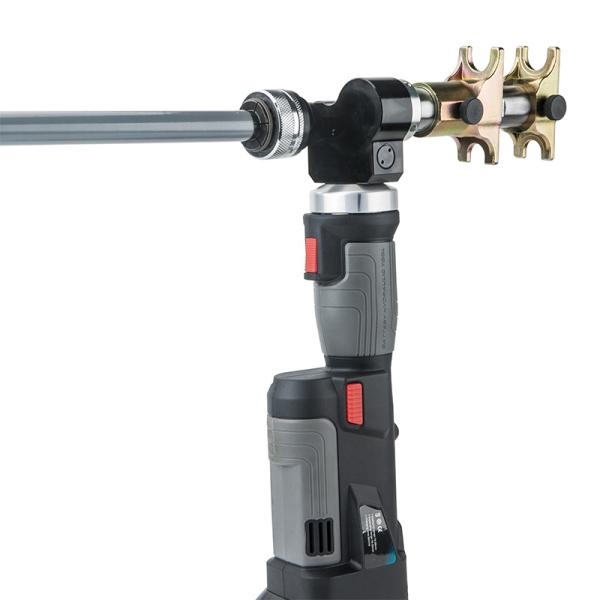

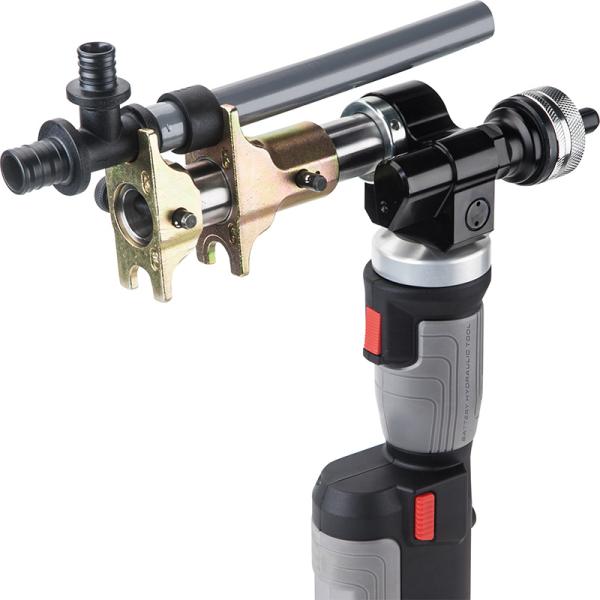

BATTERY POWERED AXIAL PRESS & EXPAND TOOL
PZ-1240PE
PZ-1240PE is mini axial press & expand tool,it is efficient and reliable
way to expand and connect PEX with fittings,it is powered by Li-ion,
actuated by motor and controlled by MCU. With two stage hydraulic
system.
| Output | 18kN |
| Stroke: | 39mm |
| Connecting range: | PEX pipe:16-32mm |
| Multi-Layer composite pipe16-25mm | |
| Expanding/Connecting range: | 16x2.2, 20x2.8, 25x3.5, 32x4.4mm |
| Service interval: | 10000cycles |
| Voltage of battery: | DC 18V,2.0Ah |
| Connecting cycle time | Approx. 2.5-5S |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Charging time: | Approx.40mins |
| Tool size: | 405x242x92mm |

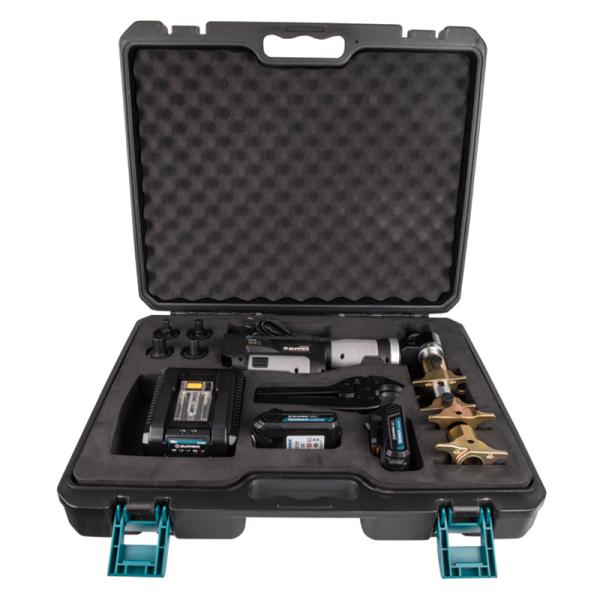

| Accessories: | |
| Battery: | 2 pcs |
| Charger: | 1 pc |
| Sealing ring of cylinder: | 1 set |
| Sealing ring of safety valve: | 1 set |
