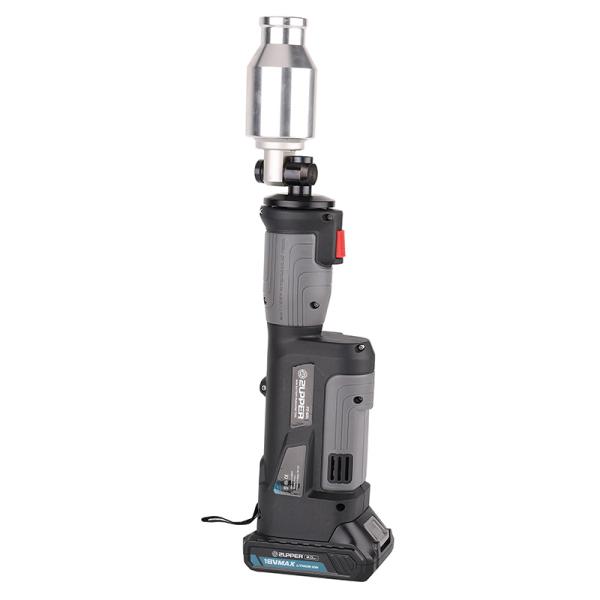

BATTERY POWERED PUNCHING TOOL
PZ-6AL
The ZUPPER PZ Series with the small size and a low weight can generate high power and performance, it is the newest addition to the mini punch driver with in-line grip. The working head rotatable through 360°, no matter whether for straight punchings in steel and stainless steel or confined areas with swivelling head. The tool comes standard with two 18V, 2.0Ah Li-ion batteries and one charger, motor drives, micro-computer control system, OLED display and double valve hydraulic system.
Aluminum alloy body with light weight
180°x360°swivelling head
Ergonomic design with high quality aviation aluminum
| Rated pressure: | 60kN | ||
| Stroke: | 25mm | ||
| Cycles/charge: | 250cycles(Max.mild steel 3mm, Φ49.6mm) | ||
| Piston rod thread: | 3/4-19 UN | ||
| Max. Round Punch Size : | 61.5mm Dia. in 3.5mm mild steel | ||
| 161.9mm Dia. in 2mm mild steel | |||
| 61.5mm Dia. in 2mm stainless steel | |||
| Voltage/capacity: | 18V/2.0Ah | ||
| Charging time: | 40 mins | ||
| Charging voltage: | AC 100V~240V ;50~60Hz | ||

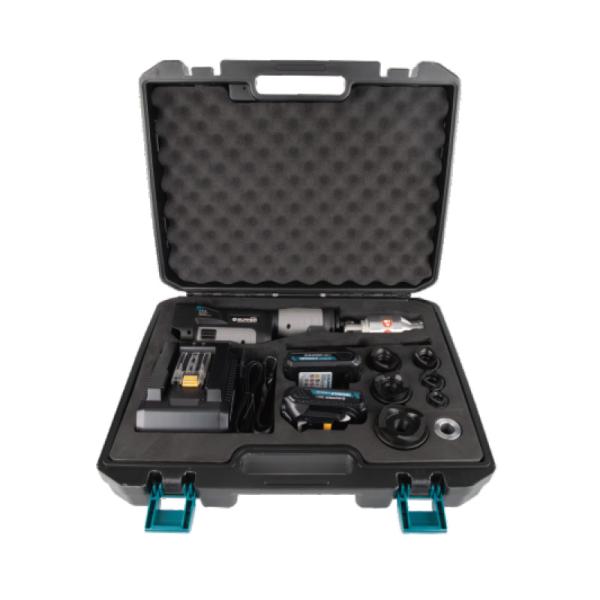

| Package: | Plastic box | ||
| Weight: | 2.6kgs | ||
| Size of tool: | 452x120x75mm | ||
| ACCESSORIES: | |||
| DESCRIPTION | HOLE SIZE (TYPE D) | ||
| Φ(INCH) | Φmm | ||
| 1/2" Conduit Size Punch&Die | 7/8" | 0.885 | 22.50 |
| 3/4" Conduit Size Punch&Die | 1.115 | 28.30 | |
| 1" Conduit Size Punch&Die | 1.362 | 34.60 | |
| 1-1/4" Conduit Size Punch&Die | 1.701 | 43.20 | |
| 1-1/2" Conduit Size Punch&Die | 1-15/16" | 1.951 | 49.60 |
| 2" Conduit Size Punch&Die | 2-3/8" | 2.146 | 61.50 |
| 7/16"×3/4" Draw Stud | 1pc | ||
| 3/4"×3/4" Draw Stud | 1pc | ||
| Spacer | 1pc | ||
| Battery: | 2 pcs | ||
| Charger: | 1pc | ||
| Sealing ring of cylinder: | 1set | ||
| Sealing ring of safety valve: | 1set | ||
