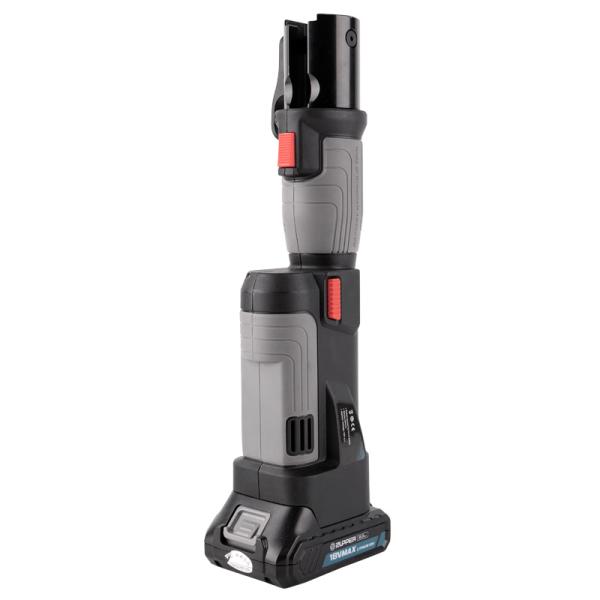

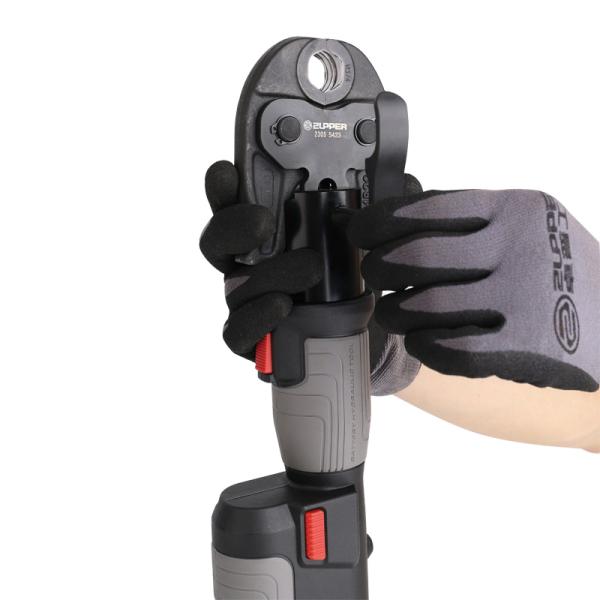

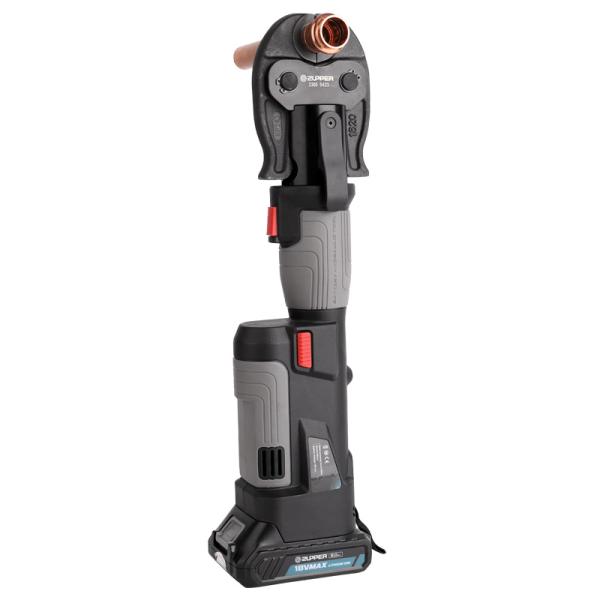

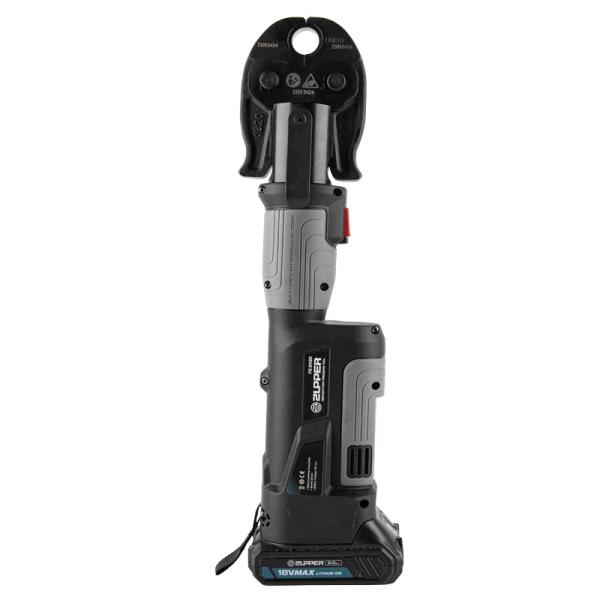

UPDATED BATTERY POWERED PRESS TOOL
PZ-2430
24kN POWERFUL OUTPUT
MAX PRESS φ35mm STAINLESS STEEL PIPE
2.2KG Portable and convenient
● Quality guaranteed
● Core parts are general utilization and standardization
● Ergonomic design
● With light body

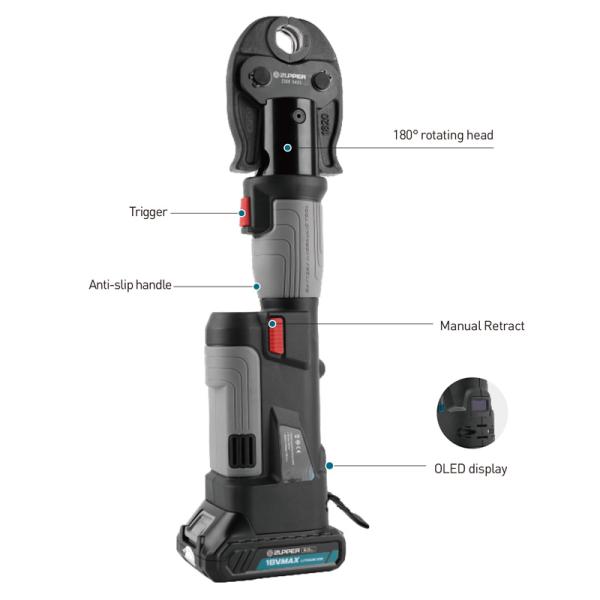

● OLED display shows battery percentage,press cycles,fault code,maintenance note
| Technical data | |||

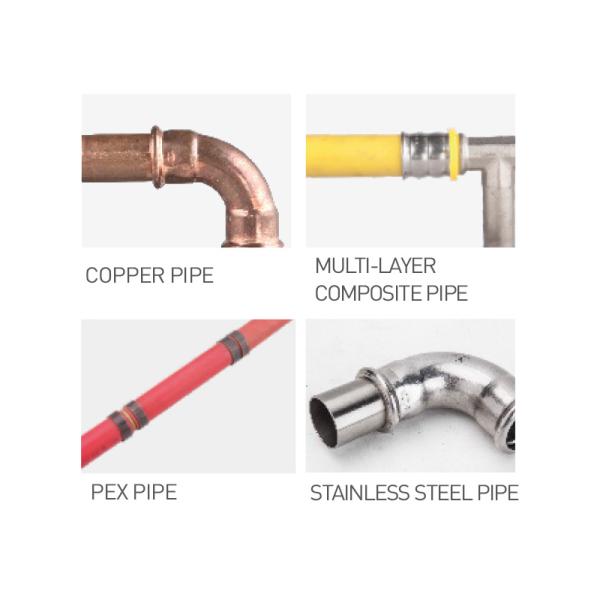

| Capacity: | 12-35mm Stainless steel pipe | Press cycles/charge: | 180cylces(φ20mm stainless steel pipe) |
| 12-35mm(1/2”-1 3/8") Copper pipe | Battery: | 18V 2.0Ah Li-ion | |
| 16-40mm PEX&Multi-layer pipe | Charging voltage: | AC100-240V 50-60Hz | |
| Rated pressure: | 24kN | Charging time: | Approx.40mins |
| Rated power: | 270W | Service interval: | 10000cycles |
| Stroke: | 30mm | Weight: | 3.38kgs(tool with battery and jaw) |
| Press cycle time: | 2.5-5s | Tool size: | 362x122x76mm |

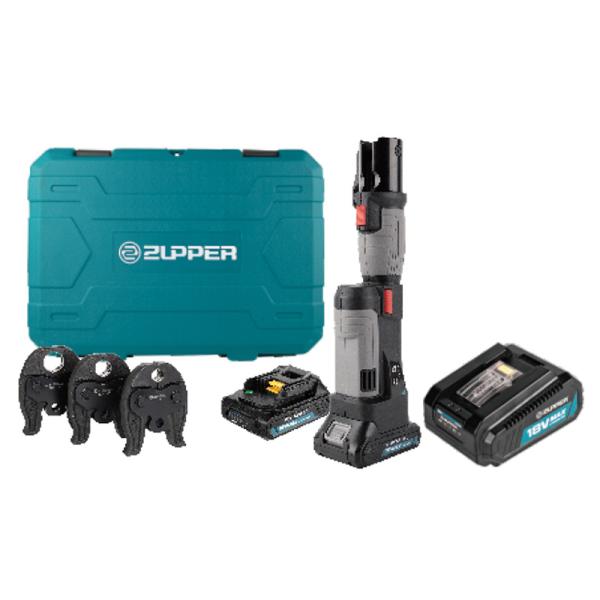

| Accessories | |||
| Model NO. | Description | Weight | Standard pack |
| PZ-2430 | PZ-2430 Battery Press Tool kit without jaws | 4.7Kgs | 1set |
| 18V 2.0Ah Li-ion Batteries | 0.3Kgs | 2pcs | |
| Accessories | Charger | 0.5Kgs | 1pc |
| Plastic case | 1.7Kgs | 1pc | |
| Sealing ring | 1set | ||
