Fuel Transfer Pump Kit
DYB-70DAT,DYB-70DBT,DYB-70DCT
Fuel transfer pumps KIT including: Flow meter, nozzle, hoses and accessories.
SPECIFICATION
Electric compact portable rotary vane pump KIT.
Built-in bypass valve design for safe and dependable fuel delivery.
Available to equip with fuel transfer accessories:
Flow meter, Nozzle and stationary installations.
MATERIALS
· BODY: CAST IRON
· ROTOR: SINTERED STEEL
· VANES: ACETAL RESIN
· SEAL: NBR
· SHAFT: STEEL
· DUTY CYCLE: 30MIN
FEATURES
VOLTAGE: DC
CALIBER: INLET/OUTLET 1"
DANGER
ONLY FOR USE WITH DIESEL FUEL
DO NOT USE FOR/WITH
■ GASOLINE (PETROL)
■ SOLVENTS WITH FLASH POINT＜55℃

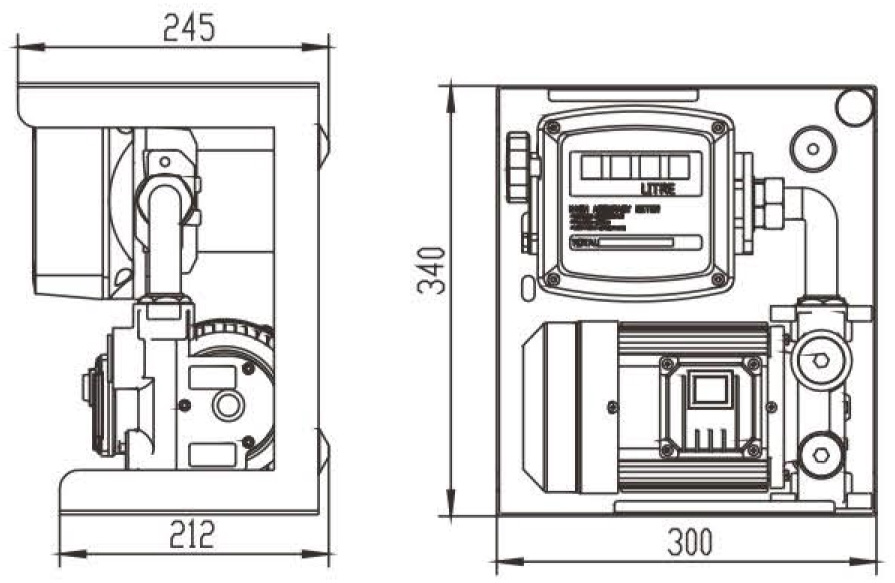

DIMENSIONS
| TECHNICAL DATA | |||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | SPEED RPM | THREADED PORTS BSP | ACCURACY | PRESSURE BAR | Suction M |
| DYB-70DAT-12 |  | 60 | 12 | 550 | 3200 | 1" | ±1% | 1.5 | 3 |
| DYB-70DAT-24 | | 60 | 24 | 550 | 3200 | 1" | ±1% | 1.5 | 3 |
| DYB-70DBT-12 | | 60 | 12 | 550 | 3200 | 1" | ±0.5% | 1.5 | 3 |
| DYB-70DBT-24 | | 60 | 24 | 550 | 3200 | 1" | ±0.5% | 1.5 | 3 |
| DYB-70DCT-12 | | 60 | 12 | 550 | 3200 | 1" | ±0.5% | 1.5 | 3 |
| DYB-70DCT-24 | | 60 | 24 | 550 | 3200 | 1" | ±0.5% | 1.5 | 3 |
