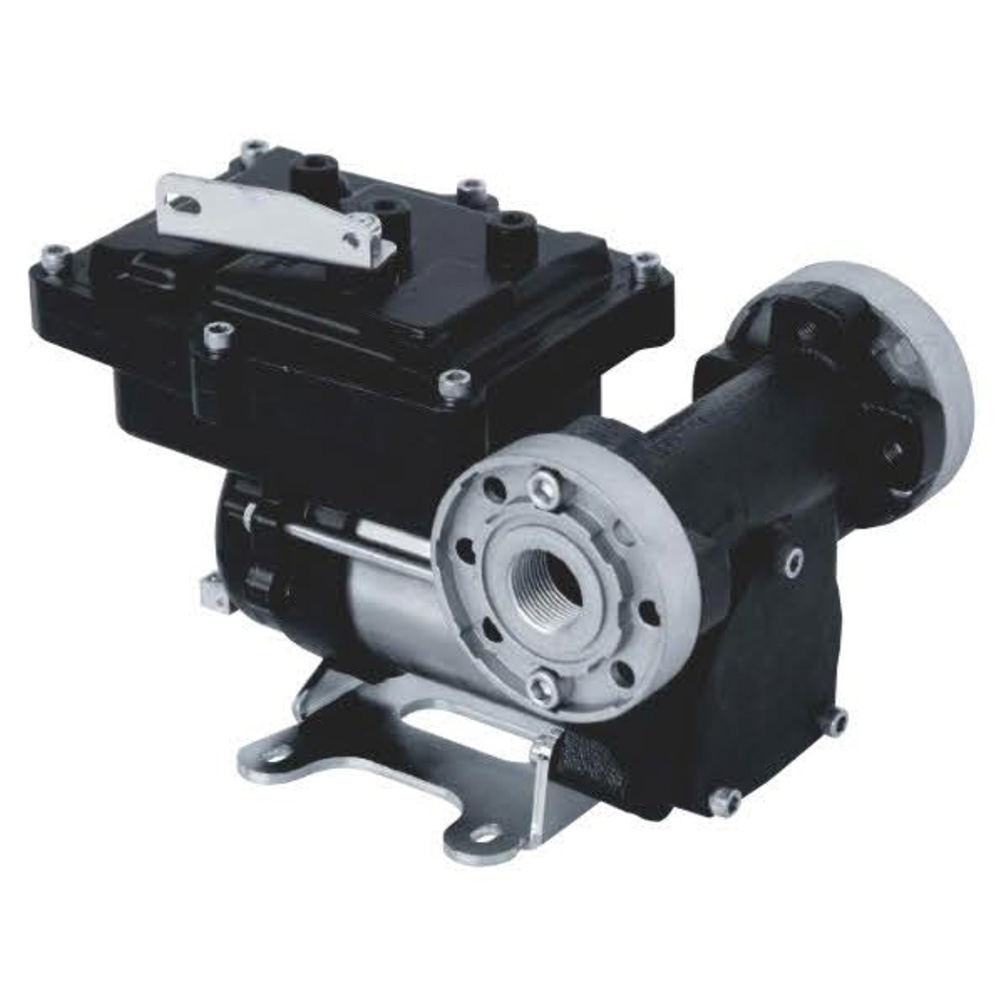

Fuel Pump
DYB-EX50/75
The DYB-EX75 is a compact and sturdy pump that satisfies the strictest ATEX/IECEx requirements concerning the usage of this equipment in potentially explo-sive atmospheres. It is equipped with built-in bypass valve, non-return valve and anti-noise filter.
FEATURES
· COMPACT AND STURDY DESIGN
· FLANGED COMPONENTS
· ANTI-NOISE FILTER
· THERMAL PROTECTION
· SUCTION UNIT WITH INTEGRATED FILTER(DRUM VERSION)
· UL VERSION AVAILABLE
· Pressure:1.5Bar
PERFORMANCE
FLOW RATE: UP TO 50/75 L/MIN
VOLTAGE: DC
POWER: 250W
CALIBER: INLET/OUTLET 1"
MATERIALS
· BODY: CAST IRON
· ROTOR: SINTERED STEEL
· VANES: PPS
· SEAL: VITON
· SHAFT: STEEL
DETAILS
DIMENSIONS
| TECHNICAL DATA | ||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | AMP. MAX. A | SPEED RPM | INLET BSP | Suction M |
| DYB-EX50-12V |  | 50 | 12 | 250 | 21 | 2700 | 1" | 3 |
| DYB-EX50-24V | | 50 | 24 | 250 | 11 | 2700 | 1" | 3 |
| DYB-EX75-12V | | 75 | 12 | 250 | 20 | 2700 | 1" | 3 |
| DYB-EX75-24V | | 75 | 24 | 250 | 10 | 2700 | 1" | 3 |
