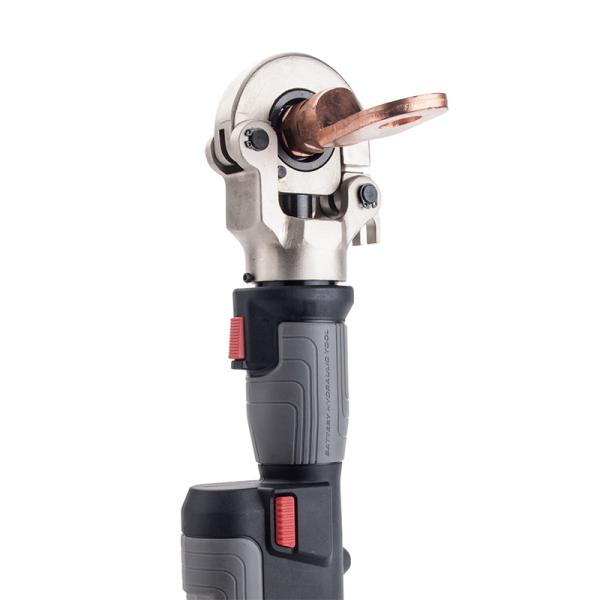

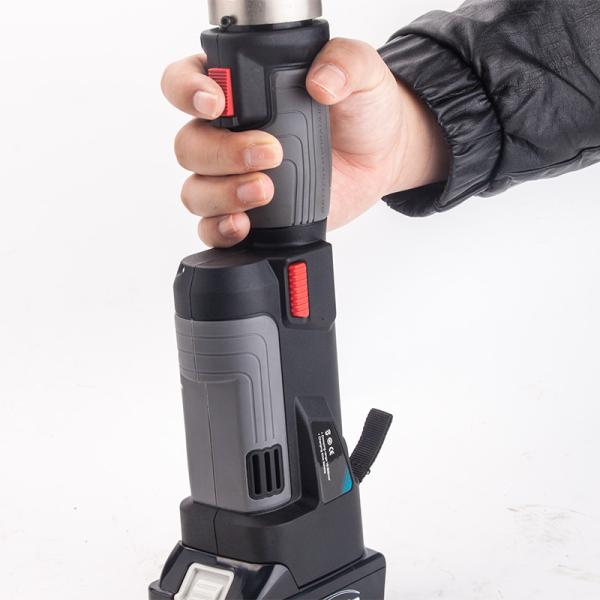

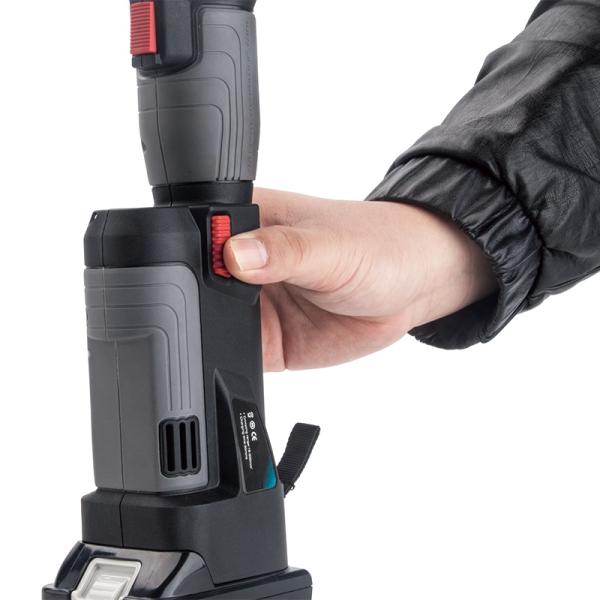

BATTERY POWERED CRIMPING TOOL
PZ-300
The ZUPPER PZ Series with the small size and a low weight can generate high power and performance,it is the newest addition to the mini crimp tool with in-line grip, 2-4 Seconds CRIMP cycle time.
| Rated pressure: | 60kN |
| Stroke: | 17mm |
| Crimping range: | Cu 300mm²/Al 240mm² |
| Time/work: | 2.5-4s(depend on the dia of cable) |
| Voltage/capacity: | 18V/2.0Ah |
| Charging time: | Approx.40 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Ambient temperature | -10-40℃ |
| Size of tool: | 428x134x75mm |
| Weight: | 3.9kgs(with battery) |
| ACCESSORIES | |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
Related Products
HAND CRIMPING TOOL
AP-03C
HAND CRIMPING TOOL
AN-35WF
HAND CRIMPING TOOL
AP-006
HAND CRIMPING TOOL
AH-03C
MECHANICAL CABLE CUTTING TOOL
ZC-36A/60A
RECTANGULAR KNOCKOUT PUNCHES
Type G

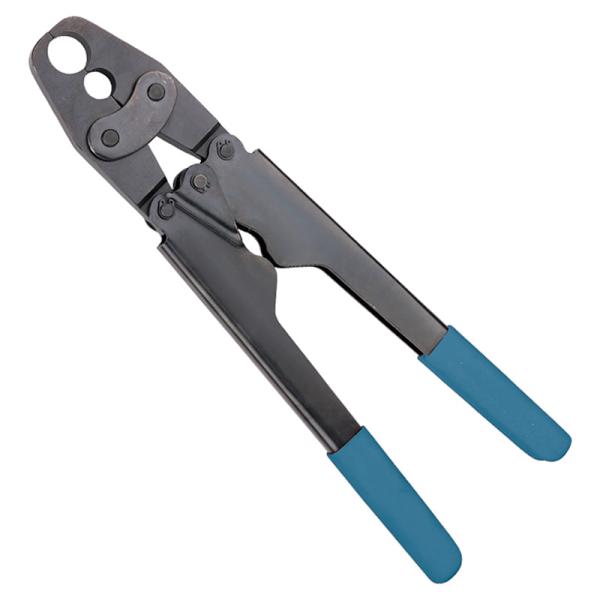

MANUAL AXIAL PRESS TOOL
