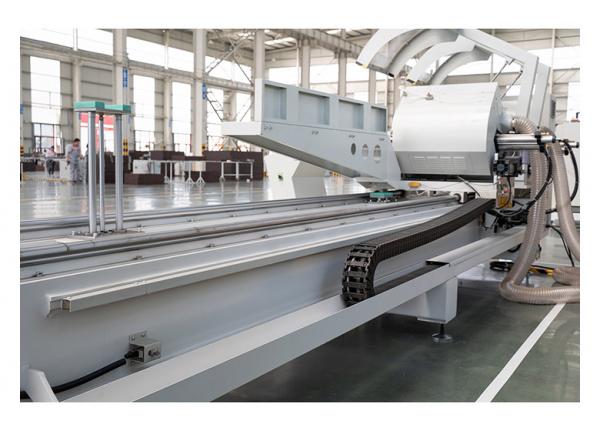

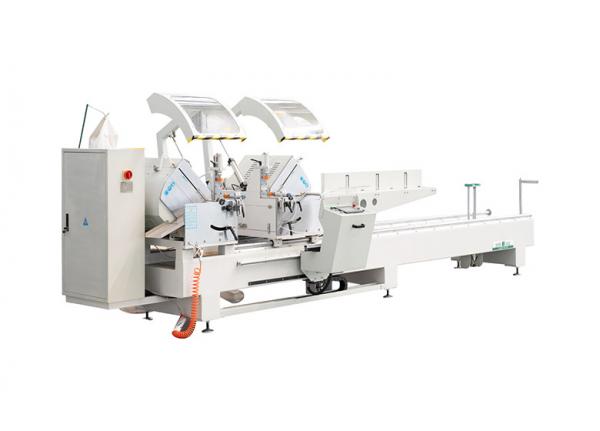

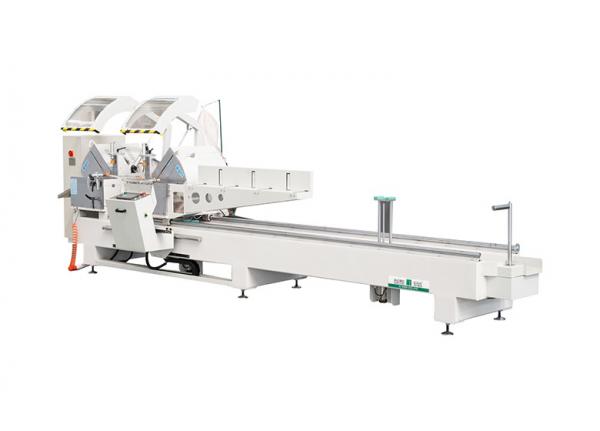

CNC Double-head Miter Precision Cutting Saw for Aluminum and PVC Profile
LJJ2AS-500*4200
1. Schneider CNC system & automatic profile supporting system
2. Driven by rack, the right machine head horizontally moves with precise repeat orientation，The repetitive positioning accuracy can reach 0.02mm.
3. Available to input a series of data (cutting length & quantity) to realize the continuous cutting
4. Saw blade:Diamond ZhiGuang; Cable & electric wires: YiChu; Pneumatic components: AirTAC
5. Saw blade feeding driven by hydraulic damping cylinder through HIWIN linear guide rail pair
Double Head Saw, CNC Aluminium Double Head Mitre Saw
Double Head Saw, CNC Aluminium Double Head Mitre Saw
Double Head Saw, CNC Aluminium Double Head Mitre Saw
Input power | 7.7kW |
Power supply | 380V/3Phase/50Hz |
Air pressure | 0.5~0.8Mpa |
Cutting length | 320~4200mm |
Cutting angles | 90°,45° |
Saw blade rotating speed | 2800r/min |
Saw blade specification | 500*4.4*3.6*30*120p500*4.4*3.6*30*120p |
Max cutting width/height | 138mm/ 290mm |
Overall dimension | 5560*1750*1900mm |
Weight | 1900Kg |
