Vertical Milling Machine: Precision Versatility for Complex 3D Contouring

What is a Vertical Milling Machine?

A Vertical Milling Machine (VMC) positions the spindle perpendicular to the worktable, enabling drilling, tapping, and 3D contouring. Its accessibility makes it ideal for toolrooms, aerospace, and mold-making.

Categories & Capabilities

1. Knee-Type Mills
   • Manual adjustment for R&D; max 1,000 × 500 mm table.
2. Bed-Type VMCs
   • Rigid construction for production (e.g., automotive molds).
3. 5-Axis VMCs
   • Tilting rotary tables for complex geometries.

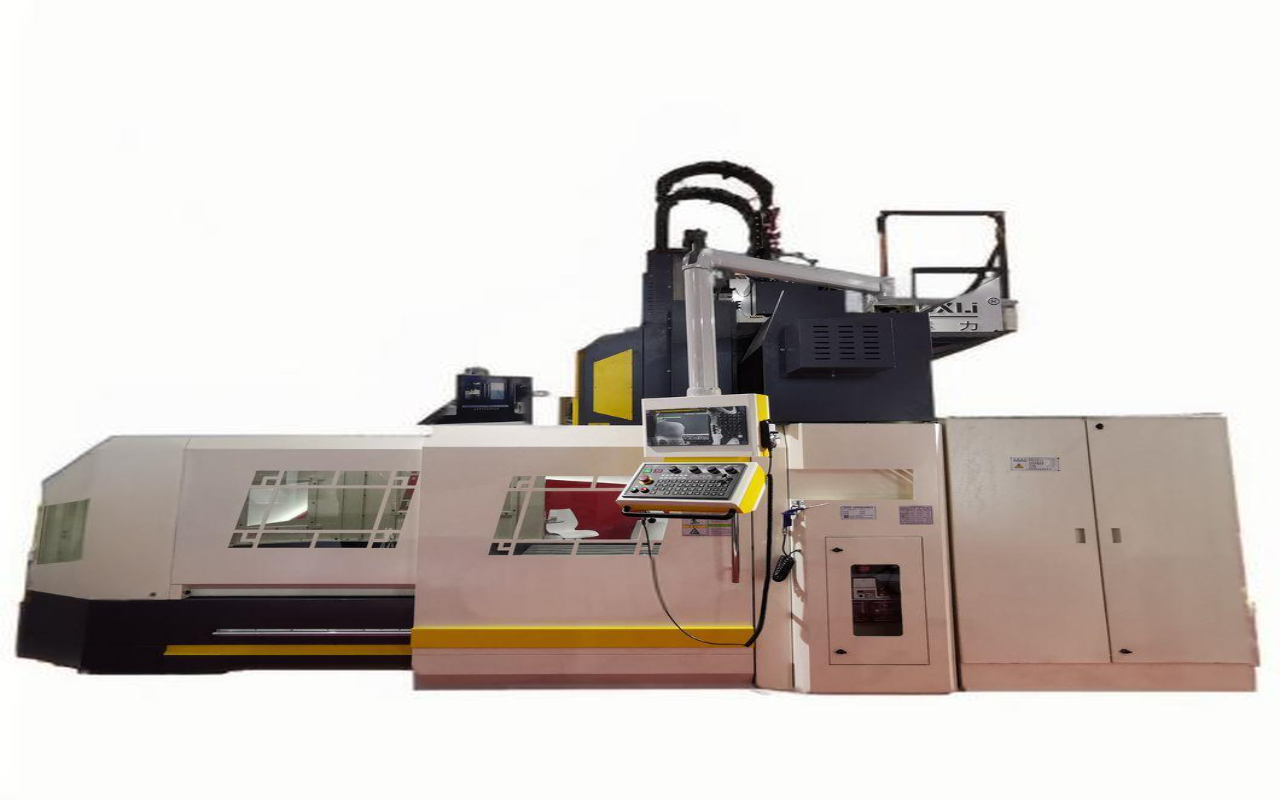

4. Gantry Mills
   • Bridge-style for extra-large parts (5 m × 2 m).

Key Benefits

✔ Operator-Friendly: Easy tool changes and visibility.
✔ Precision: Achieves ±0.01 mm tolerances with ball screws.
✔ Space Efficiency: 30% smaller footprint than HMCs.
✔ Versatility: Machines plastics, composites, and non-ferrous metals.

Applications

• Aerospace: Wing ribs, turbine blades.
• Medical: Implant molds, surgical guides.
• Electronics: Heat sinks, PCB fixtures.

Operation Steps

1. Work Setup: Vacuum chuck or vises secure material.
2. Tool Loading: Automatic tool changer (ATC) with 24+ tools.
3. Multi-Axis Machining:
   • 3D contouring at 10,000–20,000 RPM.
   • Drilling/tapping with rigid tapping cycles.
4. Probing: In-process inspection for critical features.
