BATTERY POWERED PRESS TOOL
PZ-5050

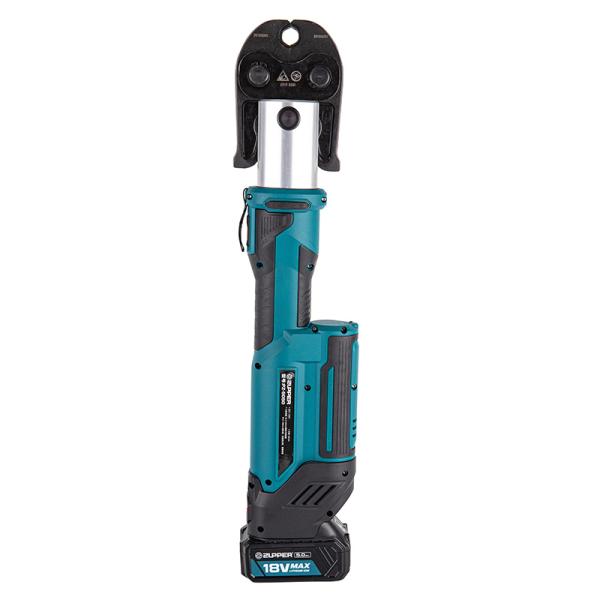

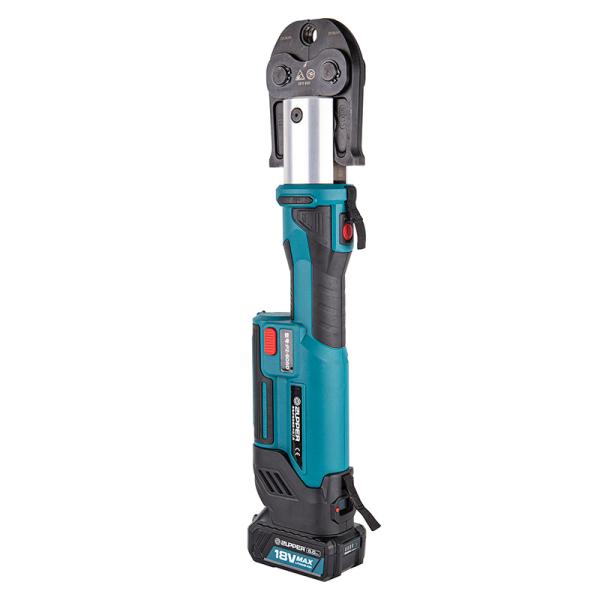

The PZ-5050 is a pessing tool with in-line grip, which is
compatible for different standard of pipes up to 50mm
in domestic market and up to 54mm in Europe market.
● 12-54mm(1/2"-2") Stainless steel pipe
● 12-108mm(1/2"-4") for PEX, Multi-layer composite and Copper pipe
| Pressing range: | 12-54mm for stainless steel pipe |
| 12-108mm(1/2"-4") for copper pipe,PEX,XPAP | |
| Rated pressure: | 50kN |
| Stroke: | 50mm |
| Time/work: | 3-6s(depend on the dia of pipe) |
| Cycles/charger: | 180cycles |
| Battery: | 18V Li-ion 4.0Ah |
| Charging voltage: | AC 100V-240V 50-60Hz |
| Charging time: | Approx.80mins |
| Service Interval: | 10000cycles |
| Weight: | 4.9kgs(with battery) |
| Accessories | |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of Safety valve | 1set |
