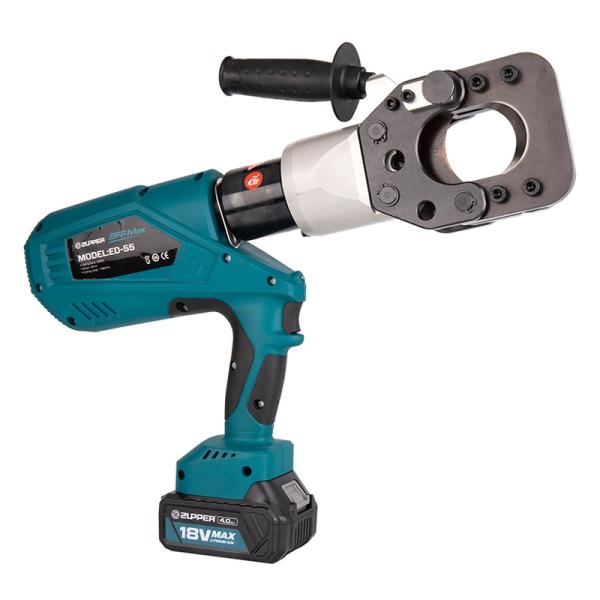

BATTERY POWERED CABLE CUTTING TOOL
ED-55
The ED Series give another option for a fast and reliable way to cut operation. ZUPPER get the tool to cut different kind of cables, include armoured Cu/Al cable, ACSR, Cu/Al Cable, The tool comes standard with two 18V, 4.0Ah Li-ion batteries and one charger, motor drives, Micro-computer control system, OLED display and two stage hydraulic system with fast feed and power control
| Cutting force: | 120kN |
| Stroke: | 58mm |
| Hydraulic oil: | Shell Tellus T15# S2V HV15 |

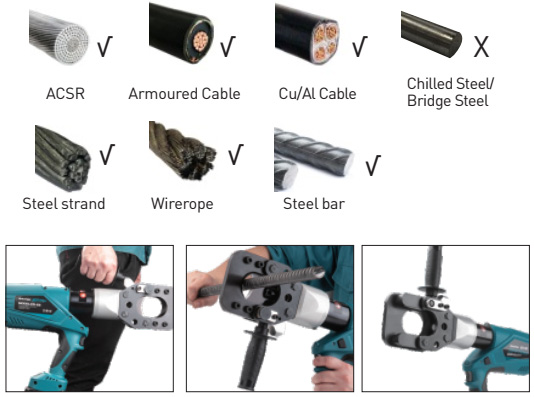

| Cutting range: | ≤φ55mm |
| Armoured Cable | ≤φ55mm |
| ACSR: | ≤φ52mm |
| Cu/Al cable: | ≤φ55mm |
| Steel strand: | ≤φ20mm |
| Wire rope: | ≤φ25mm |
| Size of tool: | 458x354x83mm |
| Voltage/capacity: | DC 18V/4.0Ah |
| Charging time: | 80 mins |
| Package: | Plastic box |
| Accessories: | |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve: | 1set |

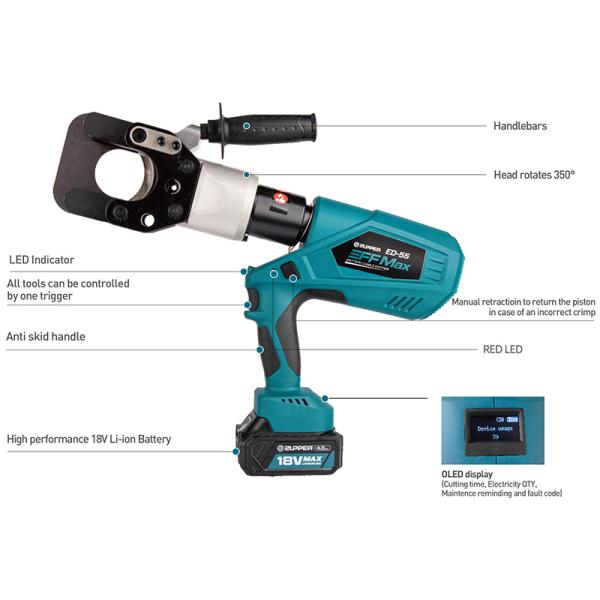

● OLED Data Display to show cutting time, Electricity Quantity,
maintenance reminding and fault code.
● Air Cooling Heat dissipation System to extend using life.
● Cutting head rotates 350°
● Two stage hydraulic system with fast feed and power control
● Quick motor stop guarantees highest safety for the operator
● Automatic retraction when cut is completed
● Electronic control and monitor of Cutting operation
● Ergonomic design and optimized position of centre of gravity

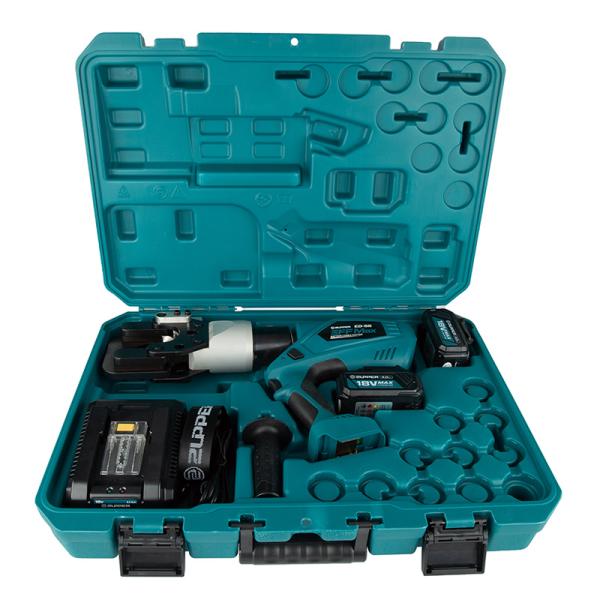

Kit includes:
one cutting tool,two 4.0Ah Batteries,
one charger and carrying case
