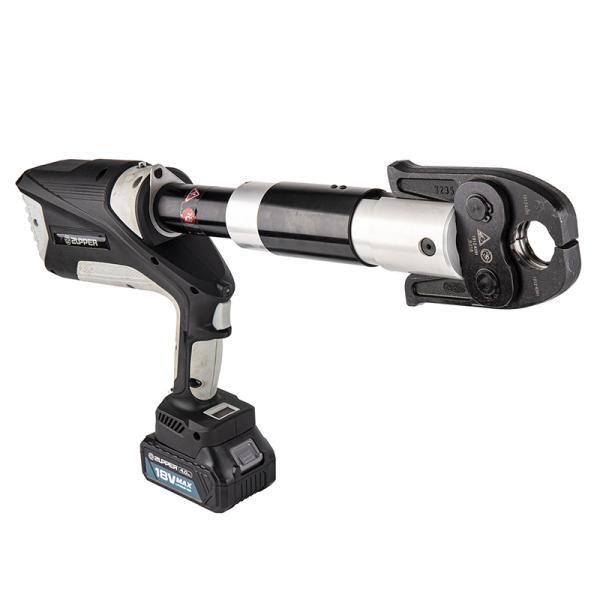

BATTERY POWERED PRESS TOOL
EB-32100
To be standard constitutor in hydraulic tool field,ZUPPER develop the
technology of brushless motor,no carbon brush,maintenance-free,motor overload
protection and 30% Longer motor life,the brushless motor will do more work in
the same full charge of the battery pack,30% more run-time than the brush motor.
(b)BLUETOOTH AND PRESSURE SENSOR(/b)
Thanks to new implemented Bluetooth technology, device
-related data can be requested via the ZUPPER APP.The ZUPPER
EB Series include BLUETOOTH asbasic configuration,you can
choose pressure sensor at optional.
(b)ZUPPER Check-APP(/b)
● Data transfer between press tool and APP
● See the location of where your ZUPPER Link enabled tool was last seen.
● Check the pressure by pressure sensor to differentiate the pressure normal or not.
● APP shows the pressure data counter to check and analyze the pressure easily
| TECHNICAL DATA | EB-32100 | |
| Capacity: | 12-54mm for stainless steel pipe | |
| 12-108mm(1/2"-4") for PEX,Multi-layer and copper pipe | ||
| Output: | 32kN | |
| Stroke: | 40/60/100mm(adjustable) | |
| Cycle time: | 3-6s(depands on diameter of pipe) | |
| Oil capacity: | 250ml | |
| Pressing cycles/charge | 360cycles(DN20 stainless steel) | |
| Battery: | 18V Li-ion 4.0Ah | |
| Charger: | AC 100V-240V 50-60Hz | |
| Charging time: | Approx.80mins | |
| Service Interval: | 10000cycles | |
| Weight: | ||
| Tool Size: | 525x318x86mm | |
| ACCESSORIES | ||
| EB-32100 | Weight(kgs) | |
| Accessories: | Battery Press Tool Kit without jaws: | |
| 18V Li-ion 4.0Ah | 0.6 | |
| Charger | 0.5 | |
| Plastic case | 4.1 | |
