BATTERY POWERED MULTI-FUNCTIONAL TOOL
ED-120UNV
Quick change among crimping,cutting and punching
Easy Operation
| Rated pressure: | 120kN |
| Stroke: | 23mm |

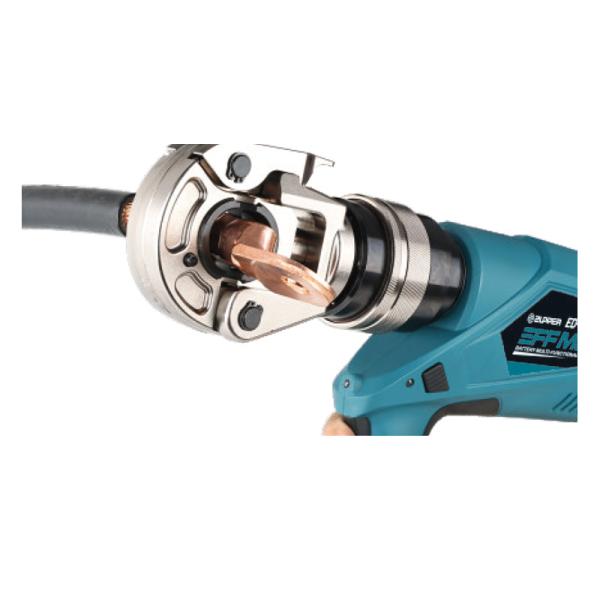

| Crimping range: | Cu 16-400mm² |

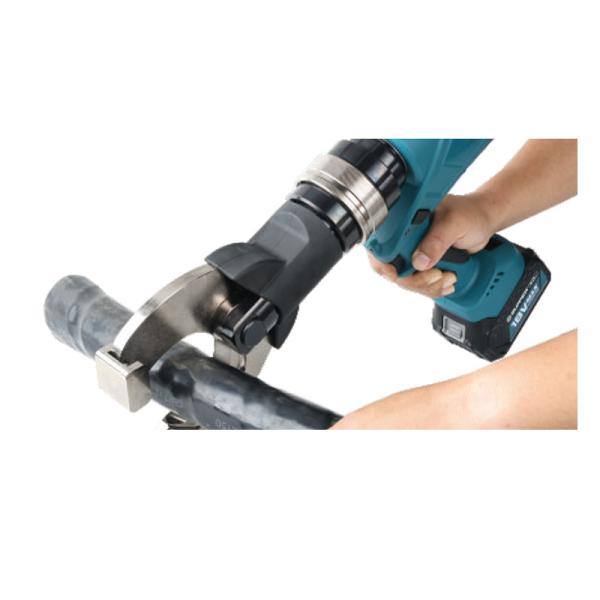

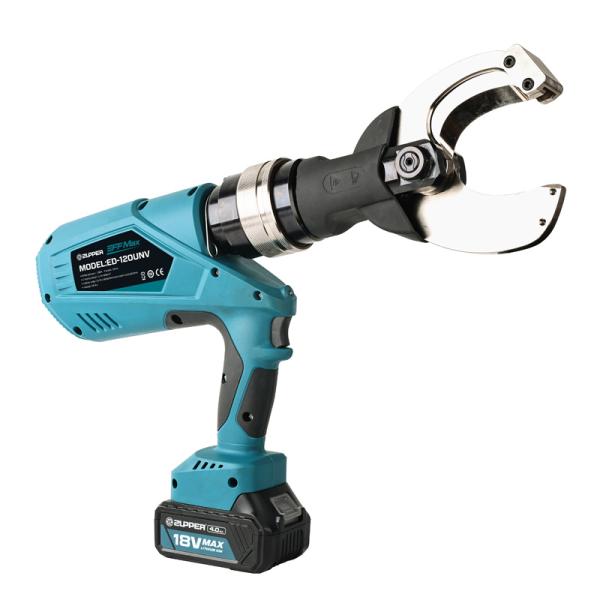

| Cutting range: | Cu/Al cableΦ65mm,Armoured Cable Φ50mm |

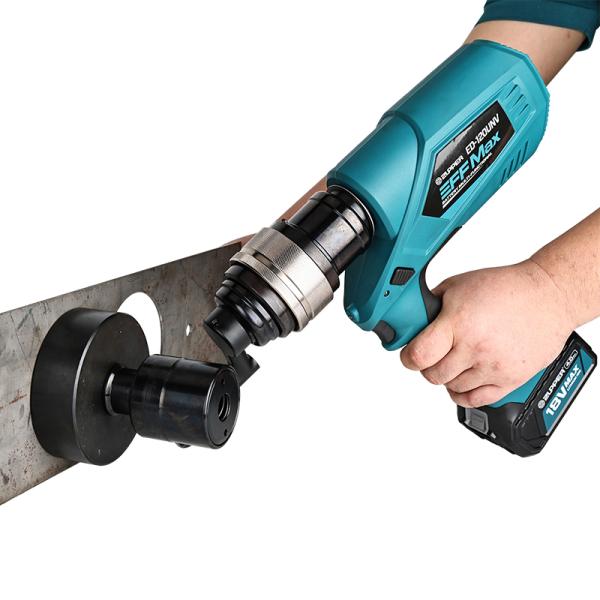

| Punching range: | Φ61.5mm in 3.5mm mild steel |
| Battery: | 18V Li-ion 4.0Ah |
| Charger: | AC 100V-240V 50-60Hz |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
● 350° rotary crimping head ,working at any site
● Two stage hydraulic system with high efficiency
● OLED display shows battery percentage, working time, maintenance reminding,errors info etc
