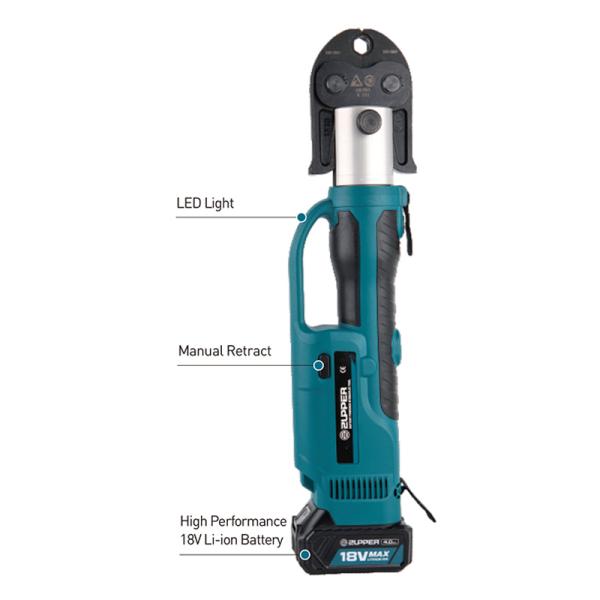

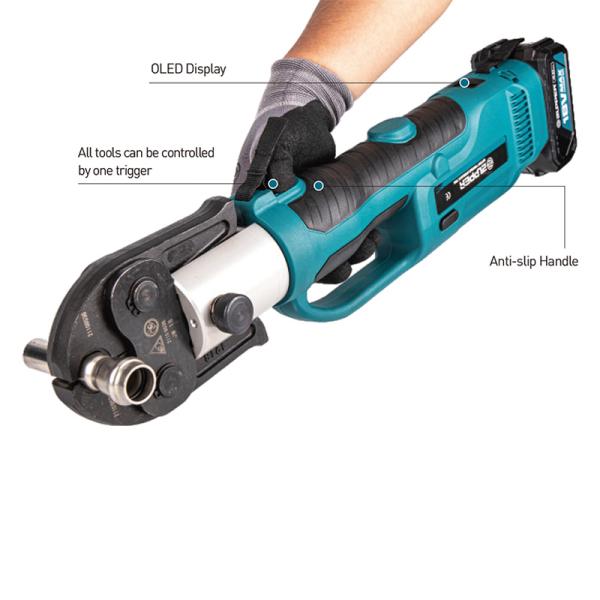

BATTERY POWERED PRESS TOOL
PZ-1550
The PZ-1550 is a press tool with in-line grip, it is efficiency and durability to join copper, stainless steel and PEX&Multi-layer Pipe. Only 3S to finish one cycle press, suitable for most of authorized jaws of other system manufacturers in the market.
● 12-54mm(1/2"-2") Stainless steel pipe

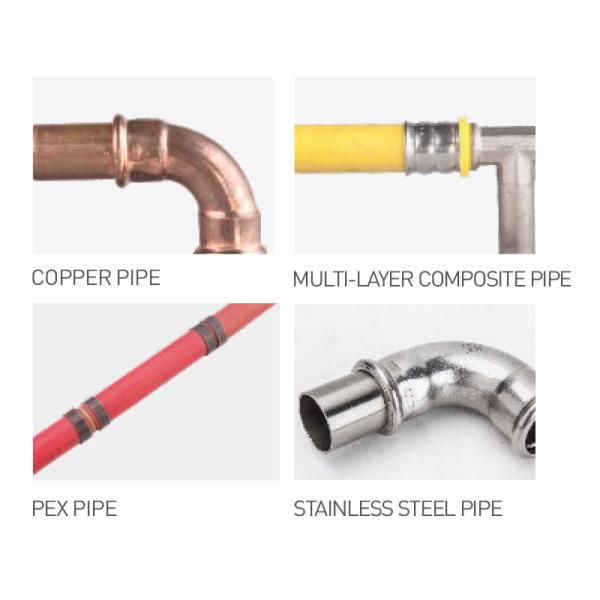

● 12-108mm(1/2"-4") for PEX, Multi-layer and Copper pipe
| Capacity: | 12-54mm for stainless steel pipe | Battery: | 18V Li-ion 4.0Ah |
| 12-108mm(1/2”-4”) for PEX,Multi-layer composite | Battery Charger: | AC 100-240V | |
| and copper pipe | Charging Time: | Approx.80mins | |
| Output: | 32kN | Service Interval: | 10000cycles |
| Stroke: | 40mm | Weight: | Approx.3.9kgs (tool with battery) |
| Cycle Time: | Approx.3-4.5 seconds | Approx.6.1kgs(tool with battery and jaw) | |
| Oil capacity: | 115ml | Tool Size: | 466×126×82mm |

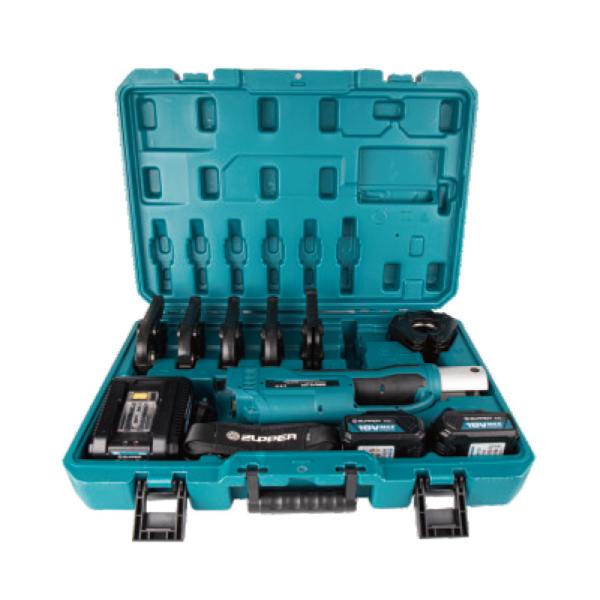

| PZ-1550 Battery Press Tool Kit | |||
| MODEL NO. | DESCRIPTION | Weight(kgs) | |
| PZ-1550 | PZ-1550 Battery Press Tool Kit without jaws | 9.20 | |
| Battery, 18V, 4.0Ah Li-Ion | 0.60 | ||
| ACCESSORRIES | Charger | 0.50 | |
| Plastic case | 4.20 | ||
Related Products
HAND CRIMPING TOOL
AH-04WFL
BATTERY POWERED PRESS TOOL
SL-1930
MANUAL HYDRAULIC CRIMPING TOOL
FYQ-1000
REBAR CUTTER
CPC-16A

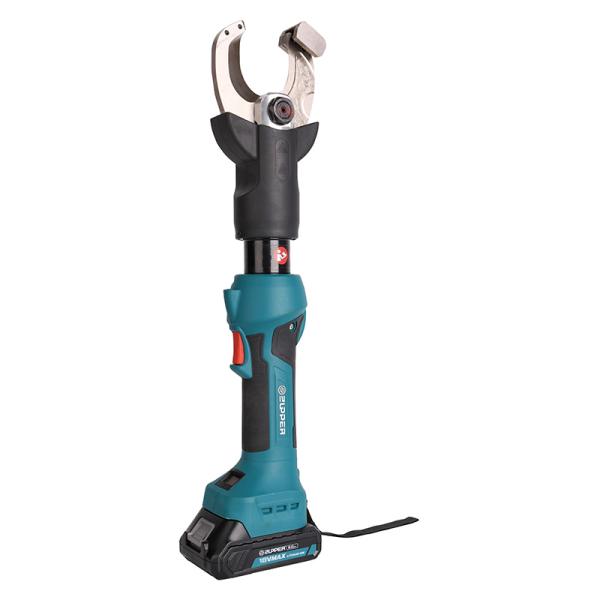

BATTERY POWERED CABLE CUTTING TOOL
