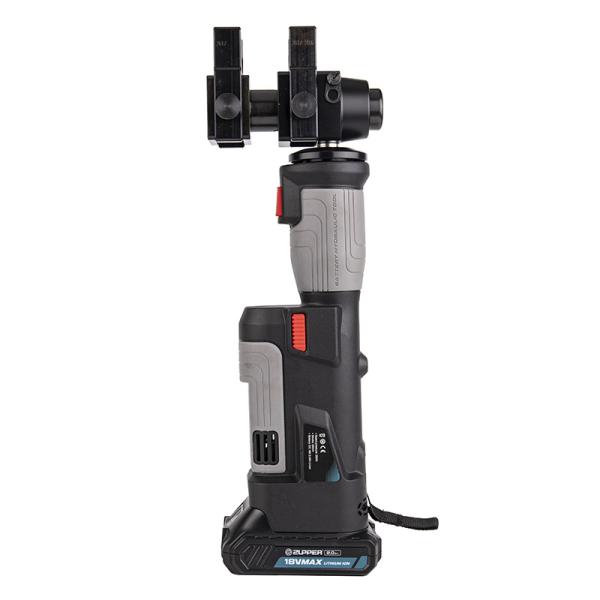

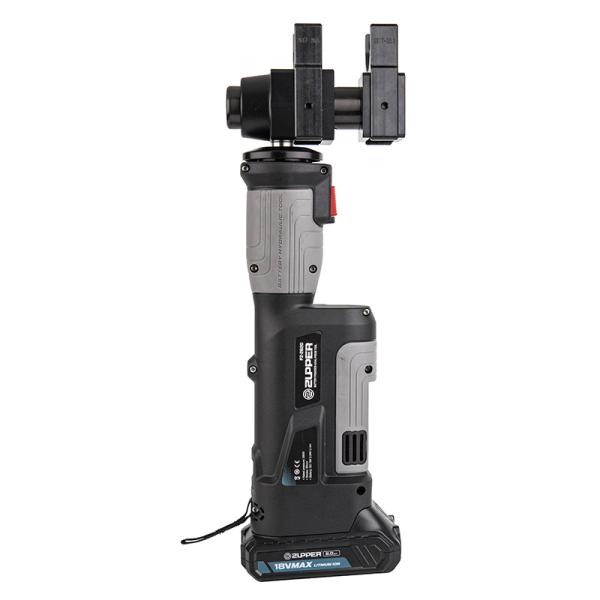

BATTERY POWERED AXIAL PRESS TOOL
PZ-2620

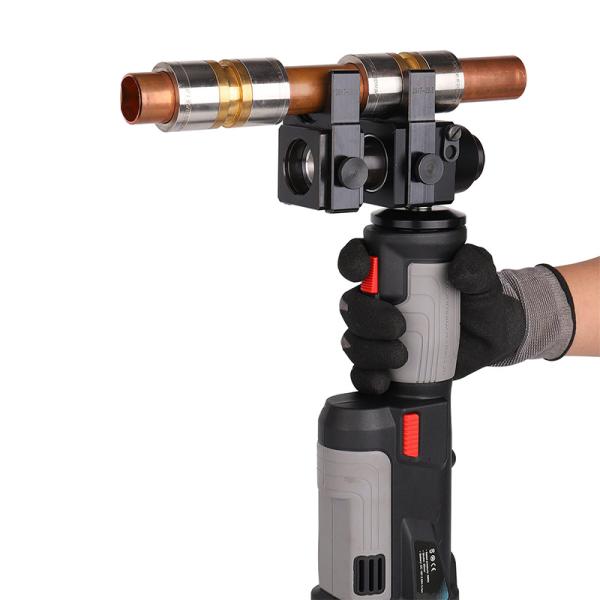

PZ-2620 is the axial press tool for air conditioning pipe connecting.
It is powered by Li-ion, actuated by motor and controlled by MCU. With double valve hydraulic system,
it is a perfect tool to be used in air conditioning systems, heating systems, refrigeration systems and water supply systems
| Rated pressure: | 26kN | Stroke: | 20mm |
| Connecting range: | φ6.35-28.6mm copper pipe | Battery: | DC 18V,2.0Ah |
| Charging voltage: | AC 100V~240V ;50~60Hz | ||
| Charging time: | Approx.40mins | Ambient temperature: | -10℃~40℃ |
| Oil capacity: | ≈60ml | Weight: | 3.7kgs(with battery,with jaws) |
| ACCESSORIES: | |||

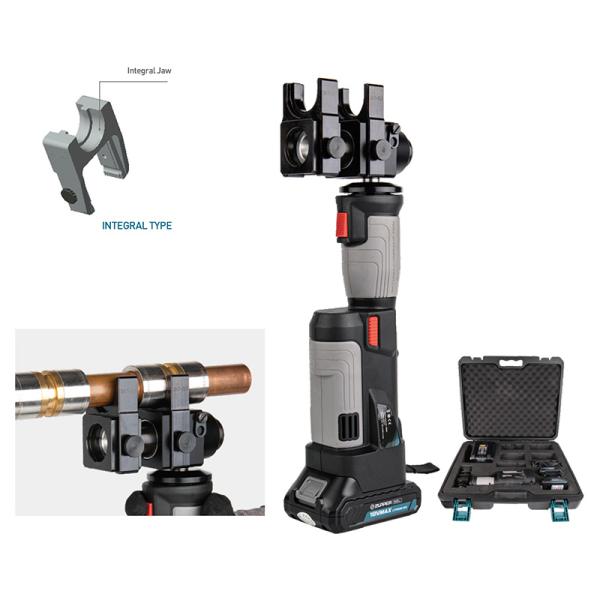

| Connecting jaws(optional): | 6.35、9.52、12.7、15.88、19.05、22.2、25.4、28.6mm (Integral type) | ||

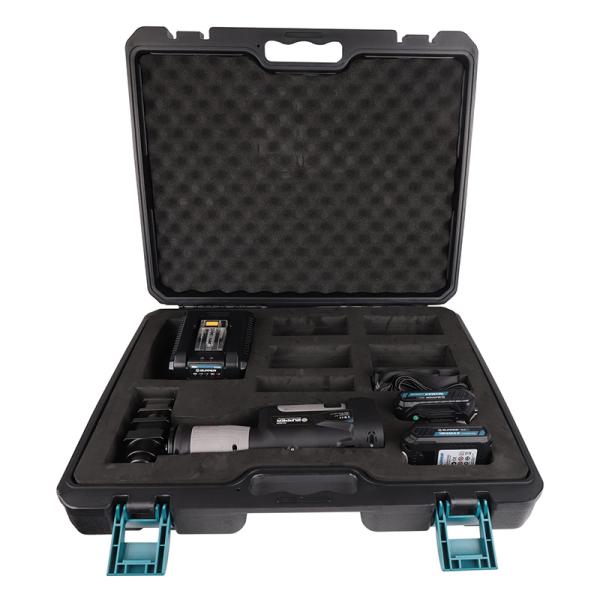

| Battery: | 2 sets | ||
| Charger: | 1 set | ||
