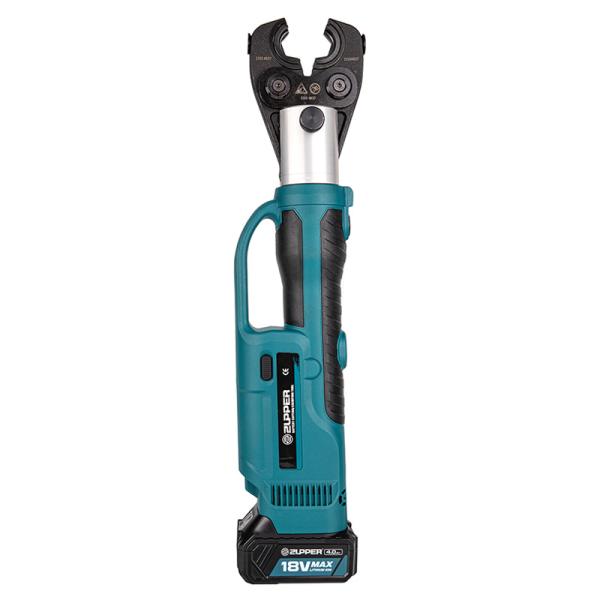

BATTERY POWERED HYDRAULIC CRIMPING & CUTTING TOOL
PZ-400C
For operations require varied application, the ZUPPER offers a multi-functional tool, crimping and cutting in one tool. With the safety design of quick latch, we can switch two different heads in 5 seconds. An ergonomic, in-line design provides in-field versatility so you can work in tight space.
QUICK EXCHANGE TWO FUNCTIONS
CRIMPING & CUTTING
SAVE TIME, SAVE COST
| Rated pressure: | 32kN |
| Stroke: | 40mm |
| Max cutting: | φ40mm Cu/Al cable (It is not suitable for cutting fine strand and extra fine cables) |
| Crimping range: | Cu 16-400mm²(Tubular lug) |
| Time/work: | 3-6s(depend on the dia of cable) |
| Voltage/capacity: | 18V/4.0Ah |
| Charging time: | Approx.80mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Ambient temperature | -10℃~40℃ |
| Weight: | 3.9kgs(without jaws and battery) |
| Size of tool: | 450x81x128mm |
| ACCESSORIES | |

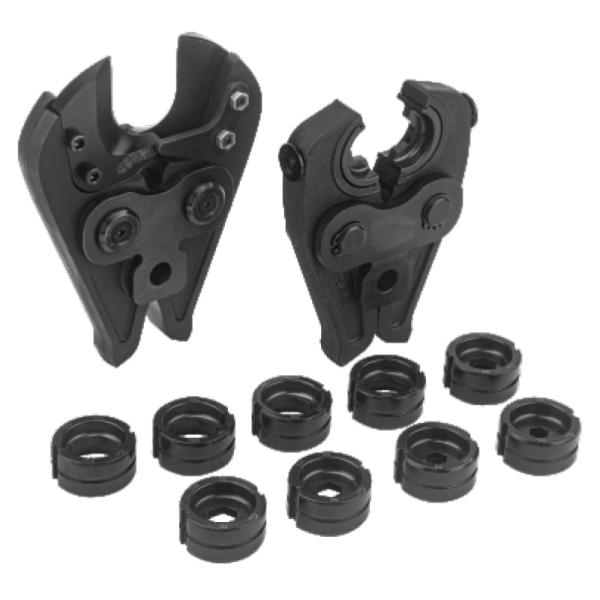

| Crimping head: | 16,25,35,50,70,95,120,150,185,240,300,400mm² |
| Cutting head: | 1pc |
| Battery: | 1pc |
| Charger: | 2pcs |
| Sealing ring of cylinder: | 1pc |
| Sealing ring of safety valve: | 1set |
| 1set | |
