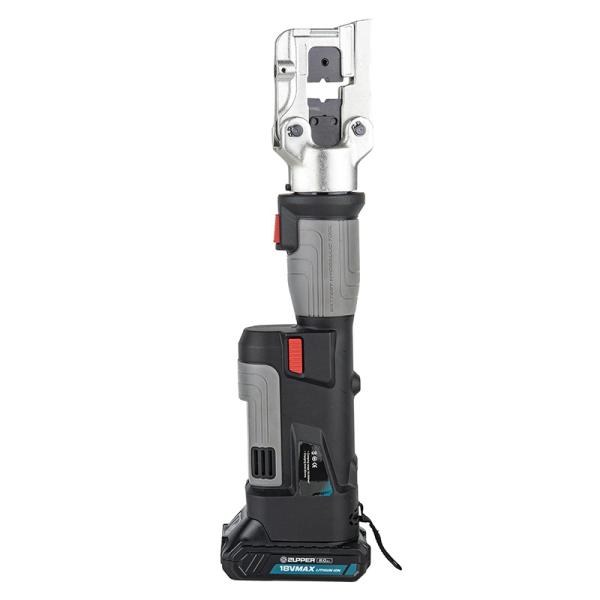

BATTERY POWERED CRIMPING TOOL
PZ-240
The ZUPPER PZ Series with the small size and a low weight can generate high power and performance,it is the newest addition to the mini crimp tool with in-line grip, 2-4 Seconds CRIMP cycle time.
| Rated pressure: | 50kN |
| Stroke: | 14mm |
| Crimping range: | Cu 240mm²/Al 185mm² |
| Time/work: | 2.5-4s(depend on the dia of cable) |
| Voltage/capacity: | 18V/2.0Ah |
| Charging time: | Approx.40 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Ambient temperature | -10-40℃ |
| Size of tool: | 432x124x75mm |
| Weight: | 2.9kgs(with battery) |
| ACCESSORIES | |
| Crimping dies: | 10-16,25-35,50-70,95,120,150,185,240mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
