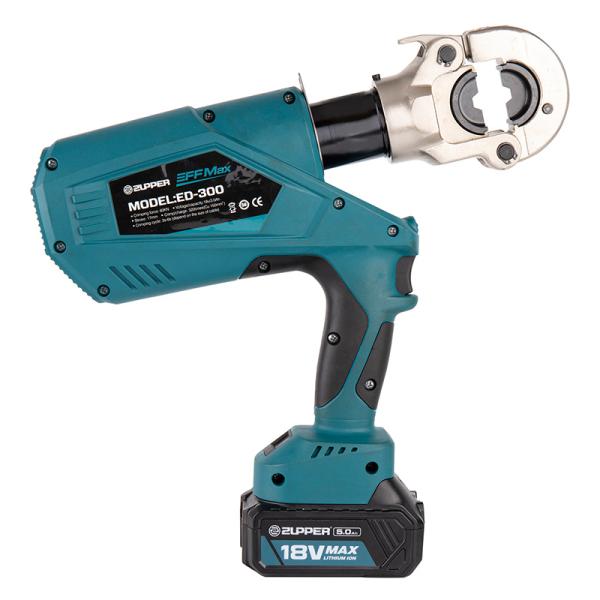

BATTERY POWERED CRIMPING TOOL
ED-300
Rated pressure: | 60kN |
Stroke: | 17mm |
Oil capacity: | 115ml |
Max crimping: | Cu 300mm²/Al 240mm² |
Cycle time | 2.5~5s (CU 150 mm²) |
Cycles/charger: | Approx.300 cycles (CU 150 mm²) |
Voltage/capacity: | 18V/4.0Ah |
Charging time: | Approx.80 mins |
Charging voltage: | AC 100V~240V ;50~60Hz |
Package: | Plastic box |
Weight incl. battery: | 4.6kgs |
ACCESSORIES | |
Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300 mm² |
Battery: | 2pcs |
Charger: | 1pc |
Sealing ring of cylinder: | 1set |
Sealing ring of safety valve | 1set |
