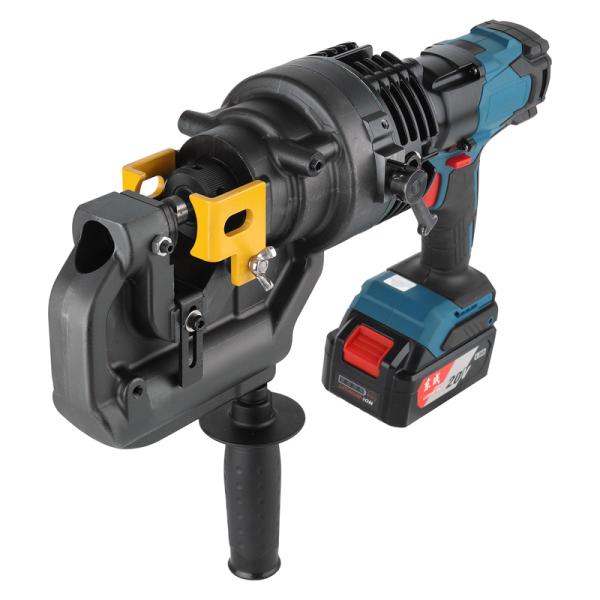

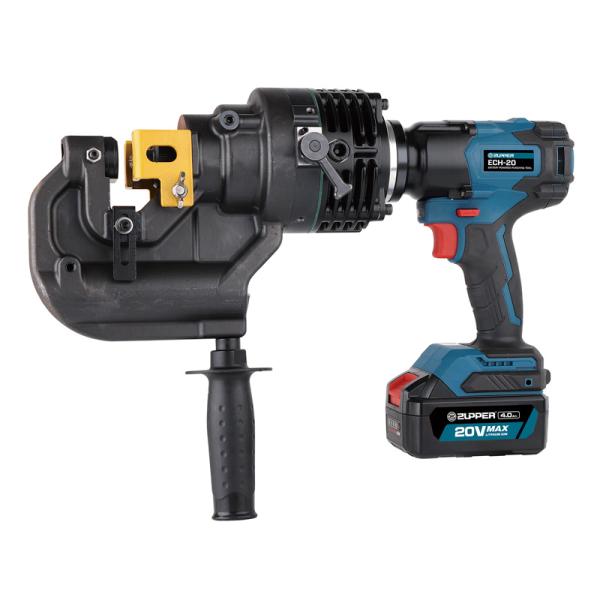

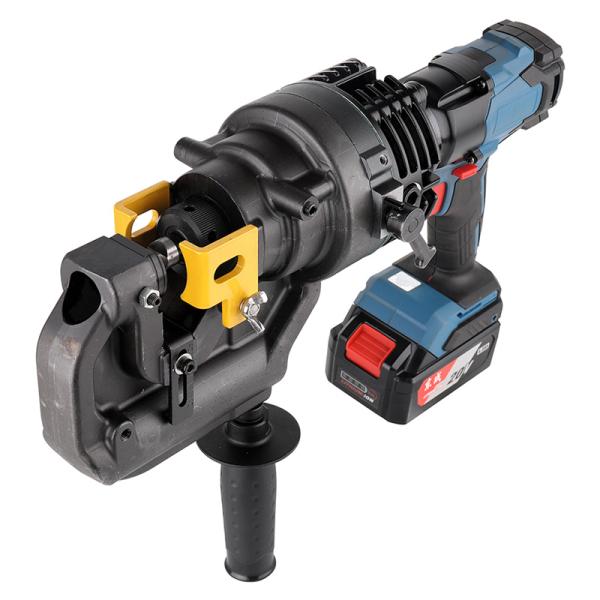

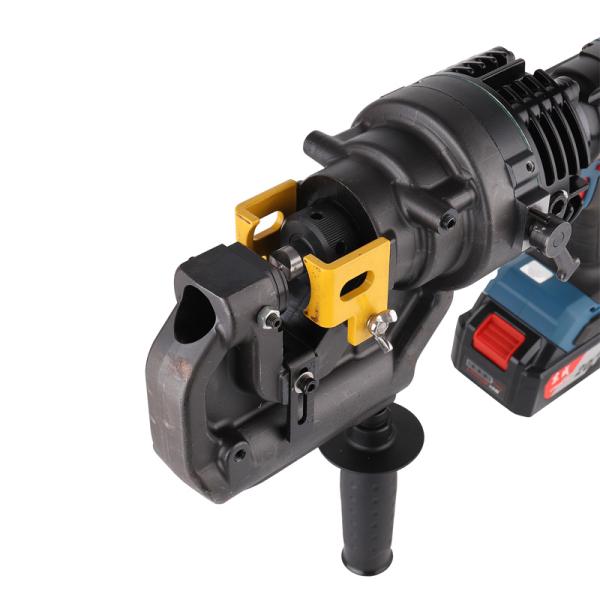

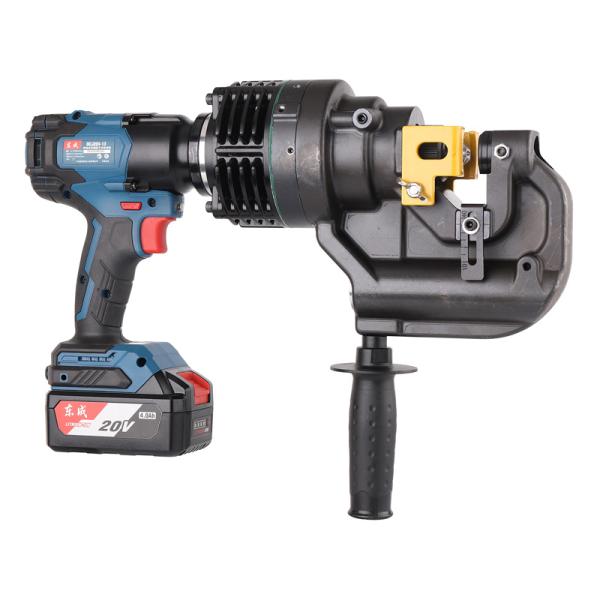

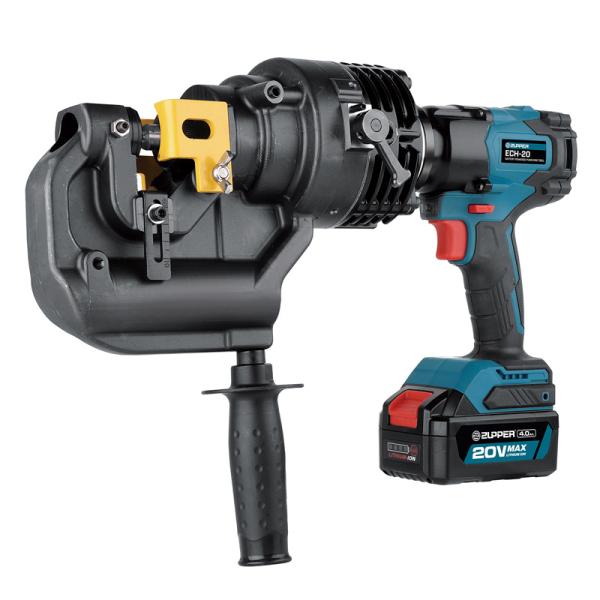

BATTERY POWERED PUNCHING TOOL
ECH-20
● Spark free punch of steel flat,steel angle,U-steel,copper bar etc.
● Lightweight and portable design for outdoor work.
● High performance brushless motor,runs cooler and more efficiently.
● Alternate reciprocating valve,suits for long-term continuous working.
● Built-in stroke control device,the piston returns automatically when finish punching, it makes the operation easier.
● Replaceable high hardness alloy punch dies suit for different punching shape.
● The hand-held part and tool body can be rotated 360° with 4×90° damping rotator, which is suitable for narrow spaces.
● A set up mesh protective baffle to reduce the risk of cutting off fragments flying out and cause injured.
| Punching Shape: | Round/sulciform |
| Max Punching Dia: | φ20mm |
| Max Thickness of Sheet: | 8mm |
| Max Depth of Throat: | 40mm |
| Rated Stroke: | 15mm |
| Rated Voltage: | DC20V |
| Tool Size: | 410×128×313mm |
| Weight: | 11.2kgs(with handle and 4.0Ah battery) |
| Accessories | |
| Battery: | 2pcs |
| Charger: | 1pc |
| Hex wrench: | 1pc 3mm and 1pc 4mm |
| Round punch dies: | φ6.5/9/13/17/20.5mm |
| Wrench: | 1pc 10mm |
| Disassembly wrench: | 1pc |
| Handle: | 1pc |
