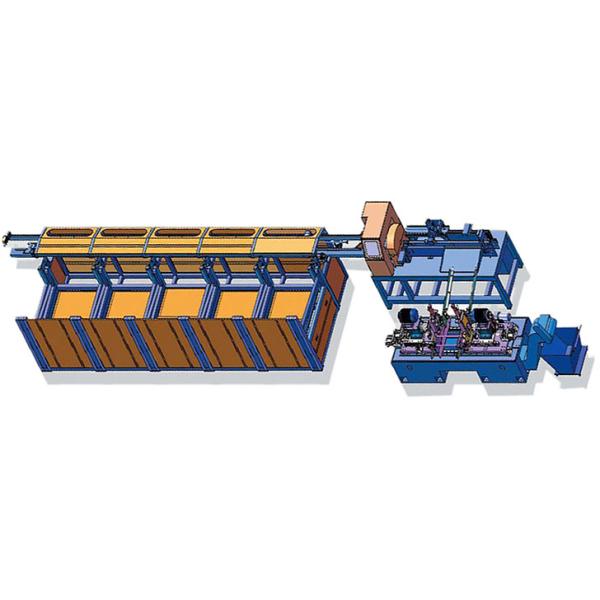

Automatic Pipe Cutting Chamfering Line

CJ-60CNC tube cutting and chamfering machine, the most advanced in the RC series, handles tubes up to 60mm in diameter. Ideal for steel tube processing, it starts with loading and precisely cutting tubes to length, followed by chamfering for safe handling and assembly. This versatile machine also performs tasks like deep beveling for welding and creating radius cuts or grooves, streamlining the process while reducing setup time, labor, and extra work-in-process, thereby cutting overall production costs.

Advantages:
1. Blade life span of 5W-20W cuts, diameter 110-145 (can be sharpened several times)
2. Processing range 15-60, wall thickness 0.5mm-3.5mm,
3. Cutting length 20mm-600mm (±0.15mm)
4. Cycle time ≤5s/piece (for lengths within 300mm, wall thickness within 2mm)
5. Servo motor feed, stable cutting ±0.15
6. Secondary cutting feature, no need for separate processing of end pieces
7. Short material dragging device, ensuring stable cutting length.
8. Uses a lifting device for loading, reducing pipe collisions and damage.

Pipe Cutting Machine:

1. Cutting diameter: 20mm-60mm

2. Cutting tube wall thickness: ≤3.5mm

3. Cutting length: 30mm-600mm

4. Cutting accuracy: ±0.15mm

5. Cutting blade specifications: 110mm-145mm

6. Cutting blade life: 40,000-200,000 knives (can be re-sharpened)

7. Tail material length: 30mm (the program can set the secondary cutting function)

Chamfering Machine:

1.Chamfer diameter:  20mm-∅ 60mm

2. Chamfer length: 200mm-600mm

3.Chamfer length tolerance: ±0.03

4. Chamfer end face runout: ±0.03

5. Length measurement resolution: 0.001mm

Power:

1. Cut off spindle motor power: 3.0KW

2. Cutting off spindle speed: 500rpm-700rpm

3. Cut off the spindle servo motor: 2.0KW

4. Chamfering spindle motor power: 3.0KW

5. Chamfering servo motor power: 1.5KW
