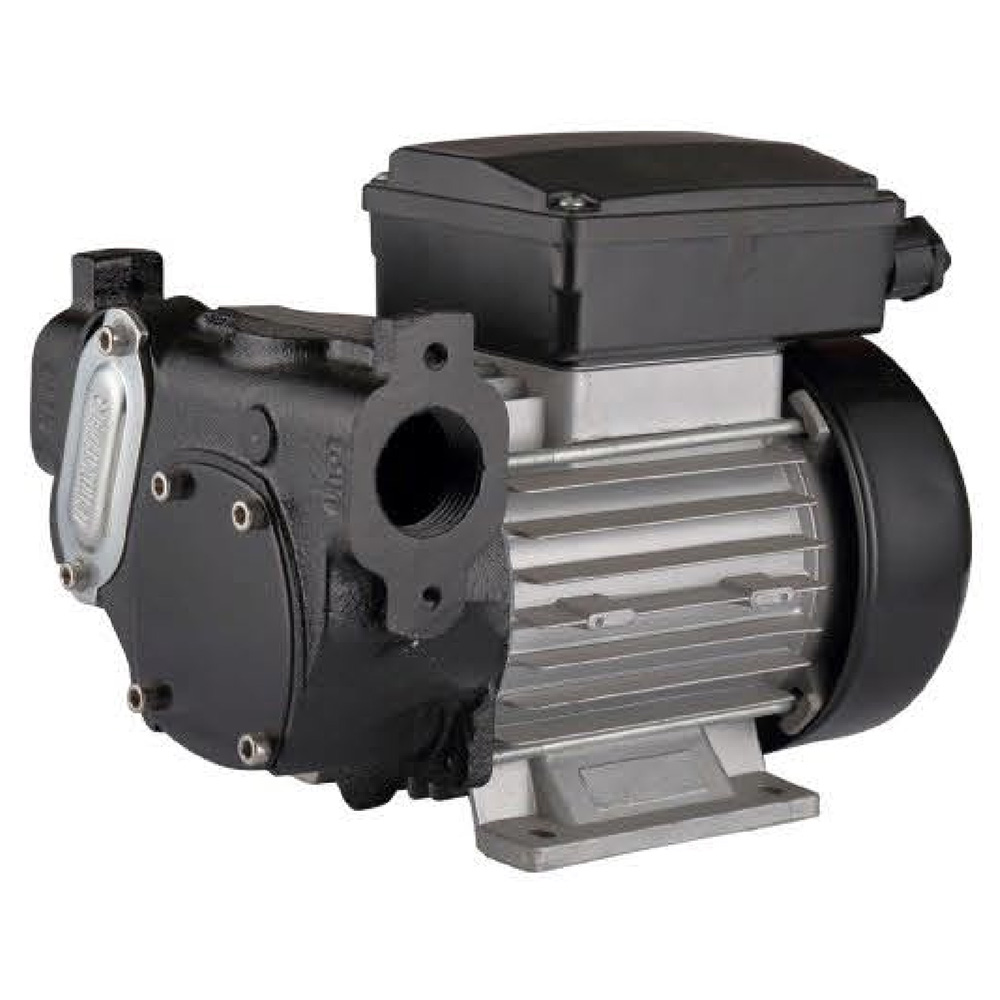

AC Diesel Fuel Transfer Pumps

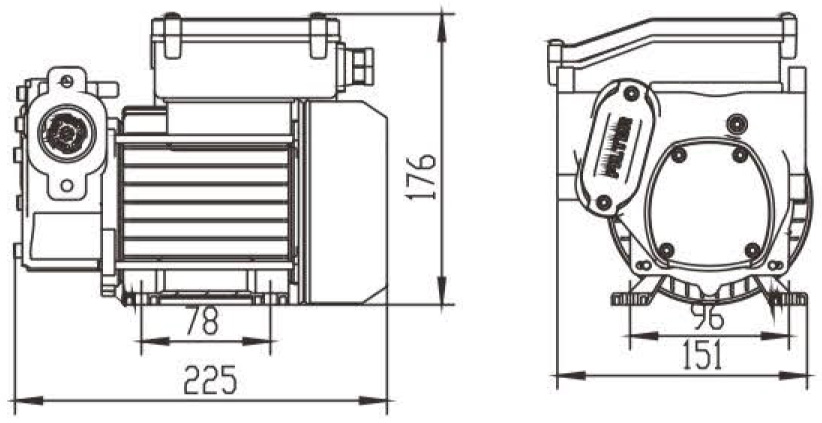

DYB-56,DYB-72
AC DIESEL PUMP
These self-priming rotary vane pumps feature amechanical seal that guarantees constant reliability, even in low temperatures. Compact, safe and dependable, they can be used for equipping fuel pumps and stationary fuel-transfer installations.
| DYB-56 | DYB-72 |
| · 56L/MIN | · 72L/MIN |
| · 2800RPM | · 2800RPM |
| · 1" BSP | · 1" BSP |
| · 370W | · 550W |
| · Pressure: 2Bar | · Pressure: 2Bar |
| · Suction 3M | · Suction 3M |
DANGER
ONLY FOR USE WITH DIESEL FUEL
DO NOT USE FOR/WITH
■ GASOLINE(PETROL)
■ SOLVENTS WITH FLASH POINT<55℃
| FEATURES | |
| · Cast-iron pump casing, treated against corrosion and paint-finished. | · In-built 100-micron filter, easily accessible for cleaning. |
| · Vane pump with sintered steel rotor and acetalic resin blades. | · Induction motor with aluminium casing. |
| · Mechanical seal. | · Grade of protection: IP 55. |
| · Bypass valve built into pump casing. | · Continuous running. |
