XINJIE Transparent Green PVC Hose
FY-W-016A

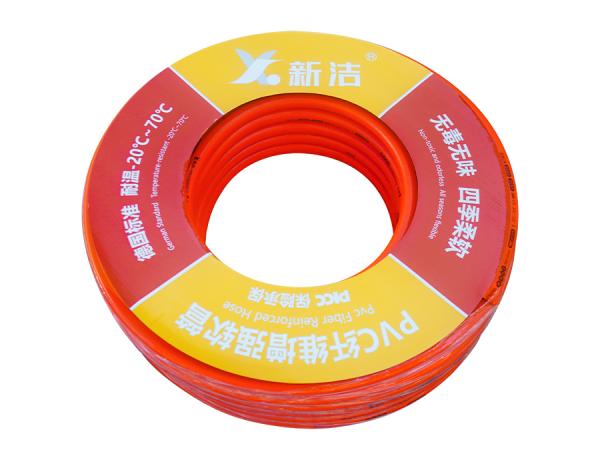

XINJIE Transparent Orange PVC Fiber-reinforced Hose
German standard manufacturing process
PICC underwriting, with complete pipe diameter and dimensions
Has high pressure resistance, high and low temperature resistance
Non toxic, odorless, and soft throughout the year
Can meet the needs of general industry and daily life
Transportation of fluids such as water and gas used
| Model | Inner Diameter | Outer Diameter | Length | Weight | Working Pressure | Burst Pressure |
| mm | mm | m | kg | MPa/PSI | MPa/PSI | |
| FY-W-016A | 14 | 18 | 50 | 8 | 8 | 30 |
| FY-W-016B | 16 | 20 | 50 | 9 | 8 | 30 |
| FY-W-016C | 20 | 25 | 40 | 11 | 8 | 30 |
| FY-W-016D | 25 | 30 | 40 | 14 | 8 | 30 |
