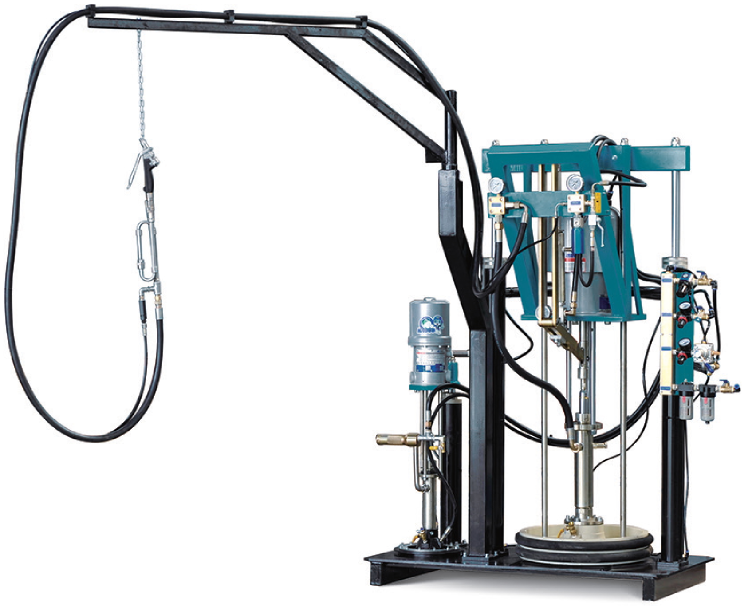

Two Pump Sealant Spreading Machine
LJST02A
Two Pump Sealant Spreading Machine is used to apply the second sealant of insulating glass
•Imported motor to improve equipment efficiency
•Imported sealant gun,stainless steel mixer
•High pressure protect device
•Anti-back flow control structure
•Mixed rate detector can control the rate of two kinds of sealant
Manual sealants sealing machine uses imported motor instead of cylinder to control the machine working. Sealing gun and mixer are used famous brand in China. The sealing machine always use the rotated table together to coat glass by workers.
Two-component Sealant Spreading Machine is composed of A and B glue pumps, pneumatic system, lifting mechanism, frame, etc.
| Working air pressure | >0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | >0.8MPa |
| Overall dimension | 1700*1260*1900mm |
| Weight | 600 kg |
