Single Head Chamfering Machine

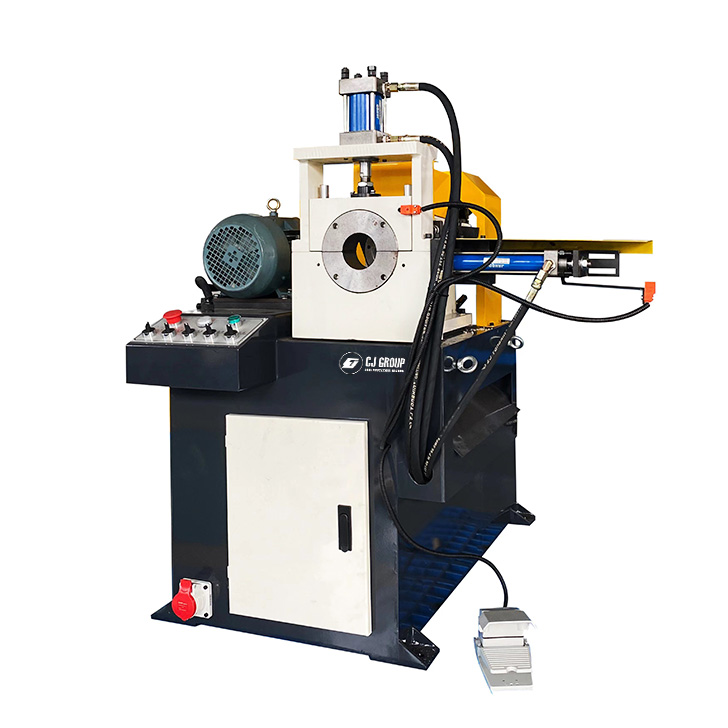

CJ-80 Tube Chamfering Machine
The CJ-80 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 80mm OD
Enhance your metalworking capabilities with the CJ-80 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 80mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects
Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing

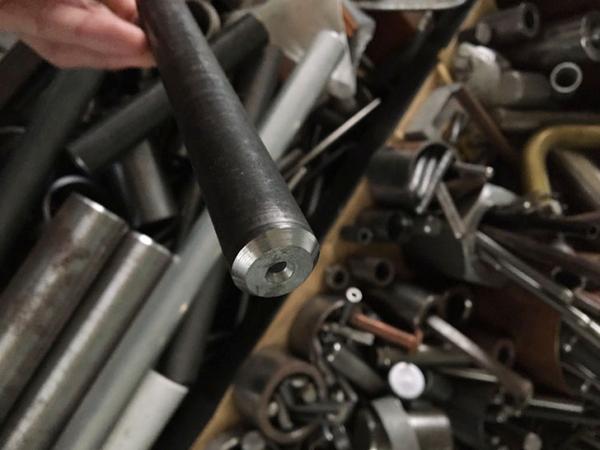

Precise Centering & Outer Chamfer and Drilling for Solid Bars"
Parameters
Model | CJ-80 |
Type | Pneumatic/Hydraulic Drive |
Pipe Diameter | 8-80mm |
Bar Diameter | 5-30mm |
Work Length | ≥30mm |
Work accuracy | ±0.1mm |
Work Speed | 3-5s/pcs |
Machine Motor | 1.5kw/2kw |
Work Pressure | MPA 6-8KG |
Weight | 300KG |
Dimension | 118*118*130cm |
Suit Material | Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc |
Shape Available | Round, Square, Hex, Bent Shape etc |
Workpiece Available | Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc |
