Provide compatible Stryker jack 0753-002-101 / 0753002101S for Replacement

Upgrade your hospital fleet with our direct-fit replacement hydraulic jack for Stryker stretchers (PN: 0753-002-101 / 0753002101S). Designed specifically for Stryker M-Series (1005, 1015, 1025) and Prime Series beds, this OEM-quality constant descent pump resolves common drifting down and leaking fluid issues.

Hospital maintenance engineers, biomedical equipment technicians (Biomeds), and independent service organizations (ISOs) understand that patient transport stretchers are the backbone of clinical operations. When a stretcher fails to elevate smoothy or begins drifting downward unexpectedly, patient safety and workflow efficiency are immediately compromised.

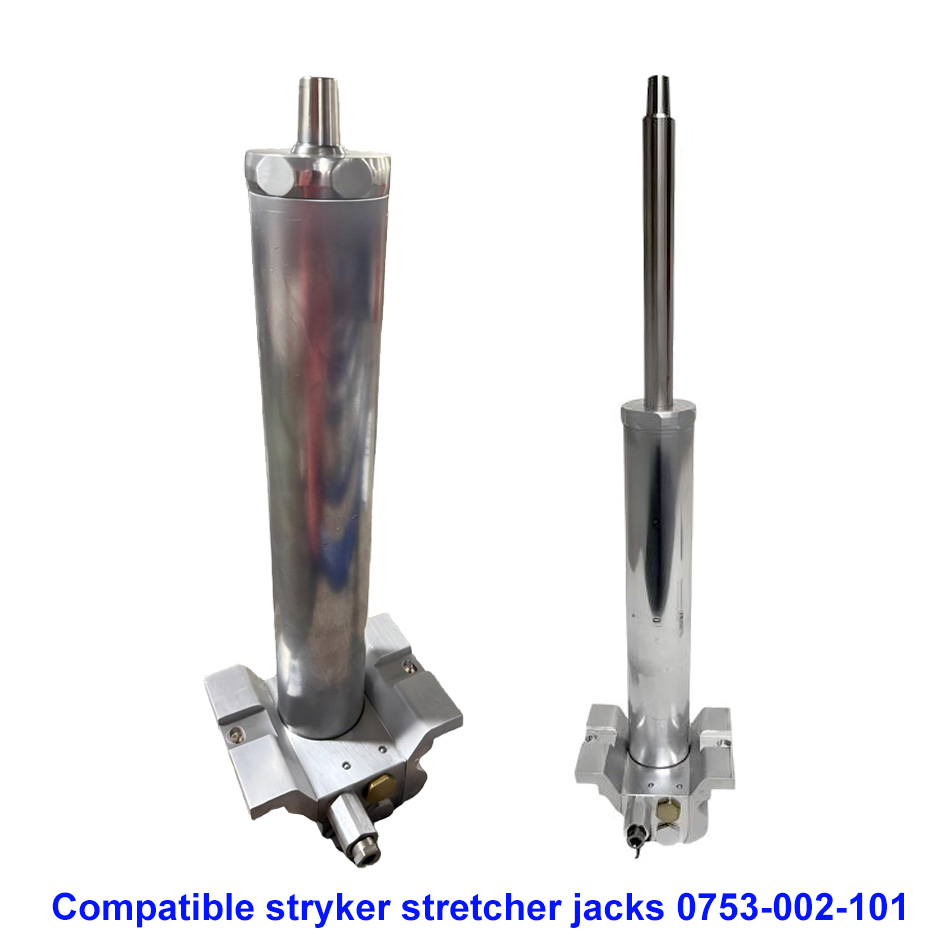

At the heart of many leading Stryker stretcher series is the stryker constant descent jack assembly—specifically part numbers 0753-002-101 and 0753002101S. Selecting a direct-fit, OEM-quality replacement hydraulic pump ensures your fleet stays fully operational without the high markup of original equipment manufacturers.

Understanding the Role of PN# 0753-002-101 / 0753002101S

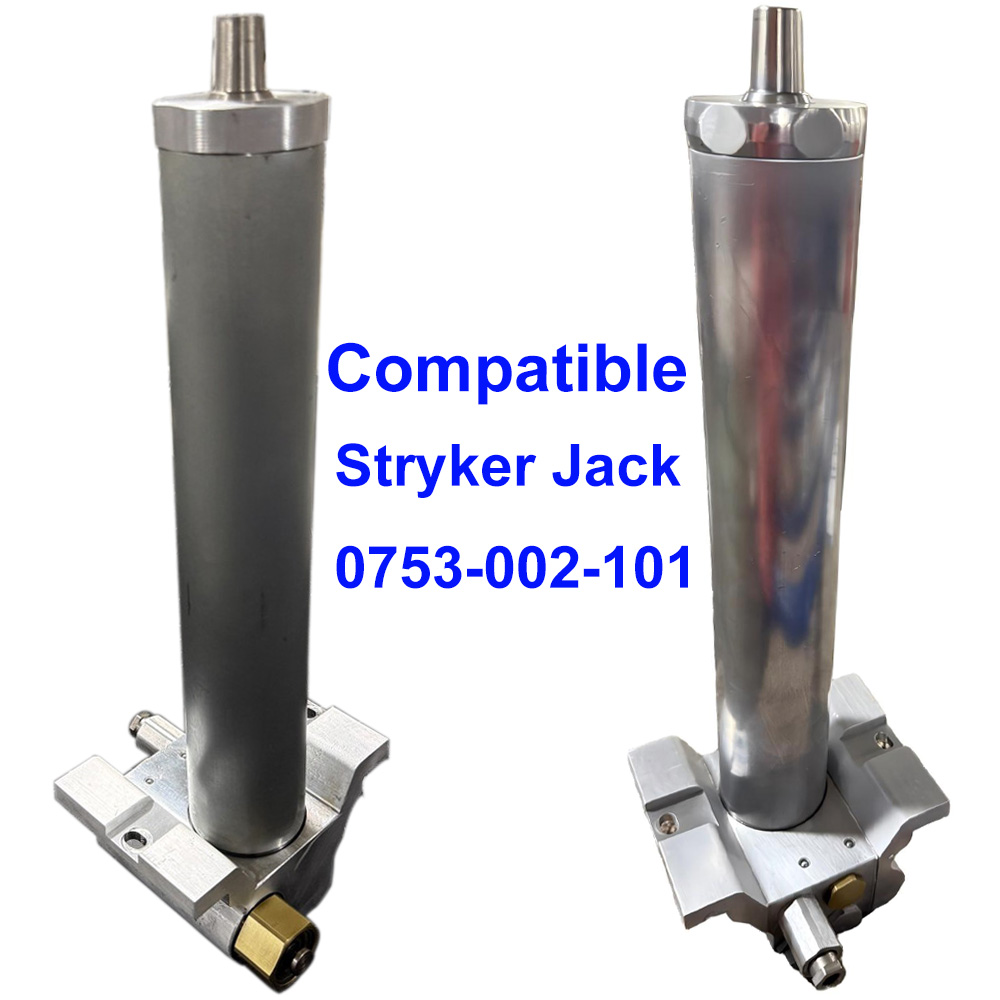

The Stryker constant descent jack assembly acts as the central hydraulic cylinder responsible for smooth height adjustments. The designation 0753-002-101 represents the primary engineering component number, while 0753002101S signifies the official service and spare part kit identifier. Both references point to the exact same hydraulic mechanism.

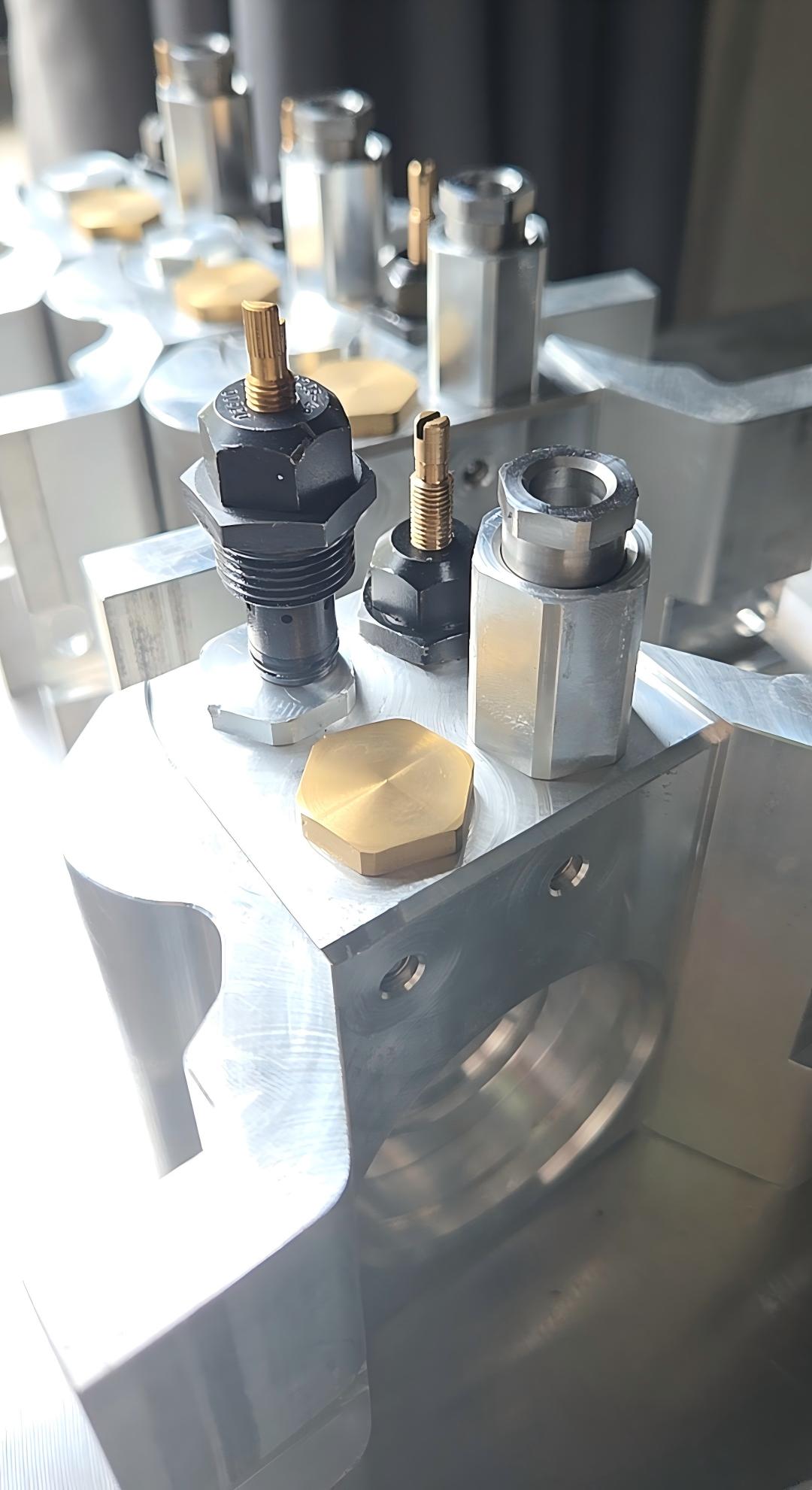

Equipped with an internal flow-control valve, this Stryker constant descent pump regulates lowering speed regardless of patient weight. This engineered balance prevents sudden drops during transport, protecting both clinical staff and patients from jarring movements.

Key Equipment Compatibility

This hydraulic cylinder replacement fits a wide range of flagship Stryker stretchers, including:

• Stryker M-Series Stretchers: Models 1005 (Standard), 1015 (Big Wheel), and 1025 (Zoom).

• Stryker Prime Series Stretchers: Models 1105, 1115, and 1125.

• Transport Stretchers: Model 1007 and select 1550 electric/hydraulic series units.

Common Signs Your Stretcher Hydraulic Pump Needs Replacement

Biomedical technicians frequently run into specific failure modes when diagnosing aging stretcher hydraulic pumps. Recognizing these signs early prevents unexpected downtime in the emergency room or post-anesthesia care unit (PACU):

• Hydraulic Jack Drifting Down: If the stretcher platform gradually lowers on its own while under load, internal seal degradation or valve bypass is likely occurring inside the hydraulic ram.

• Fluid Leaks: Visible hydraulic oil leaking from the chrome piston rod seal indicates seal pack failure, requiring immediate repair or full unit replacement.

• Loss of Lift Resistance: Difficulty pumping the bed up or an unusually soft foot pedal response points to fluid pressure loss or air entrapped in the closed-loop system.

• Erratic Lowering Speeds: Irregular or jerky descent signals that the internal constant descent valve is clogged or worn out.

When these issues arise, installing a factory-calibrated aftermarket stryker hydraulic jack is often more cost-effective and dependable than attempting a tedious field rebuild with temporary seal kits.

Key Advantages of High-Performance Aftermarket Replacement Units

• Choosing a direct-fit aftermarket Stryker stretcher hydraulic pump offers significant purchasing and operational advantages for healthcare providers and medical equipment distributors.

• OEM-Spec Performance & Dimensions: Manufactured to exact factory tolerances, eliminating the need for bracket modification or custom pedal linkages.

• Hardened Chrome Piston Rod: Built with heavy-duty chrome plating that resists scratching, pitting, and corrosion from harsh hospital-grade disinfectants.

• Precision Constant Descent Control: Factory-tested internal metering valves guarantee consistent, smooth lowering speeds under full patient weight capacity.

• Cost Savings for B2B Buyers: Delivers identical lifting performance and reliability at a fraction of OEM retail list prices, making it ideal for bulk fleet refurbishments.

Maintaining an active inventory of high-demand medical cart and stretcher replacement parts keeps facility equipment ready for critical care. Whether you are searching for single replacement stryker hydraulic pumps or bulk supply options for refurbishment contracts, opting for direct-fit 0753002101S assemblies ensures long-term performance, safety, and substantial cost reduction.

For more information or want to purchase the Stryker Jacks 0753-002-101 / 0753002101S, Please contact us freely.
