Polypropylene nonwoven fabrics slitter rewinder

Polypropylene nonwoven fabrics slitter rewinder is one of our leading model for different nonwoven fabrics slitting reiwnding.

hmYeoOEIoXs

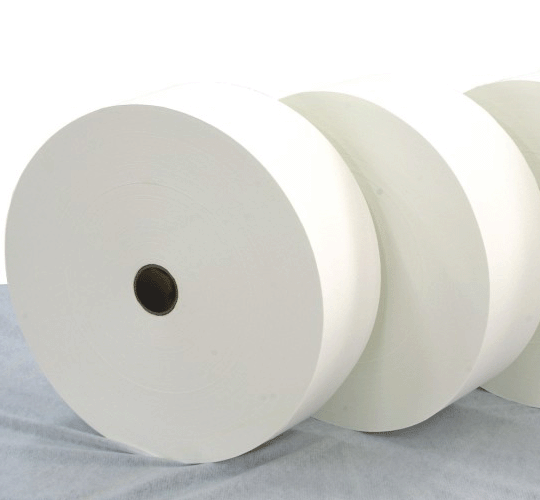

Polypropylene nonwoven fabrics slitter rewinder is special designed to slit rewind the jumbo roll of polypropylene nonwoven(pp non woven) into small width roll.

The PP nonwoven fabrics are cater for nonwoven bag making,it is ECO friendly product,

The model are up to width different,we accept different modle at 1300mm,1600mm,1800mm,2500mm,3500mm etc.

The model adopts dual-shaft rewinding by blade cutting method,the operation procedure is very simple.it is very ideal for pp nonwoven fabrics 2^nd converting purpose.

It results very smooth and neat edge cutting,the surface appears very glossy.

Main parameters:

Material: polypropylene nonwoven

Material width 1300/1600/1800/2500/3500mm

Material ID 3inch

Material max OD 1200mm

Baby roll width 50mm to max

Baby roll ID 2/3inch

Baby roll OD max 800mm

Speed 0-300m/min

Brake system magnetic powder clutch

Power 3.7kw

Voltage 220/380/415/450v

Frequency 50/60hz

Note:The different width and specification are acceptable for customized model.
