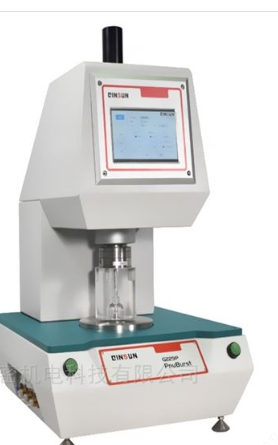

Pneumatic fabric dilatometer
Main Purpose
Primarily used to test the bursting strength and bursting expansion of knitted fabrics, woven fabrics, nonwoven fabrics, laminated fabrics, and other manufactured fabrics under standard conditions or in a wet state.
Compliance Standards
- GB/T 7742.1-2005
- FZ/T 60019
- FZ/T 01030
- ISO 13938.1
- ASTM D 3786
- JIS L1018.6.17
Key Features
- Strong after-sales service team
- Timely and efficient problem resolution for customer peace of mind
- Complete spare parts inventory to avoid long waiting times
- Regular updates to meet the latest industry standards
Main Technical Parameters
| Bursting Strength Range | 0 ~ 3000 kPa |
| Bursting Expansion Range | Typically several tens of millimeters |
| Test Area | Common areas: 50 cm² (Ø79.8 mm), 100 cm² (Ø112.8 mm) Customizable based on standards and testing requirements |
| Sample Clamping | Pneumatic clamping system |
| Bursting Time | Typically 20 ± 5 seconds (adjustable) |
| Accuracy | ±2% of full scale ±1 mm displacement |
