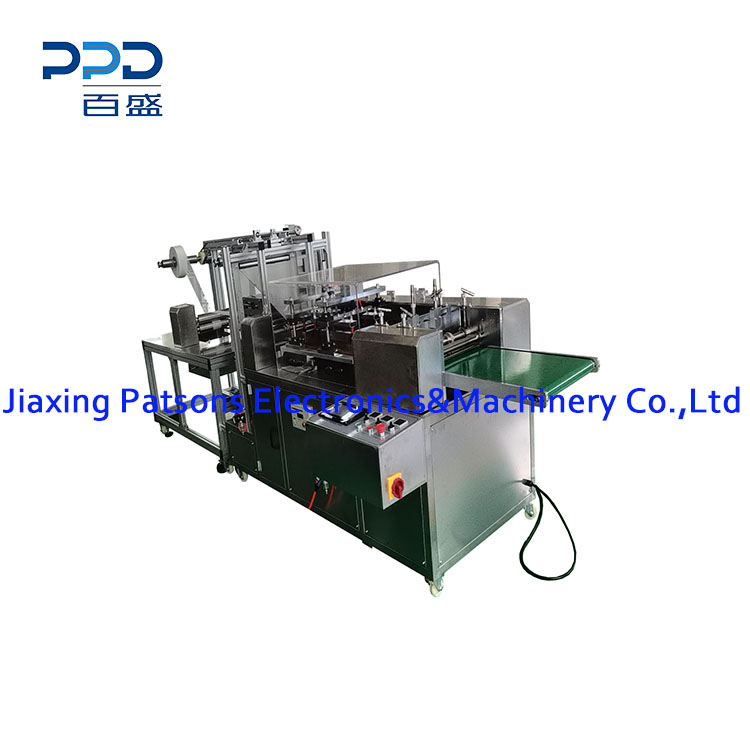

Fully Auto Paraffin Gauze Pad Packaging Machine

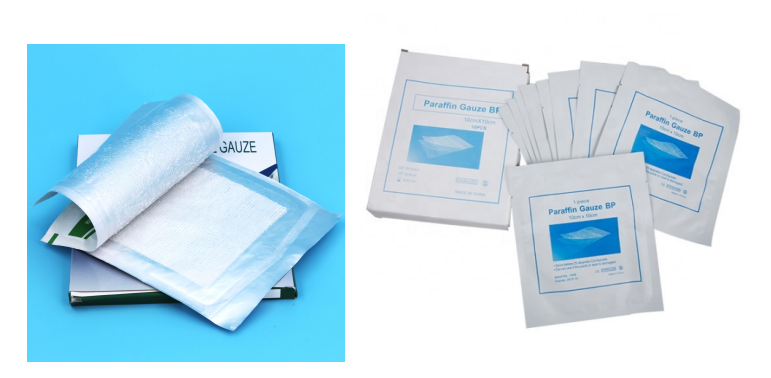

Fully auto paraffin gauze pad packaging machine is use to gauze cut, immersion, up and down paper, slicing and automatic packaging.

Features:
1. Machine is based on advanced servo technology, PLC programmable controller intelligently controls the operation of the whole machine.
3. Different packing materials can be choose: paper+film, paper+paper etc
3. Automatic feeding,automatic cutting,automatic immersion,automatic packaging,high efficient.

Main Data:

Name:Automatic Paraffin Gauze Pad Packaging Machine

Model: PPD-PGPP50

Gauze sheet specifications: 100x100mm or as customized size.

Packing bag specification: 150x160mm or as customized size.

Packaging film specifications: diameter ≤ 350 mm, width 150 mm, inner diameter of paper core 76.2mm

Applicable raw materials: coiled, 20-40g/㎡ gauze roll

Gauze roll specifications: diameter ≤600mm, width 100 mm

Coiled paper specifications: diameter ≤400mm, width 130 mm

Inner diameter of raw paper core: Φ 76.2mm (=3")

Speed：30-50pc/min

Total power: 220v, 50hz, 5 kw
