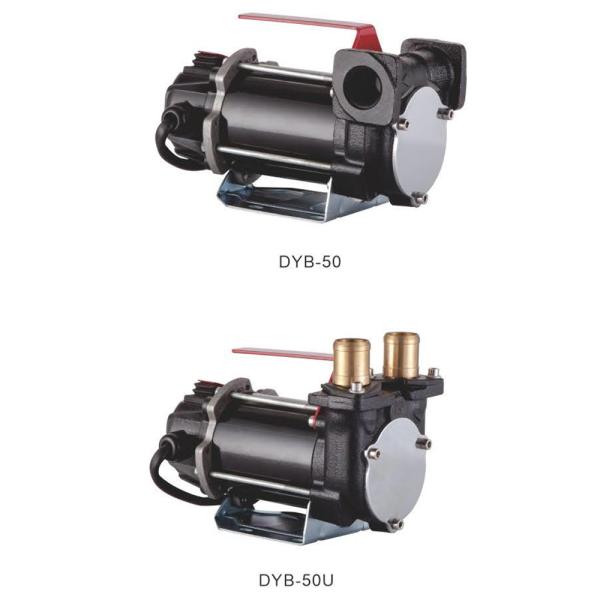

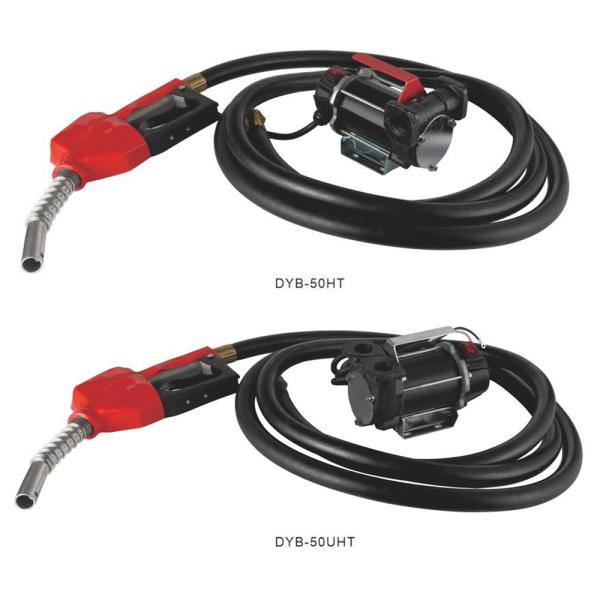

DC Fuel Transfer Pump

SPECIFICATION

Electric self-priming compact portable rotary vane pump.

Built-in bypass valve design for safe and dependable fuel delivery.

Available to equip with fuel transfer accessories: Flow meter,

Nozzle and stationary installations.

MATERIALS

· BODY: CAST IRON

· ROTOR: SINTERED STEEL

· VANES: ACETAL RESIN

· SEAL: NBR

· SHAFT: STEEL

· MOTOR: CARBON BRUSH PERMANENT MAGNET

· DUTY CYCLE: 30MIN

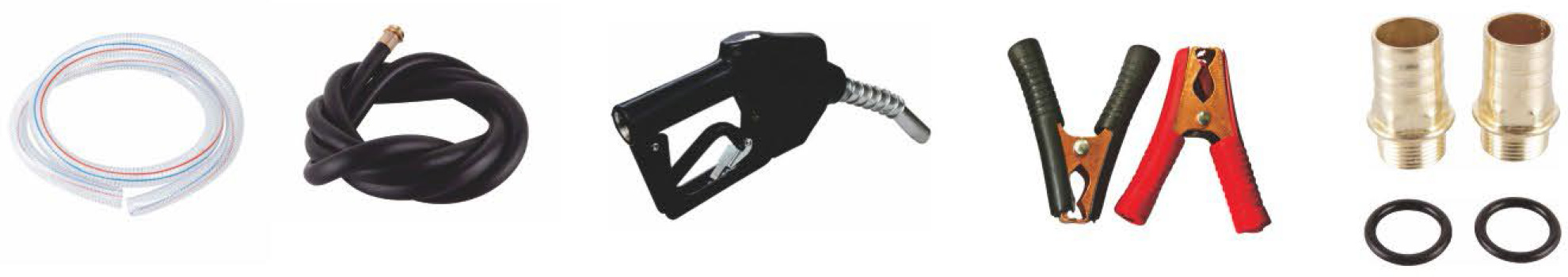

· INLET HOSE: 2M PVC

· OUTLET HOSE: 4M NBR

· NOZZLE: AUTOMATIC/MANUAL

TECHNICAL DATA
MODEL	FLUIDS TYPE	FLOW-RATE    L/MIN	VOLTAGE    VOLT	POWER    WATT	SPEED    RPM	THREADED PORTS    BSP	PRESSURE    BAR	Suction    M
DYB-50HT-12V		50	12	300	3200	3/4"	1.3	3
DYB-50HT-24V		50	24	300	3200	3/4"	1.3	3
DYB-50UHT-12V		50	12	300	3200	3/4"	1.3	3
DYB-50UHT-24V		50	24	300	3200	3/4"	1.3	3
