Plastic RV-01 / RV-02 High Pressure Vortex Air Pump Relief Valve
Product descriptions from the supplier
Pressure Relief Valve
Product Description
Plastic RV-01 / RV-02 High Pressure Vortex Air Pump Relief Valve

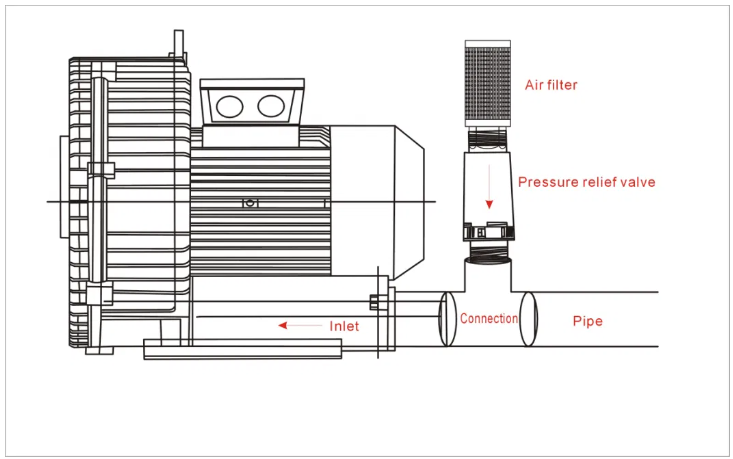

Air Blower pressure relief valve is installed on the inlet & outlet. When the pressure exceeds the pressure value set by the blower, or the pressure fluctuation amplitude in the blower exceeds the set value, the pressure relief valve will open all within 0.2 seconds to release the excess pressure through the air flow, then the blower can be avoid to be overload. When the blower pressure is reduced to a safe value, the valve will slowly closed and will not cause the second pressure fluctuation. The outside material of the pressure relief valve is plastic and internal is steel mesh, acid and wet corrosion.
| color | black |
Application:
1. Used in ring blower and suitable both pressure/vacuum use.
2. Static pressure setting easily adjustable.
3. Connect thread suitable for PT. PF and NPT-1 1/4”
Precaution:
1.Please keep away from grease or volatile oil/gas.
2.Confirm direction for pressure or vacuum use (see Arrow onthe valve).
3.Durable operation temperature: -10~120℃
4.Please do not disassemble the relief valve without professional engineers.
Plastic RV-01 / RV-02 Vortex Air Pump Relief Valve
