Wood Pellet Mill: Sustainable Energy Production from Biomass Waste

What is a Wood Pellet Mill?

A wood pellet mill compresses sawdust, wood chips, or agricultural residues into dense, cylindrical pellets used as biofuel for heating, power generation, or animal bedding.

Types of Wood Pellet Mills

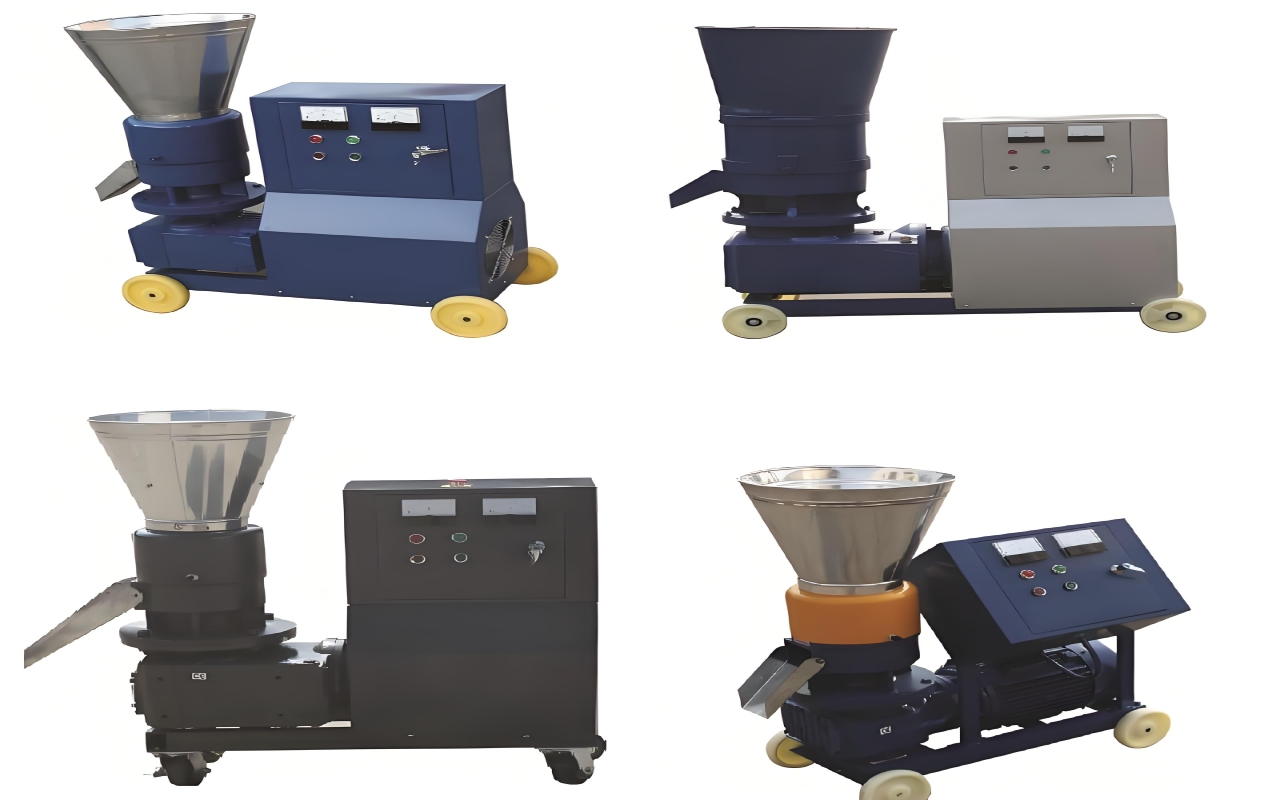

1. Flat Die Pellet Mills
   • Vertical design for small-scale production (50–500 kg/hour). Ideal for farms or workshops.
2. Ring Die Pellet Mills
   • Horizontal design with higher output (1–10 tons/hour) for industrial biomass plants.
3. Diesel-Powered Mills
   • Mobile units for remote areas without electricity.
4. Electric Pellet Mills
   • Energy-efficient models with precise temperature control.

Key Advantages

• Waste Utilization: Converts forestry/agricultural waste into valuable fuel.
• Energy Density: Pellets have 4.8–5.5 kWh/kg, comparable to coal.
• Eco-Friendly: Low carbon emissions and renewable energy source.
• Cost Savings: Reduces reliance on fossil fuels.

Applications

• Residential Heating: Pellet stoves and boilers.
• Industrial Power: Co-firing in coal plants.
• Animal Bedding: Absorbent, dust-free pellets for livestock.
• Export Commodity: High-demand biofuel in Europe and Asia.

Operation Workflow

1. Raw Material Preparation: Dry biomass to 10–15% moisture content.
2. Grinding: Reduce feedstock to 3–5mm particles.
3. Pelletizing: Compress material through die holes under high pressure (100–300 bar).
4. Cooling & Packaging: Stabilize pellets and bag for storage/transport.

Innovations

• Binder-Free Technology: Uses lignin in wood as a natural adhesive.
• Smart Sensors: Monitor temperature and pressure to prevent die blockage.
