PET Blow Molding Machine: Revolutionizing Beverage and Packaging Industries with Precision Bottle Production

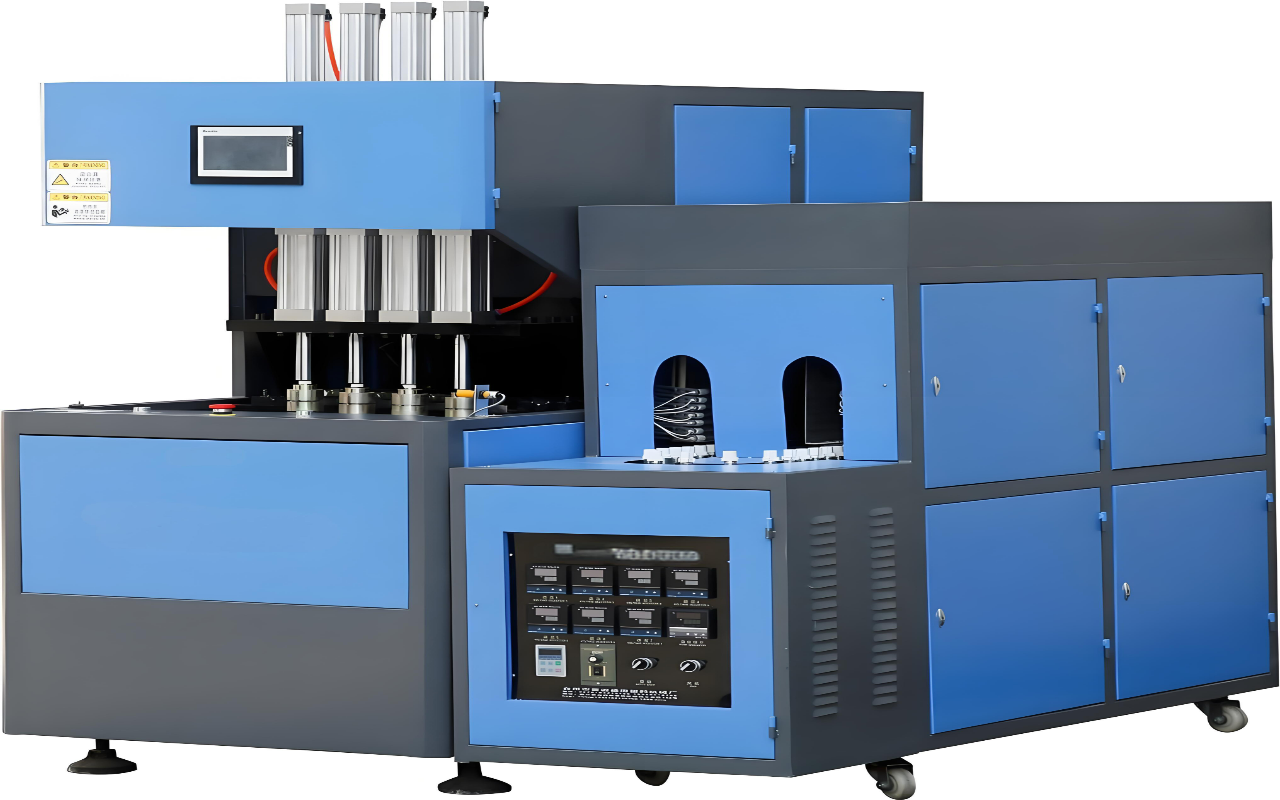

What is a PET Blow Molding Machine?

A PET blow molding machine is a specialized system designed to manufacture polyethylene terephthalate (PET) bottles through stretch blow molding. These machines transform preforms—injection-molded PET tubes—into lightweight, durable bottles for beverages, cosmetics, and pharmaceuticals.

Types of PET Blow Molding Machines

1. Single-Stage Machines
   • Integrate preform injection and blow molding in one cycle. Ideal for small batches or custom designs (e.g., promotional bottles).
2. Two-Stage Machines
   • Preforms are produced separately and reheated before blowing. Achieves speeds of 2,000–4,000 bottles/hour for mass production (e.g., water and soda bottles).
3. Hybrid Machines
   • Combine hydraulic and electric systems for energy efficiency and precision.

Key Functions and Advantages

• High-Speed Production: Capable of producing over 50,000 bottles daily.
• Material Efficiency: Reduces PET usage by 10–20% through lightweighting.
• Precision Control: Ensures uniform wall thickness and leak-proof seals.
• Sustainability: Compatible with 100% recycled PET (rPET) for eco-friendly packaging.

Applications

• Beverages: Water, juice, and carbonated drink bottles.
• Personal Care: Shampoo, lotion, and disinfectant containers.
• Pharmaceuticals: Medicine bottles and sterile solution packaging.

Operation Steps

1. Preform Heating: Infrared lamps uniformly heat preforms to 100–120°C.
2. Stretch Blowing: A stretch rod elongates the preform vertically, while compressed air (25–40 bar) inflates it horizontally.
3. Cooling: Rapid cooling via water or air ensures dimensional stability.
4. Ejection & Inspection: Automated systems remove bottles and check for defects.

Innovations

• AI-Driven Quality Control: Cameras detect defects like uneven walls or air bubbles.
• Energy Recovery: Reuse heat from cooling systems to preheat preforms.
