Lathe Machining Center: The Pinnacle of Integrated Turning and Milling Technology
What is a Lathe Machining Center?

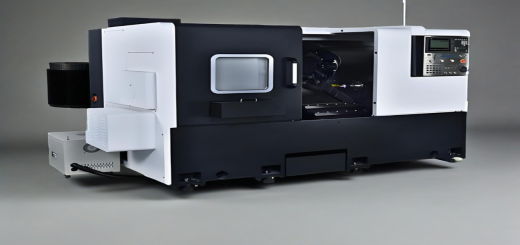

A Lathe Machining Center (LMC) combines CNC turning and milling operations in a single platform, enabling complete machining of complex parts without reclamping. These systems feature live tooling, C/Y-axes, and sub-spindles to perform drilling, tapping, and contouring while the workpiece rotates.
Types of Lathe Machining Centers
- Vertical LMCs
- Space-saving design for heavy parts (e.g., gears, flanges) with gravity-assisted chip evacuation.
- Horizontal LMCs
- Bar-fed systems for high-volume production of shafts and fittings.
- Multi-Tasking LMCs
- 7–9 axis configurations for simultaneous 5-axis milling and turning.
- Swiss-Type LMCs
- Guide bushings for ultra-precision medical/dental components.
Key Advantages
- Zero Setup Changeover: Complete parts in one clamping (e.g., mill hex flats while turning diameters).
- Precision: Maintains ±0.005mm concentricity between turned/milled features.
- Cycle Time Reduction: Cuts production steps by 60% vs. standalone machines.
- Material Savings: Near-net-shape machining reduces waste by 25%.
Applications
- Aerospace: Turbine shafts with airfoil slots.
- Medical: Bone screws with cross-drilled holes.
- Automotive: Transmission gears with splined bores.
Operation Workflow
- Raw Material Load: Bar feeder or robot loads stock into main spindle.
- Rough Turning: Remove bulk material at 800–1,500 RPM.
- Live Tooling Operations:
- Engage milling heads (3,000–12,000 RPM) for slots/holes.
- Sub-spindle transfers part for backside machining.
- In-Process Metrology: Probe verifies critical dimensions.
- Unloading: Conveyor removes finished parts.
