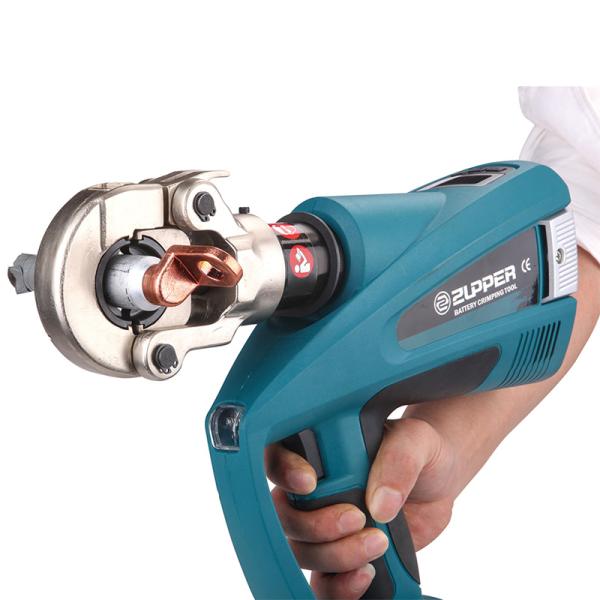

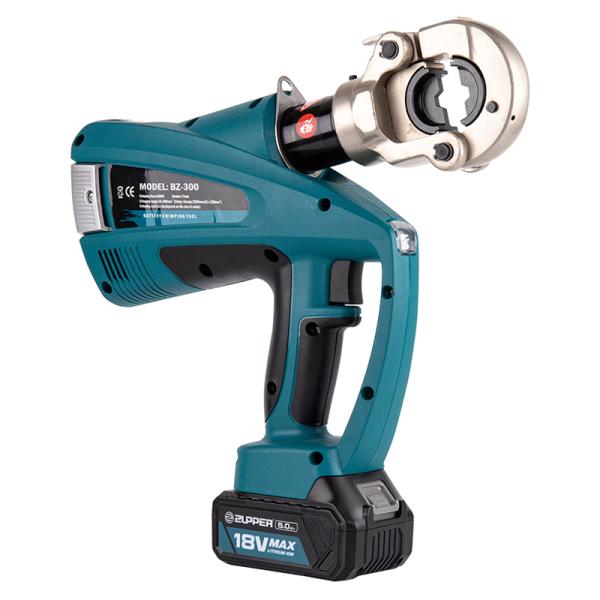

BATTERY POWERED CRIMPING TOOL
BZ-300
BZ series use RSW function, the tools deliver efficiency and reliability on
crimping work. All tools can be controled by one trigger.
| Rated pressure: | 60kN |
| Stroke: | 17mm |
| Oil capacity: | 115ml |
| Max crimping: | Cu 300mm²/Al 240mm² |
| Cycle time | 2.5~3.5s (CU 150 mm²) |
| Cycles/charger: | Approx.300 cycles (CU 150 mm²) |
| Voltage/capacity: | 18V/4.0Ah |
| Charging time: | Approx.80 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |

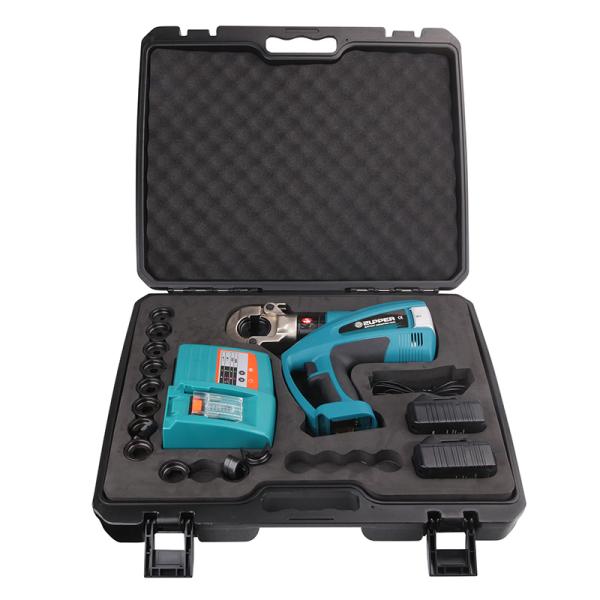

| Package: | Plastic box |
| Weight incl. battery: | 4.6kgs |
| ACCESSORIES | |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
SYSTEM UPGRADE, RETRACT STOP FOR POSITION CONTROL.
EFFICIENCY AND SAVE TIME ON EVERY JOB
1. Only 3~8S to finish one cycle crimp
2. LED light for low or no-light environment
3. The tool includes two 18V, 4.0Ah Li-ion batteries and one charger
4. It is actuated by motor and controlled by MCU, with two stage hydraulic system.

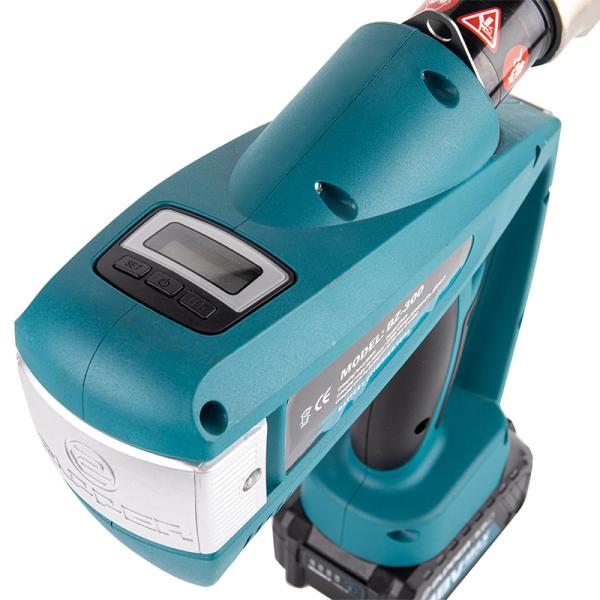

5. LCD data display can show crimping times,electricity quantity and maintenance reminding information
